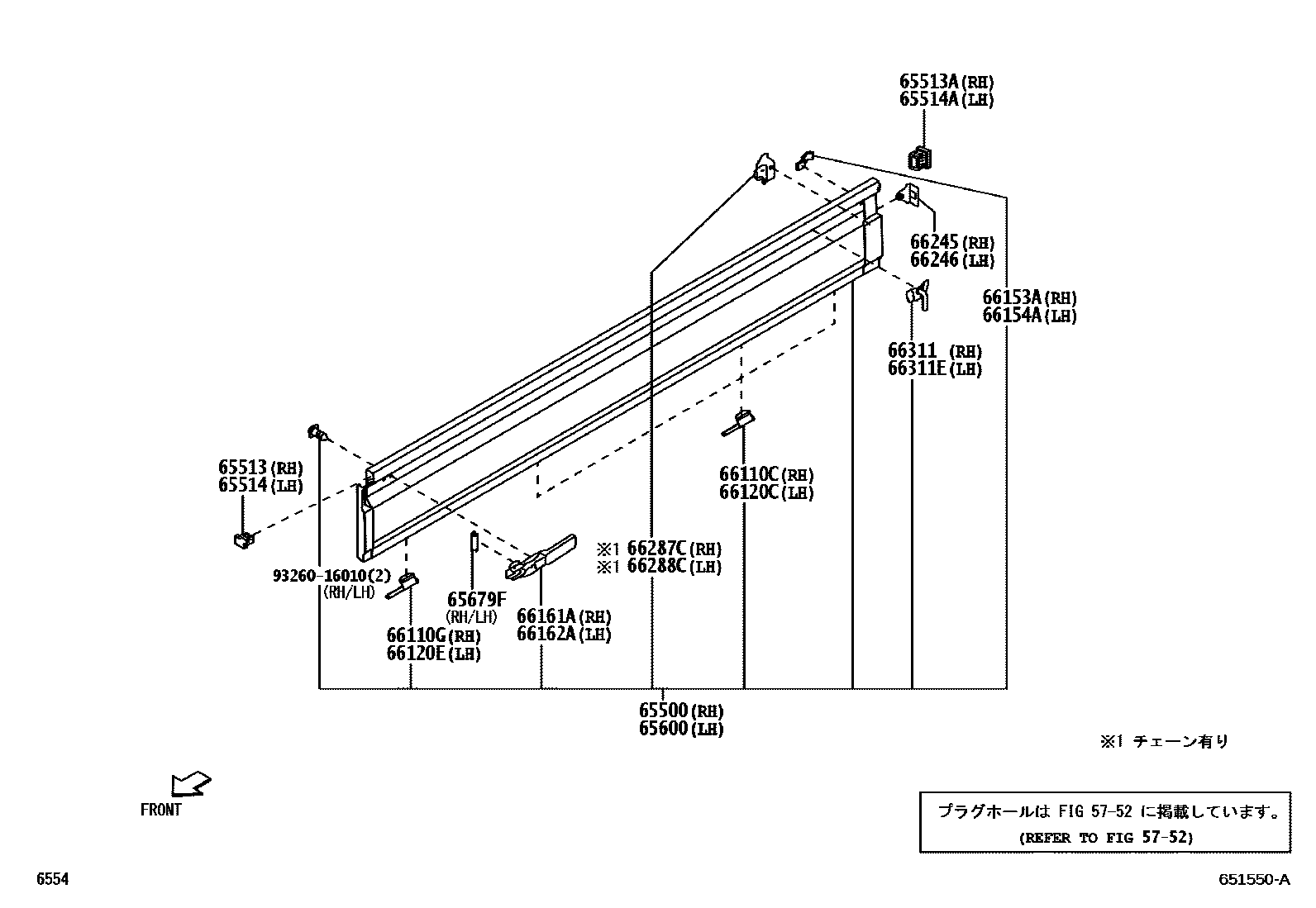

REAR BODY SIDE PANEL

5752

65500PANEL ASSY, REAR BODY SIDE, RH

main65001-B5270iS500,510..STD202112

main65001-B5280iS500,510..EXT202112

main65001-B5290iS500,510..STD202112

main65001-B5300iS500,510..EXT202112

65513LID, TOP RAIL, FRONT RH

main65513-B5040iS500,510202112

65513ALID, TOP RAIL, REAR RH

main65514-B5030iS500,510202112

65514LID, TOP RAIL, FRONT LH

main65514-B5030iS500,510202112

65514ALID, TOP RAIL, REAR LH

main65513-B5040iS500,510202112

65600PANEL ASSY, REAR BODY SIDE, LH

main65002-B5270iS500,510..STD202112

main65002-B5280iS500,510..EXT202112

main65002-B5290iS500,510..STD202112

main65002-B5300iS500,510..EXT202112

65679FPROTECTOR, SIDE GATE

main65679-B5050iS500,510202112

66110CHINGE ASSY, SIDE GATE, NO.1 RH

main66031-B5030iS500,510202112

66110GHINGE ASSY, SIDE GATE, NO.2 RH

main66031-B5030iS500,510202112

66120CHINGE ASSY, SIDE GATE, NO.1 LH

main66033-B5030iS500,510202112

66120EHINGE ASSY, SIDE GATE, NO.2 LH

main66033-B5030iS500,510202112

66153ALATCH, TAIL GATE FEMALE, RH

main66153-B5011iS500,510202112

66154ALATCH, TAIL GATE FEMALE, LH

main66153-B5011iS500,510202112

66161AHANDLE, SIDE GATE LATCH, RH

main66019-B5010iS500,510202112

main66019-B5020iS500,510202112

66162AHANDLE, SIDE GATE LATCH, LH

main66019-B5010iS500,510202112

main66019-B5020iS500,510202112

66245PROTECTOR, REAR BODY, NO.3 RH

main66183-B5010iS500,510202112-202310

sub66183-B5011

main66183-B5011iS500,510202311

66246PROTECTOR, REAR BODY, NO.3 LH

main66183-B5010iS500,510202112-202310

sub66183-B5011

main66183-B5011iS500,510202311

66287CBRACKET, TAIL GATE CHAIN, RH

main66287-B5070iS500,510..EXT202112

66288CBRACKET, TAIL GATE CHAIN, LH

main66288-B5050iS500,510..EXT202112

66311HOOK, ROPE

main66310-B5060iS500,510202112

66311EHOOK, ROPE

main66310-B5060iS500,510202112

9326016010

main93260-16010

23 parts on this diagram · 1 diagram in section
