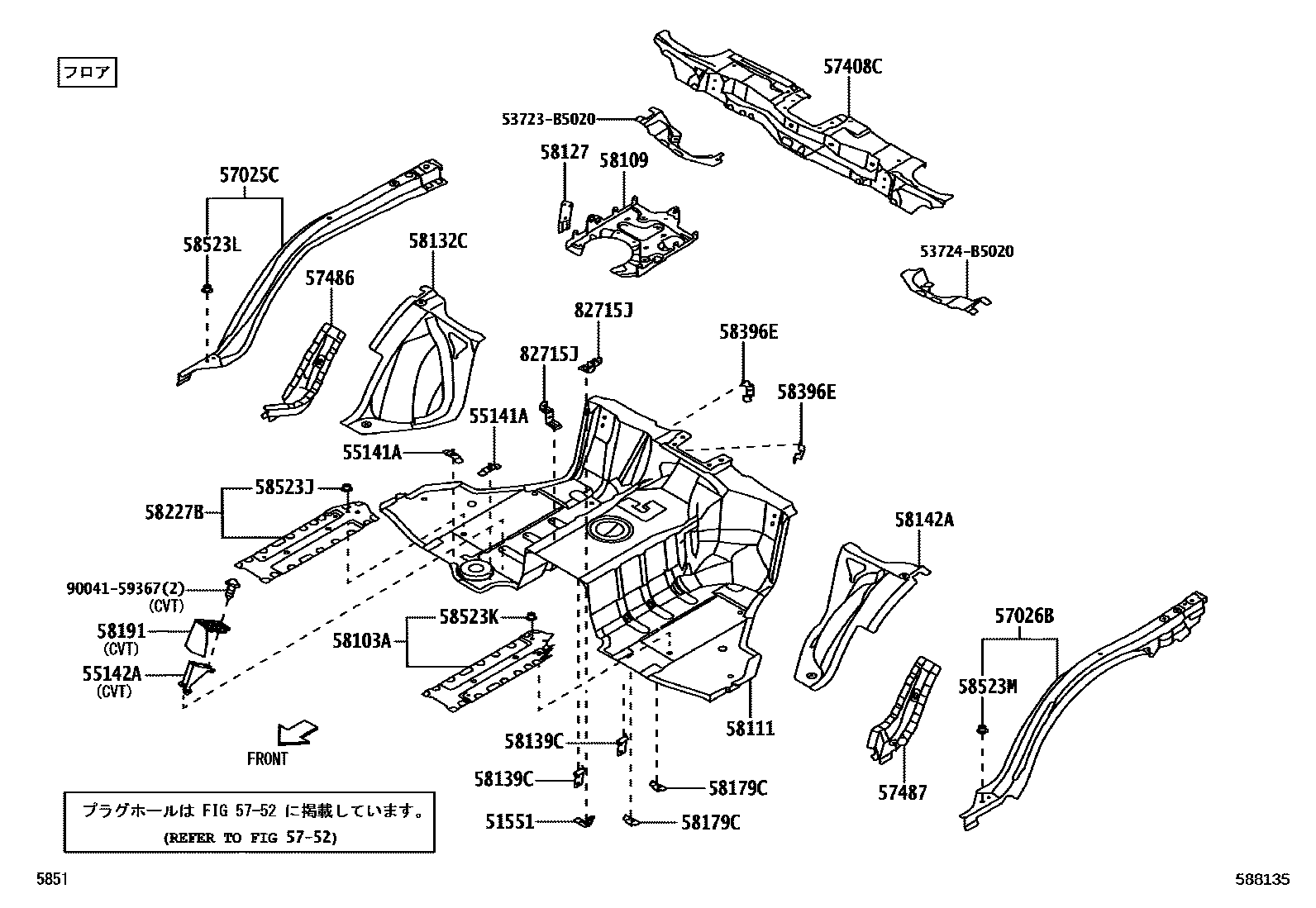

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

51551BRACKET, TUBE CLAMP, NO.1

main47381-B5050iS500,510¥280202112

55141ABRACKET, FOOT REST MOUNTING

main55141-B5010iS500,510¥190202112

55142ABRACKET, FOOT REST MOUNTING, NO.2

main55142-B5010iS500,510..CVT¥960202112

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-B5020iS500,510¥8,200202112

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-B5020iS500,510¥6,500202112

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main58136-B5010iS500,510¥6,500202112

57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-B5010iS500,510¥2,730202112

57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-B5010iS500,510¥2,730202112

5752

58103AREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH

main58103-B5030iS500,510¥2,730202112

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58193-B5020iS500,510¥3,820202112

58111PAN, FRONT FLOOR

main58111-B5100iS500,510¥13,600202112

58127PATCH, FRONT FLOOR PANEL

main58127-B5020iS500,510¥340202112

58132CAPRON, FRONT FLOOR SIDE, NO.1 RH

main58132-B5010iS500,510¥3,820202112

58139CBRACKET, HARNESS CLAMP

main58396-B5070iS500,510¥170202112

58142AAPRON, FRONT FLOOR SIDE, NO.1 LH

main58142-B5010iS500,510¥3,820202112

58179CBRACKET, CLAMP FLOOR

main47381-B5040iS500,510¥280202112

58191FOOTREST, FRONT FLOOR

main58191-B5020iS500,510..CVT¥1,420202112

58227BPLATE, FRONT FLOOR PANEL SIDE, RH

main58227-B5020iS500,510¥2,730202112

58396EBRACKET, WIRE HARNESS CLAMP

main58396-B5050iS500,510¥170202112

58523JHOOK, MALE, NO.1

main58523-87202iS500,510¥150202112

58523KHOOK, MALE, NO.2

main58523-87202iS500,510¥150202112

58523LHOOK, MALE, NO.3

main58523-87202iS500,510¥150202112

58523MHOOK, MALE, NO.4

main58523-87202iS500,510¥150202112

82715JBRACKET, WIRING HARNESS CLAMP

main58396-B5080iS500,510¥250202112

53723B5020BRACKET, BRAKE BOOSTER

main53723-B5020¥2,730

53724B5020BRACKET, CLAMP

main53724-B5020¥2,730

9004159367

main90041-59367¥140

28 parts on this diagram · 2 diagrams in section
