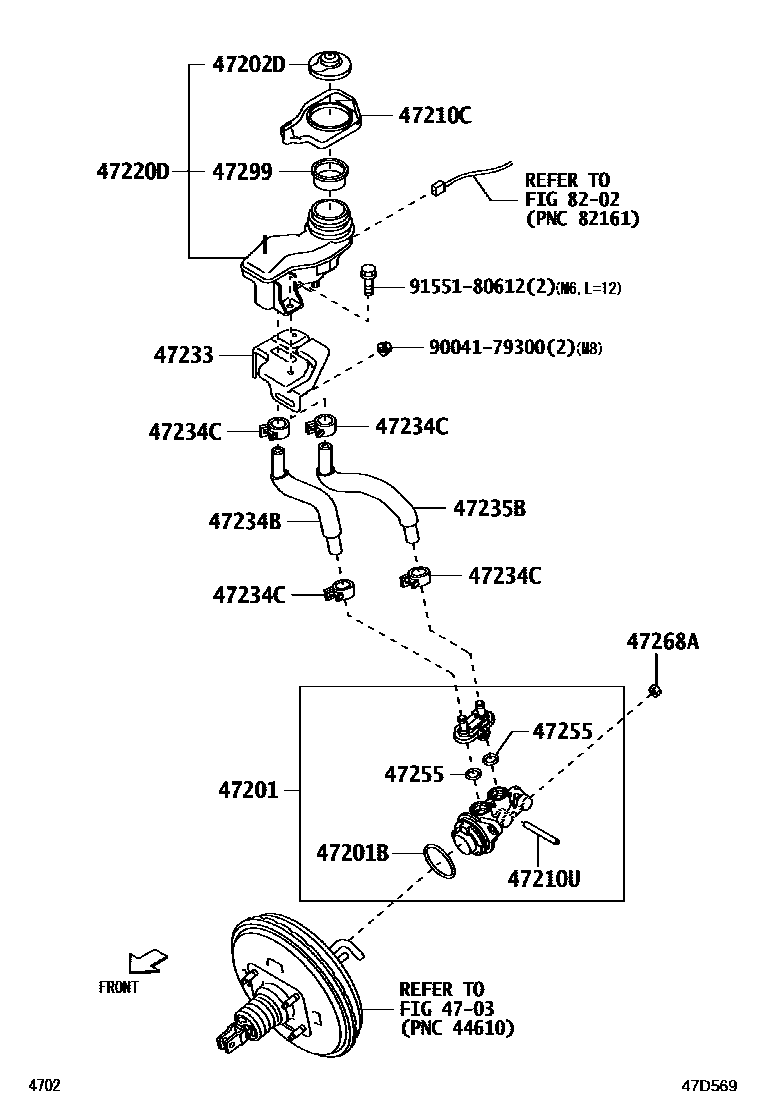

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-B5140iS500,510202112

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90043-01352iS500,510202112

47202DCAP, RESERVOIR(FOR MASTER CYLINDER RESERVOIR SET)

main47230-B5010iS500,510202112

47210CPLATE(FOR BRAKE MASTER CYLINDER PISTON STOP)

main11494-B5020iS500,510202112

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90042-43029iS500,510202112

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-B5050iS500,510202112

47233BRACKET, RESERVOIR

main47233-B5010iS500,510202112

47234BTUBE, RESERVOIR, NO.1

main47234-B5050iS500,510202112

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90044-67246iS500,510202112

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-B5030iS500,510202112

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-B2050iS500,510202112

47268ANUT, BRAKE MASTER CYLINDER

main90041-79124iS500,510202112

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-B2030iS500,510202112

8202

9004179300

main90041-79300

9155180612

main91551-80612

17 parts on this diagram · 1 diagram in section
