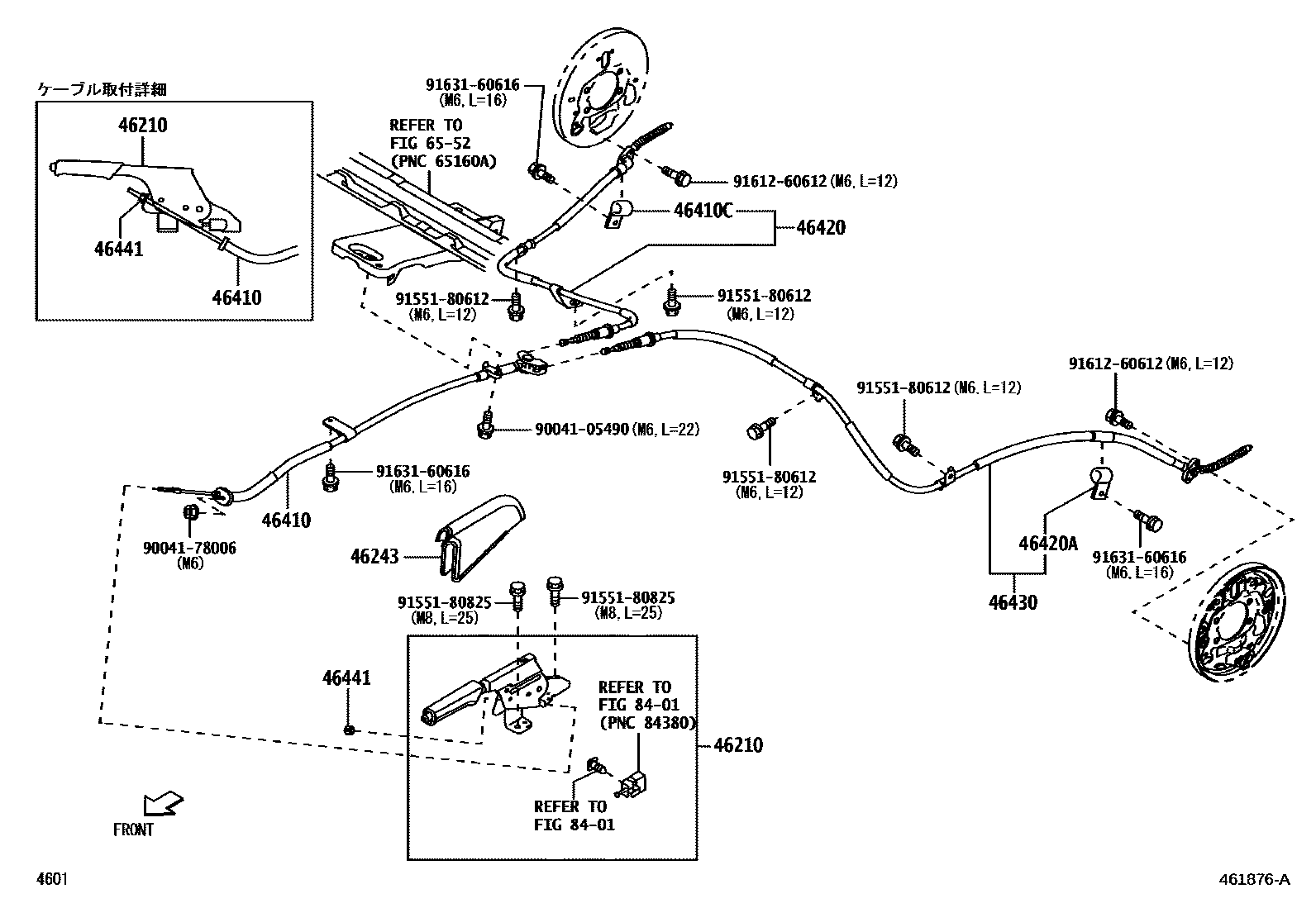

PARKING BRAKE & CABLE

46210LEVER ASSY, PARKING BRAKE

main46210-B5100-C0iS500,510202112

BLACK,TRIM1#

46243COVER, PARKING BRAKE LEVER

main46243-97501-C0iS500,510202112

BLACK,TRIM1#

sub46243-B5010¥980

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-B5050iS500,510¥3,510202112

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-B5010iS500,510¥210202112

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-B5100iS500,510¥3,400202112

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46411-B5010iS500,510¥210202112

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-B5080iS500,510¥3,400202112

46441NUT, WIRE ADJUSTING, NO.1

main94185-60600iS500,510¥70202112

6552

8401

9004105490

main90041-05490¥140

9004178006

main90041-78006¥70

9155180612

main91551-80612¥60

9155180825

main91551-80825¥80

9161260612

main91612-60612¥200

9163160616

main91631-60616¥120

16 parts on this diagram · 1 diagram in section
