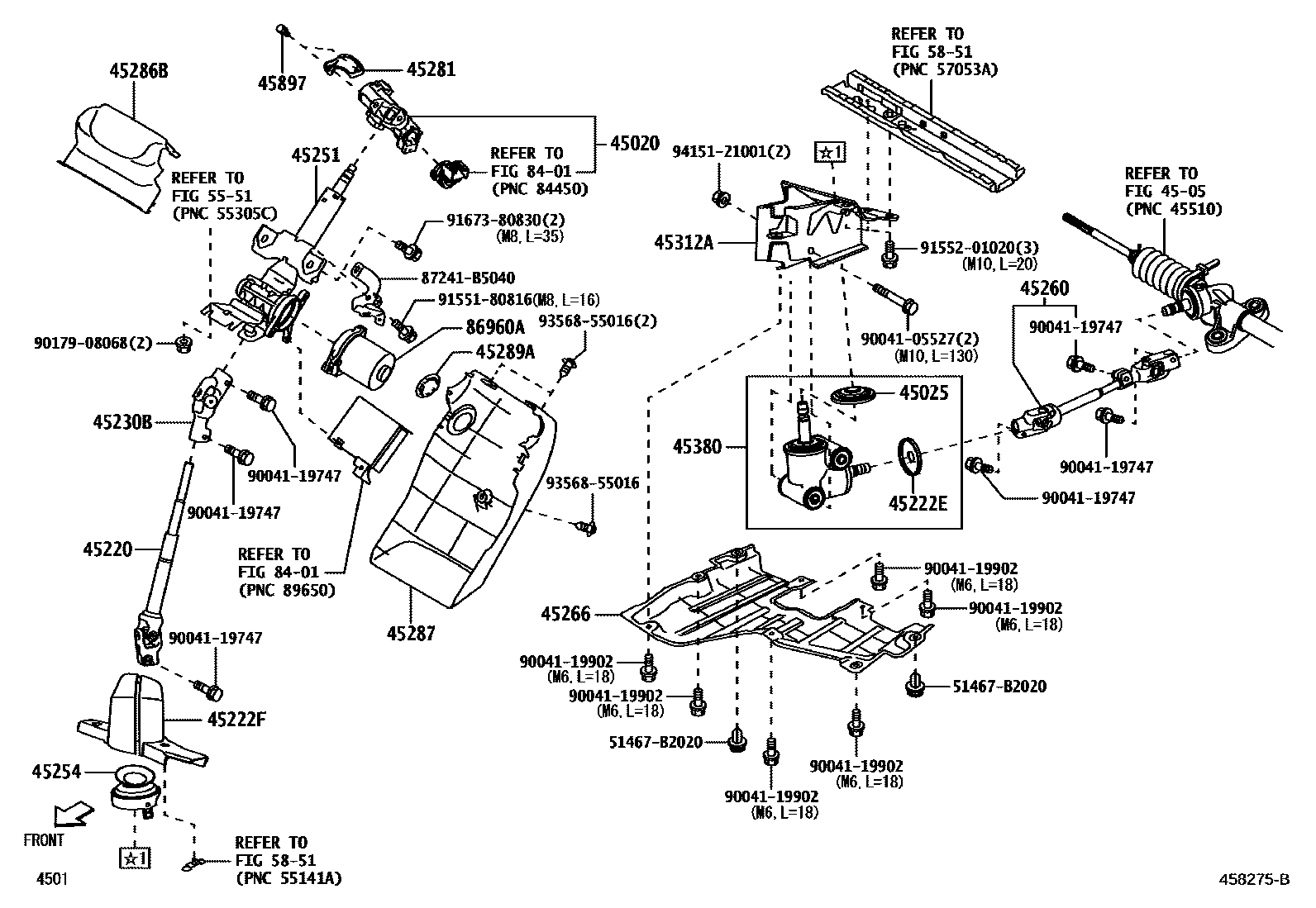

STEERING COLUMN & SHAFT

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-B5100iS500,510..STD..5MT202112

main45020-B5110iS500,510..STD..CVT202112

45025COVER, STEERING INTERMEDIATE SHAFT

main45222-B5030iS500,510202112

4505

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-B5100iS500,510202112

45222ECOVER, DUST(FOR STEERING BEVEL GEAR)

main45222-B5040iS500,510202112

45222FCOVER, DUST

main45222-B5010iS500,510202112

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45230-B5020iS500,510202112

45251TUBE SET, STEERING COLUMN

main45251-B9330iS500,510..STD202112

main45251-B9340iS500,510..EXT202112

45254SHIELD, STEERING COLUMN HOLE

main45254-B5031iS500,510202112

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-B5021iS500,510202112

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-B5010iS500,510202112

45281HOUSING, STEERING COLUMN

main45281-B2040iS500,510..STD202112

45286BCOVER, STEERING COLUMN, UPR

main45286-B5060-C0iS500,510202112

BLACK,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-B5060-C0iS500,510202112

BLACK,TRIM1#

45289ASUPPORT, STEERING COLUMN COVER

main45289-B2030-C0iS500,510..EXT202112

BLACK,TRIM1#

sub45289-B2030

main45289-B2030-C0iS500,510..EXT202112

sub45289-B2030

45312ABRACKET, STEERING BEVEL GEAR HOUSING

main45312-B5020iS500,510202112

45380GEAR ASSY, STEERING BEVEL

main45380-B5010iS500,510202112

45897BOLT, STEERING LOCK SET

main45897-B2010iS500,510..STD202112

5551

5851

8401

86960AMOTOR SET, POWER STEERING

main80960-B9210iS500,510202112

51467B2020RETAINER, ENGINE UNDER COVER

main51467-B2020

87241B5040CONTROLLER, WATER VALVE

main87241-B5040

9004105527

main90041-05527

9004119747

main90041-19747

9004119902

main90041-19902

9017908068

main90179-08068

9155180816

main91551-80816

9155201020

main91552-01020

9167380830

main91673-80830

9356855016

main93568-55016

9415121001

main94151-21001

33 parts on this diagram · 1 diagram in section
