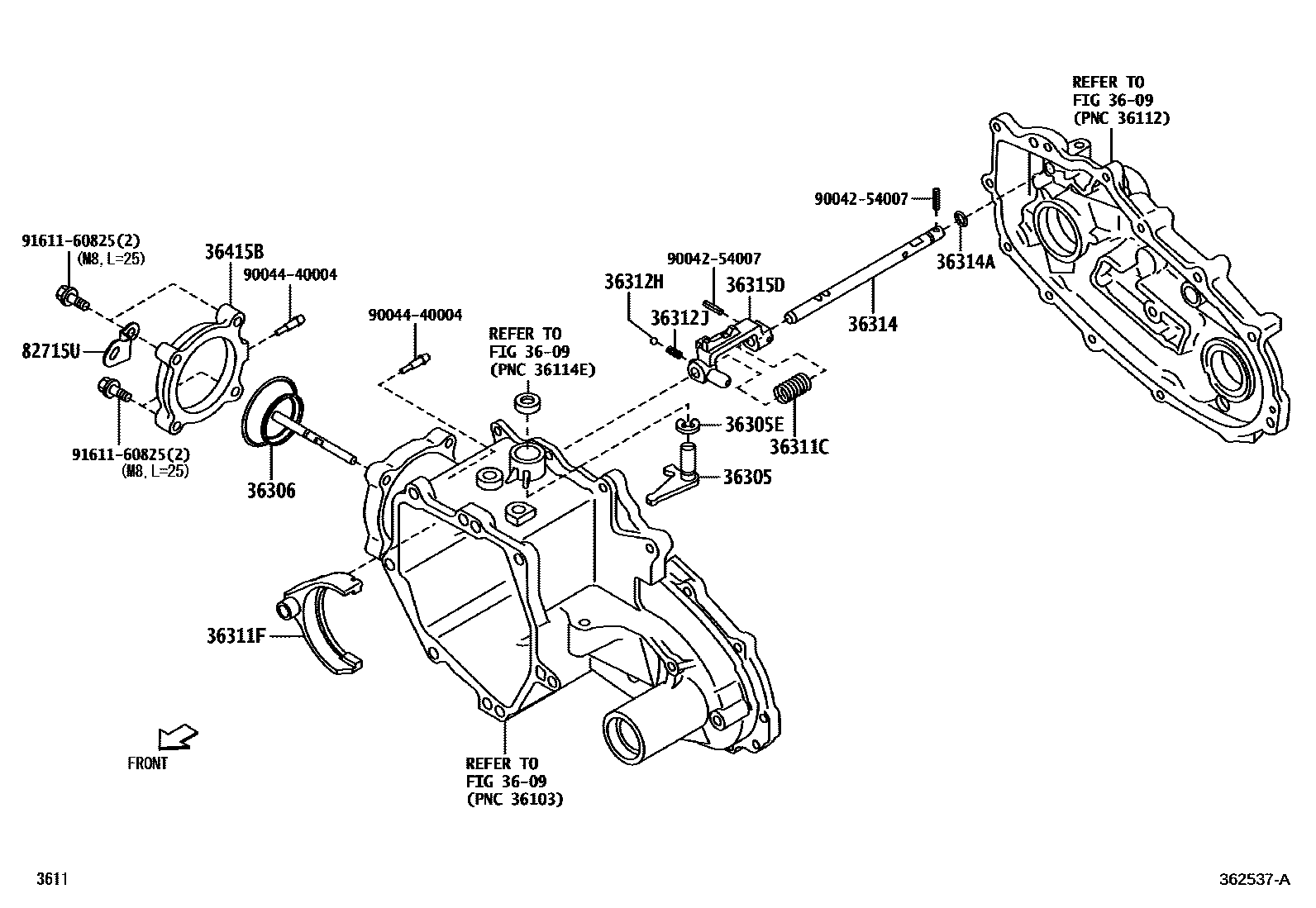

TRANSFER LEVER & SHIFT ROD

0001 1L/HI-LO 0002 1W/HI-LO

3609

36305LEVER SUB-ASSY, FRONT DRIVE SHIFT LINK

main36305-87502iS510..5MT202112

36305ERING, E(FOR FRONT DRIVE SHIFT LINK LEVER)

main90045-23007iS510..STD..5MT202112

36306SHAFT SUB-ASSY, CONTROL

main33205-B5020iS510..STD..5MT202112

main36306-87508iS510..EXT..5MT202112

36311CSPRING, COMPRESION (FOR SHIFT FORK)

main90045-01673iS510..5MT202112

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-B5010iS510..5MT202112

36312FORK, TRANSFER GEAR SHIFT, NO.2

main36312-87508iS510..EXT..5MT202112

36312HBALL (FOR TRANSFER GEAR SHIFT FORK NO.2)

main90043-60003iS510..5MT202112

36312JSPRING, COMPRESSION (FOR TRANSFER GEAR SHIFT FORK NO.2)

main90045-01267iS510..5MT202112

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-87507iS510..EXT..5MT202112

main36314-B5010iS510..STD..5MT202112

36314ARING, O (FOR TRANSFER SHIFT FORK SHAFT)

main96711-19009iS510..5MT202112

36315DHEAD, TRANSFER GEAR SHIFT, NO.1

main36316-87505iS510..5MT202112

36415BCOVER, DIAPHRAGM CYLINDER

main36415-87501iS510..5MT202112

82715UBRACKET, WIRING HARNESS CLAMP

main82715-B5061iS510..5MT202112

9004254007

main90042-54007

9004440004

main90044-40004

9161160825

main91611-60825

17 parts on this diagram · 2 diagrams in section
