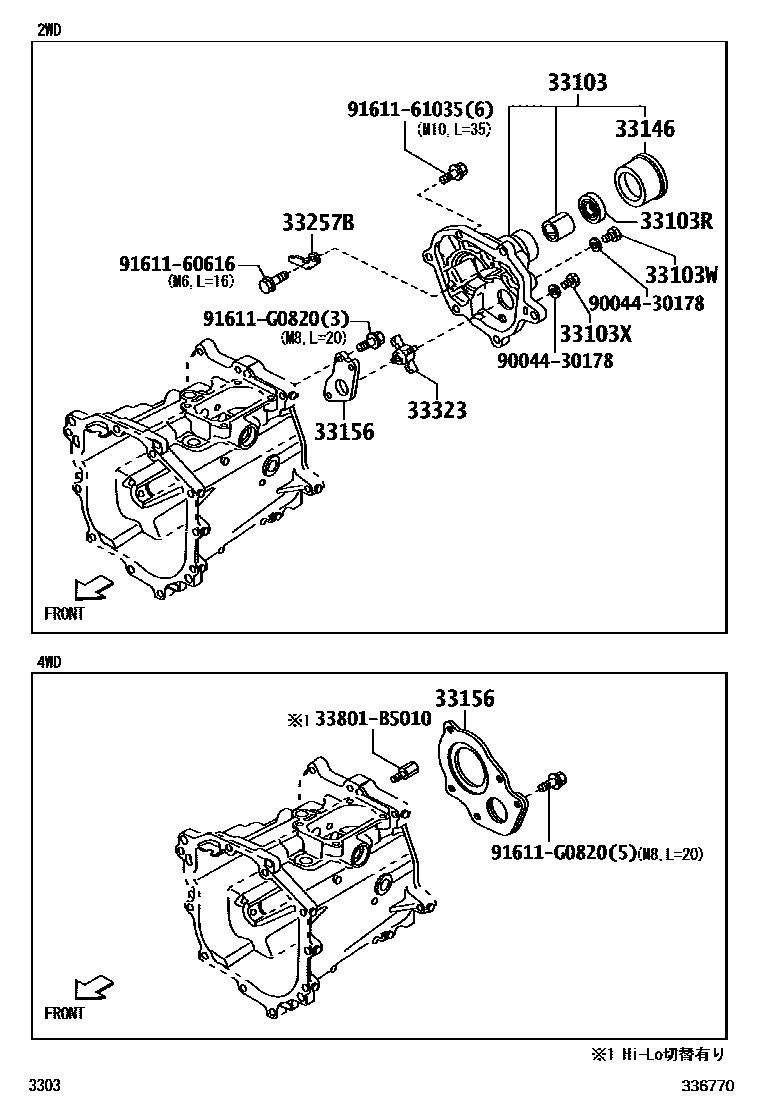

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-B5031iS500..5MT202112

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90043-11309iS500..5MT202112

33103WPLUG(FOR MANUAL TRANSMISSION FILLER)

main90043-41052iS500..5MT202311

main90341-16012iS500..5MT202112-202311

33103XPLUG(FOR MANUAL TRANSMISSION DRAIN)

main90043-41052iS500..5MT202311

main90341-16012iS500..5MT202112-202311

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-B5010iS500..5MT202112

33156RETAINER, OUTPUT SHAFT REAR BEARING

main33151-97501iS500..5MT202112

main33151-97502iS510..5MT202112

33257BPLATE, GEAR OIL

main35257-87501iS500..5MT202112

33323SLINGER, OUTPUT SHAFT OIL

main33467-87501iS500..5MT202112

33801B5010

main33801-B5010

9004430178

main90044-30178

9161160616

main91611-60616

9161161035

main91611-61035

91611G0820

main91611-G0820

13 parts on this diagram · 1 diagram in section
