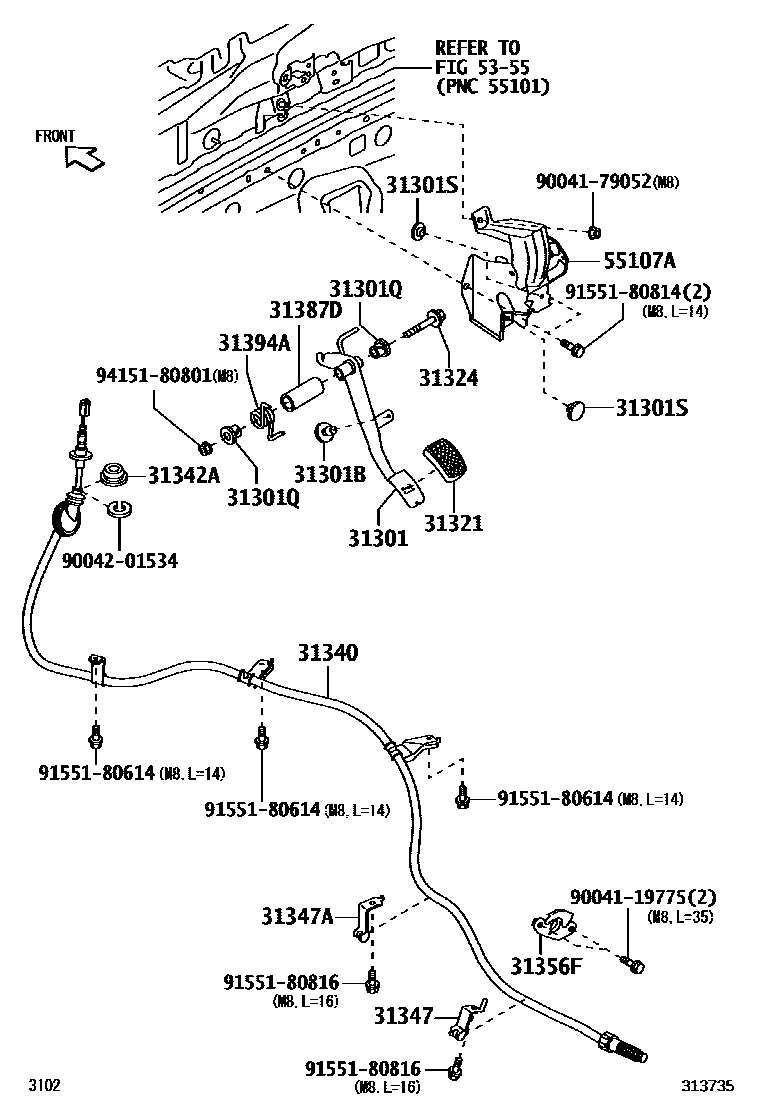

CLUTCH PEDAL & FLEXIBLE HOSE

31301PEDAL SUB-ASSY, CLUTCH

main31301-B5050iS500,510..5MT202112

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90045-40158iS500,510..5MT202112

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90043-86121iS500,510..5MT202112

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90045-40158iS500,510..5MT202112

31321PAD, CLUTCH PEDAL

main31321-87503iS500,510..5MT202112

31324SHAFT, CLUTCH PEDAL

main90041-05628iS500,510..5MT202112

31340CABLE ASSY, CLUTCH RELEASE

main31340-B5031iS500,510..5MT202112

31342ABUSH(FOR CLUTCH RELEASE CABLE)

main90043-85162iS500,510..5MT202112

31347CLAMP, CLUTCH CABLE

main31347-B5060iS500,510..5MT202112

31347ACLAMP, CLUTCH CABLE, NO.1

main31347-B5040iS500,510..5MT202112

31356FPLATE, CLUTCH PEDAL OVER CENTER, NO.1

main31107-B5010iS500,510..5MT202112

31387DSPACER(FOR CLUTCH RELEASE SECTOR)

main90045-60615iS500,510..5MT202112

31394ASPRING, PEDAL W/HOOK

main90045-08387iS500,510..5MT202112

5355

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-B5070iS500,510..5MT202112

9004119775

main90041-19775

9004179052

main90041-79052

9004201534

main90042-01534

9155180614

main91551-80614

9155180814

main91551-80814

9155180816

main91551-80816

9415180801

main94151-80801

22 parts on this diagram · 1 diagram in section
