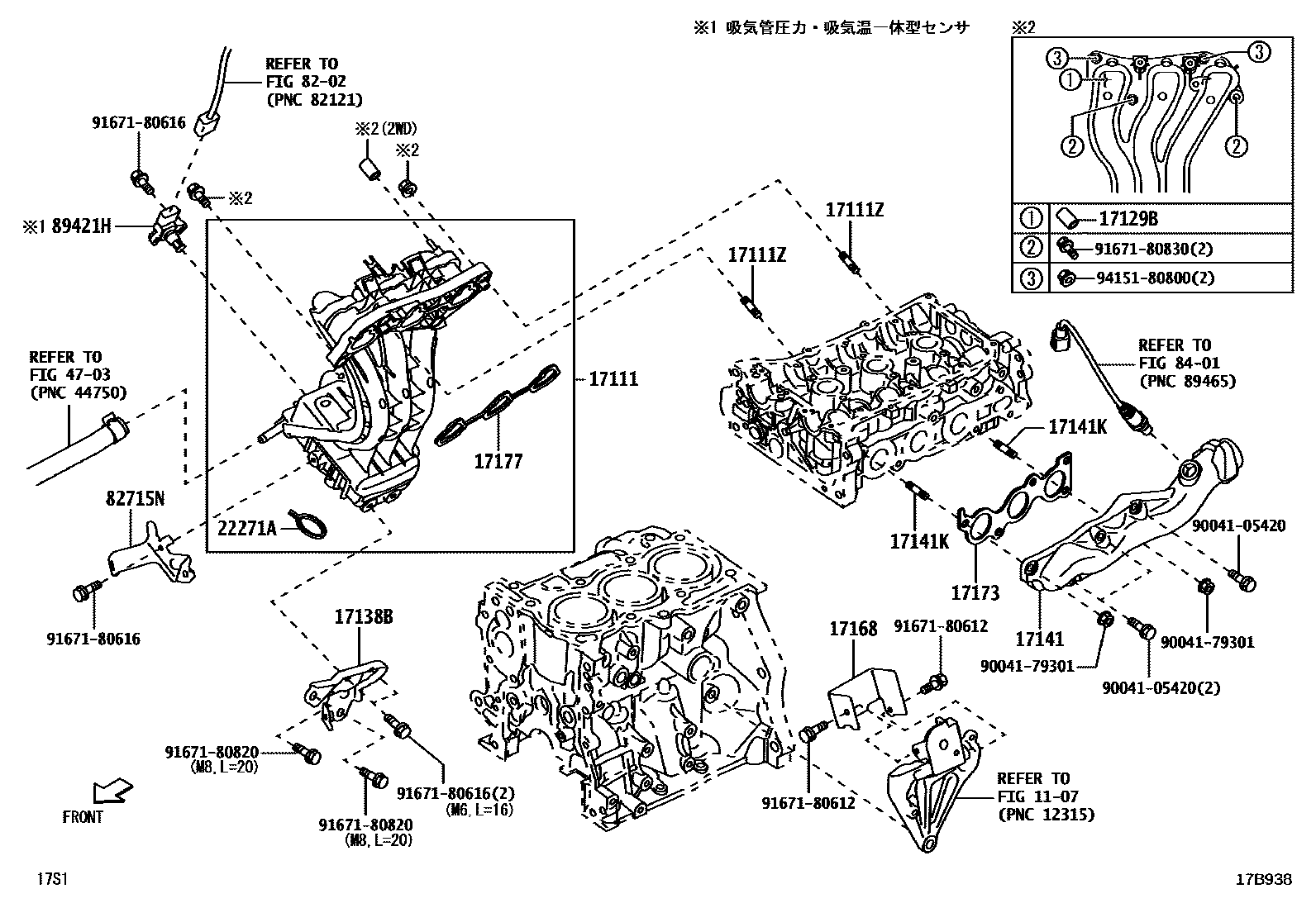

MANIFOLD
1107
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17129BPLUG
17138BSTAY, INTAKE MANIFOLD
17141MANIFOLD, EXHAUST
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
22271AGASKET, THROTTLE BODY
4703
8202
82715NBRACKET, WIRING HARNESS CLAMP
8401
89421HSENSOR, VACUUM
9004105420
main90041-05420
9004179301
main90041-79301
9167180612
main91671-80612
9167180616
main91671-80616
9167180820
main91671-80820
9167180830
main91671-80830
9415180800
main94151-80800
23 parts on this diagram · 1 diagram in section
