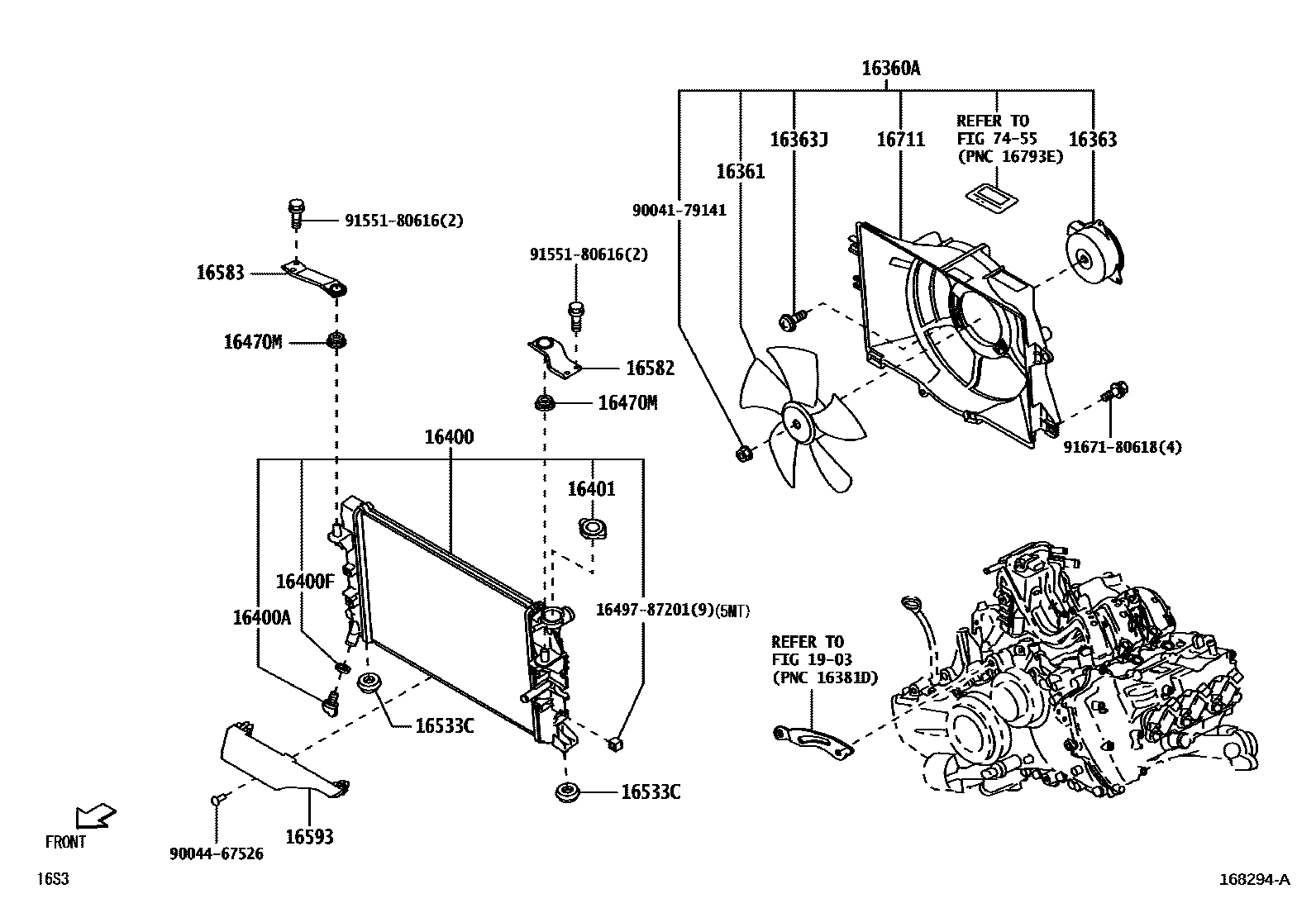

RADIATOR & WATER OUTLET

0001 1������ 0002 1���,����� 0003 1���,�����

16360AFAN ASSY, W/MOTOR

main16360-B5030iKFVE..S500,510202112-202304

sub16360-B5031

main16360-B5031iKFVE..S500,510202305

16361FAN

main16361-B1070iKFVE..S500,510202112

16363MOTOR, COOLING FAN

main16363-B5040iKFVE..S500,510202112

16363JBOLT(FOR COOLING FAN MOTOR)

main16672-87201iKFVE..S500,510202112

16400RADIATOR ASSY

main16400-B5070iKFVE..S500,510..5MT202112

main16400-B5180iKFVE..S500,510..CVT202112

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-B2020iKFVE..S500,510202112

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16442-B2010iKFVE..S500,510202112

16401CAP SUB-ASSY, RADIATOR

main16401-B5070iKFVE..S500,510202112

16470MGROMMET

main90044-80621iKFVE..S500,510202112

16533CGROMMET(FOR RADIATOR SUPPORT)

main90044-80592iKFVE..S500,510202112

16582BRACKET, RADIATOR, NO.1

main16582-B5010iKFVE..S500,510202112

16583BRACKET, RADIATOR, NO.2

main16583-B5020iKFVE..S500,510202112

16593GUIDE, RADIATOR AIR, NO.1

main16593-B5010iKFVE..S500,510202112

16711SHROUD, FAN

main16711-B5010iKFVE..S500,510202112

1903

7455

1649787201INLET SUB-ASSY

main16497-87201

9004179141

main90041-79141

9004467526

main90044-67526

9155180616

main91551-80616

9167180618

main91671-80618

21 parts on this diagram · 3 diagrams in section
