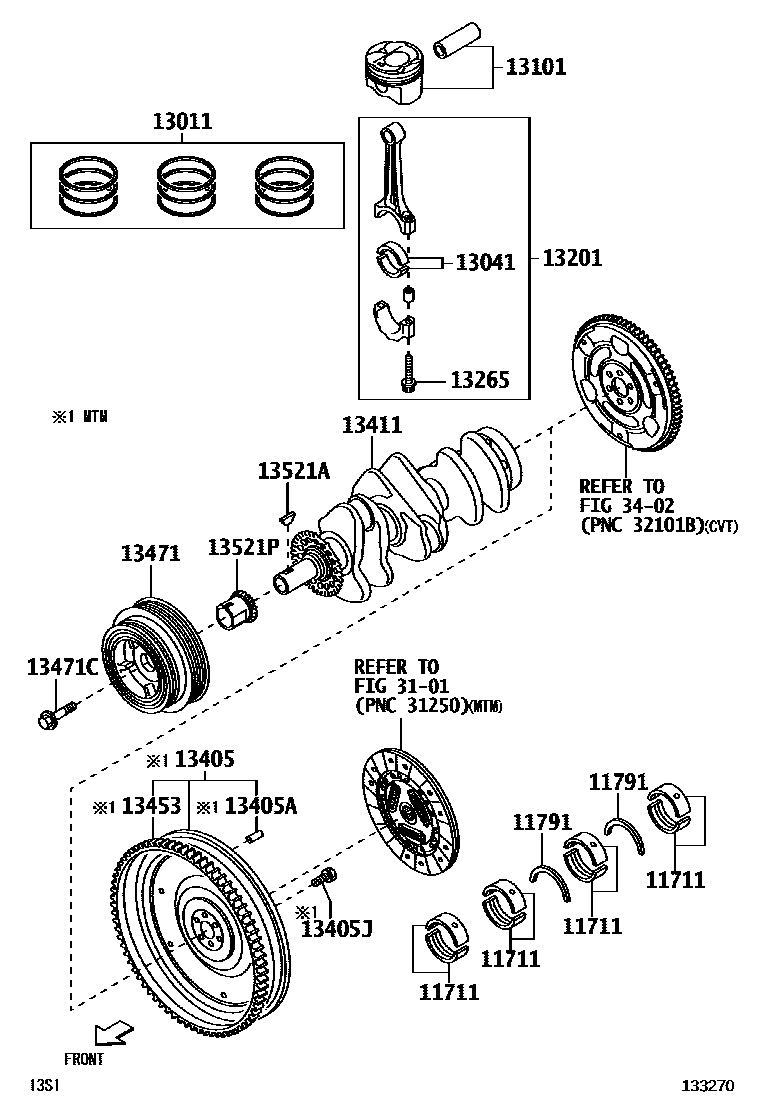

CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-B2040-02iKFVE..S500,510202112

main11701-B2040-03iKFVE..S500,510202112

main11701-B2040-04iKFVE..S500,510202112

main11701-B2040-05iKFVE..S500,510202112

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-B2010iKFVE..S500,510202112

13011RING SET, PISTON

main13011-B2150iKFVE..S500,510202112

13041BEARING, CONNECTING ROD

main13041-B2010-01iKFVE..S500,510202112

main13041-B2010-02iKFVE..S500,510202112

main13041-B2010-03iKFVE..S500,510202112

13101PISTON SUB-ASSY, W/PIN

main13101-B2232iKFVE..S500,510202112

13201ROD SUB-ASSY, CONNECTING

main13201-B9060iKFVE..S500,510202112

13265BOLT, CONNECTING ROD

main13265-B9020iKFVE..S500,510202112

13405FLYWHEEL SUB-ASSY

main13405-B5010iKFVE..S500,510..5MT202112

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90042-50152iKFVE..S500,510..5MT202112

13405JBOLT(FOR FLYWHEEL)

main90048-01037iKFVE..S500,510..5MT202112

13411CRANKSHAFT

main13401-B2040iKFVE..S500,510202112

13453GEAR, FLYWHEEL RING

main13453-B5010iKFVE..S500,510..5MT202112

13471PULLEY, CRANKSHAFT

main13470-B2110iKFVE..S500,510202112

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90041-05587iKFVE..S500,510202112

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90042-80034iKFVE..S500,510202112

13521PPULLEY, CRANKSHAFT TIMING

main13521-B2040iKFVE..S500,510202112

3101

3402

18 parts on this diagram · 1 diagram in section
