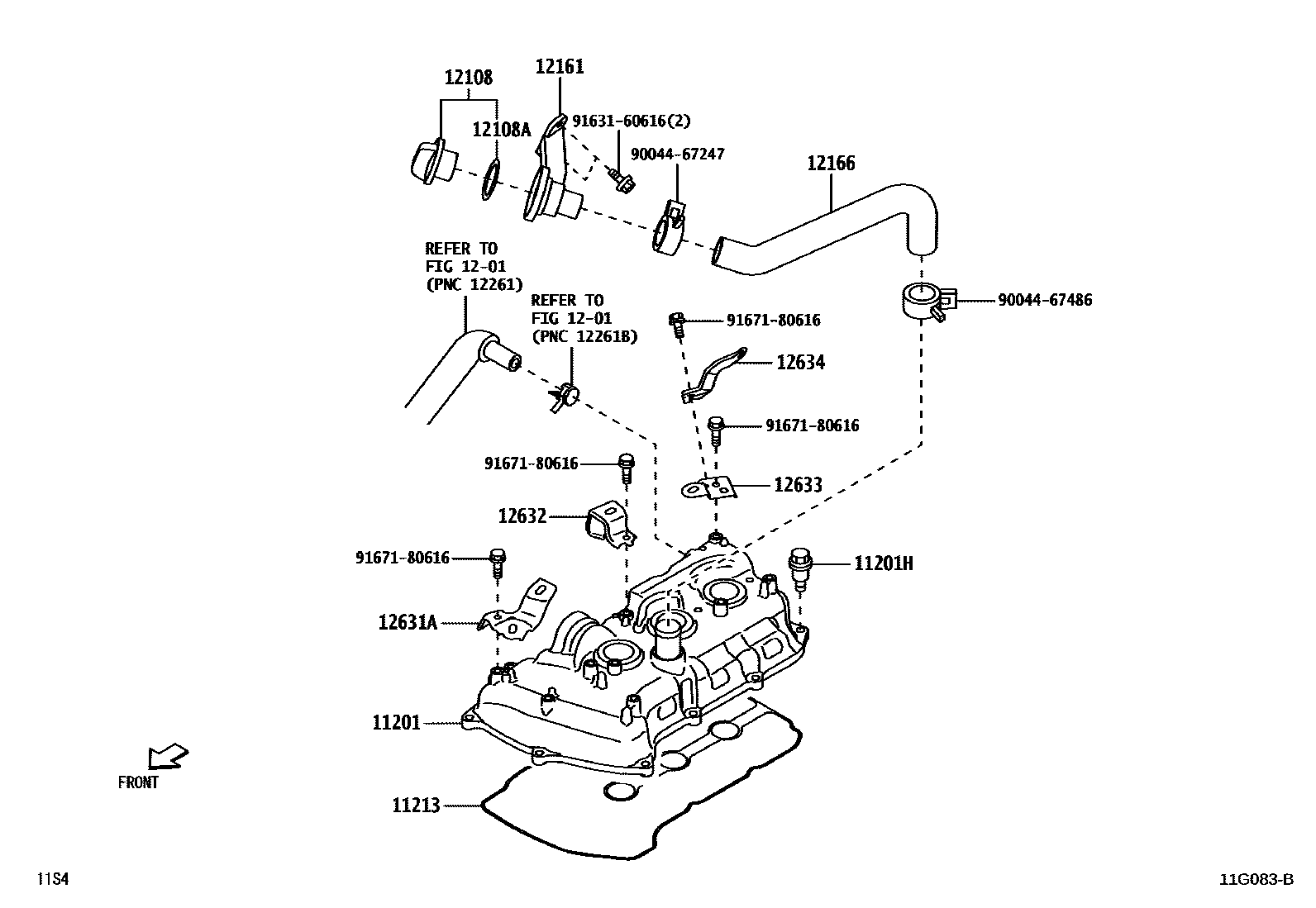

CYLINDER HEAD

0001 1������������� 0002 1���������

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-B2160iKFVE..S500,510202112

11201HBOLT(FOR CYLINDER HEAD COVER)

main91551-80620iKFVE..S500,510202112

11213GASKET, CYLINDER HEAD COVER

main11213-B2051iKFVE..S500,510202112

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-97201iKFVE..S500,510202112

12108AGASKET(FOR OIL FILLER CAP)

main12195-87206iKFVE..S500,510202112

12161TUBE, OIL FILLER

main12161-97501iKFVE..S500,510202112

12166HOSE, OIL FILLER

main12186-B5010iKFVE..S500,510202112

12631ABRACKET, ENGINE COVER

main82715-B5360iKFVE..S500,510202112

12632BRACKET, ENGINE COVER, NO.2

main82715-B5850iKFVE..S500,510202112

12633BRACKET, ENGINE COVER, NO.3

main82715-B5810iKFVE..S500,510202112

12634BRACKET, ENGINE COVER, NO.4

main82715-B5840iKFVE..S500,510202112

9004467247

main90044-67247

9004467486

main90044-67486

9163160616

main91631-60616

9167180616

main91671-80616

16 parts on this diagram · 2 diagrams in section
