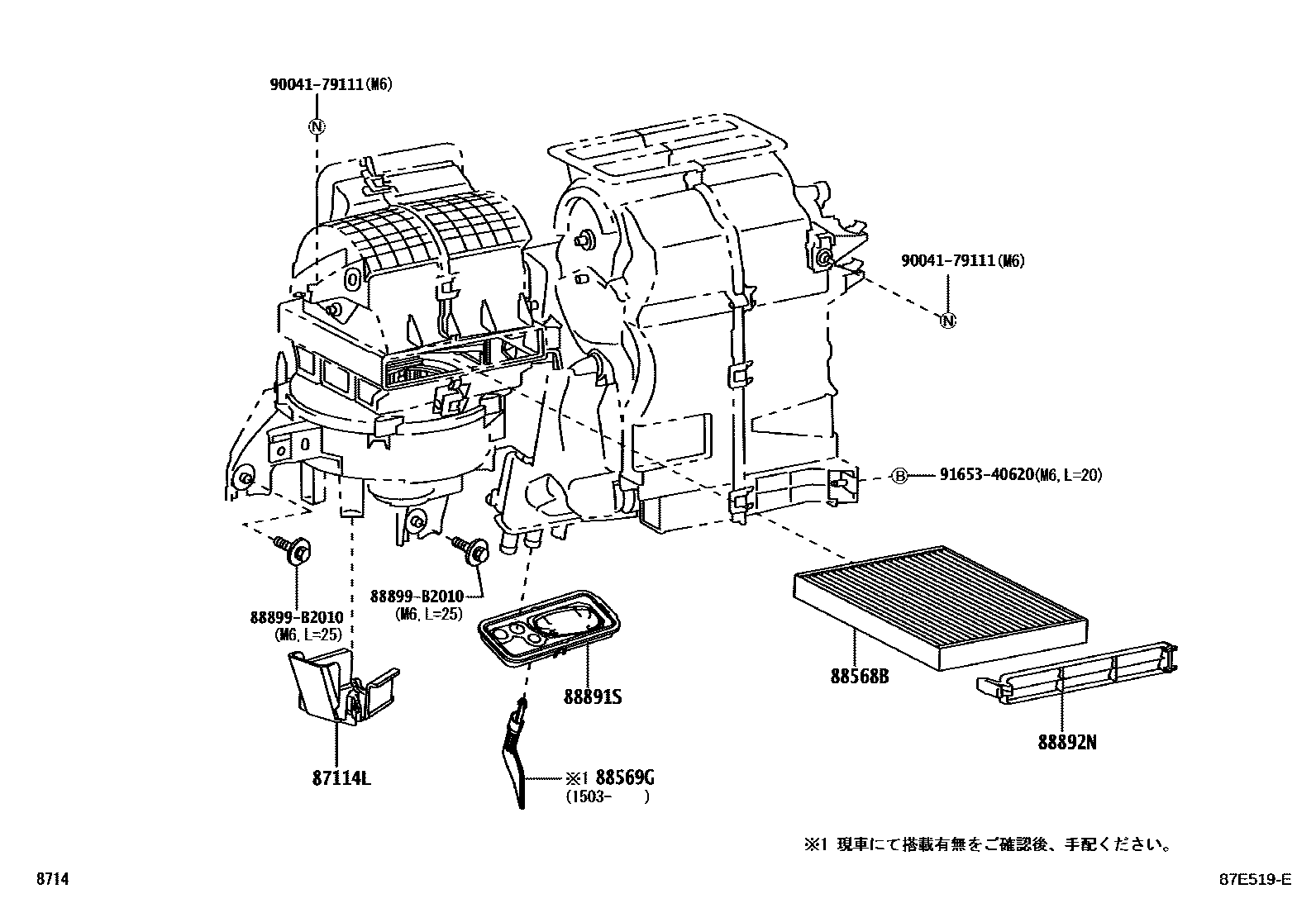

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1���� �� 0003 1���� �� 0004 1���� �� 0005 1���� ��

87114LCOVER, HEATER, NO.2

main87114-B5040iS500,510201409-201610

88568BFILTER, AIR

main88568-B2060supersedes 88568-B2030iS500,510201409-201610

88569GCLAMP

main87124-B5040iS500,510201503-201610

88891SCOVER, COOLER, NO.1

main88891-B5020iS500,510201409-201610

main88891-B5010iS500,510..SPL201610

88892NCOVER, COOLER, NO.2

main88892-B5040iS500,510201409-201610

88899B2010COVER, EVAPORATOR

main88899-B2010

9004179111

main90041-79111

9165340620

main91653-40620

8 parts on this diagram · 5 diagrams in section
