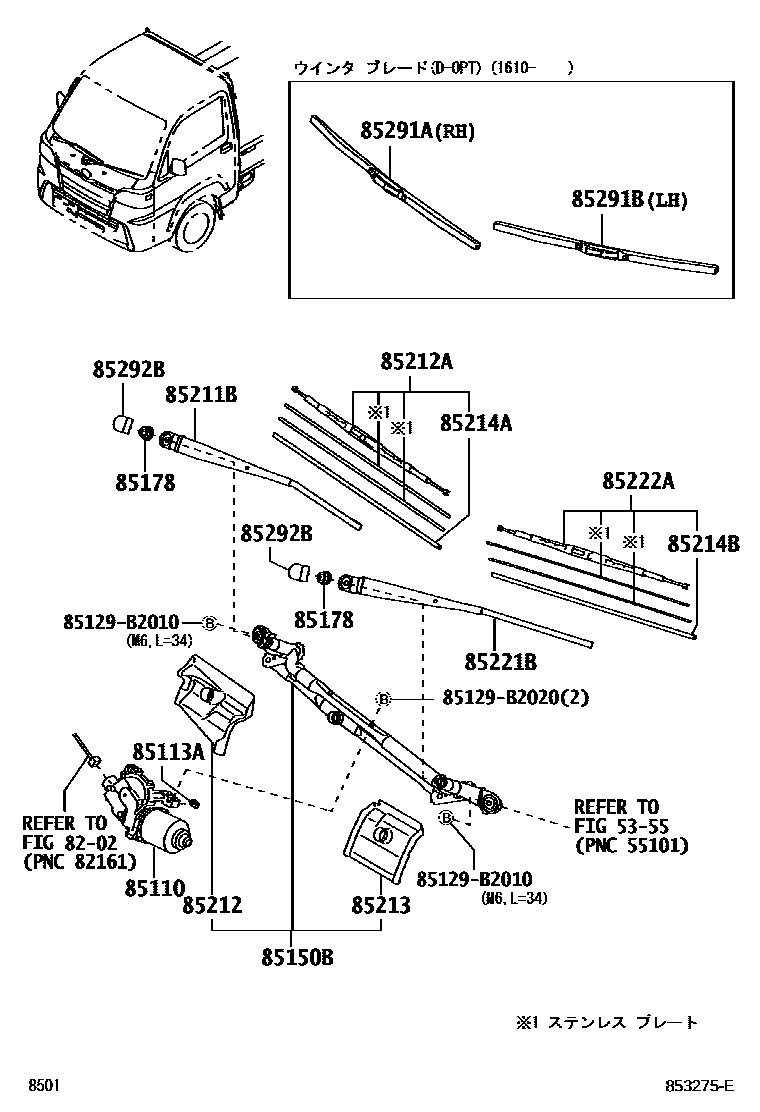

WINDSHIELD WIPER

5355

8202

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-B5011iS500,510201409-201711

sub85110-B5012

main85110-B5012iS500,510201712

85113ANUT, FR WIPER

main85113-B2010iS500,510201409-201610

85150BLINK ASSY, WIPER

main85150-B5041iS500,510201409-201610

85178NUT (FOR FRONT WIPER ARM SETTING)

main81128-87205iS500,510201409-201610

85211BARM, FRONT WIPER, RH

main85211-B5010iS500,510201409-201610

85212COVER, WIPER ARM PIECE, NO.1

main85218-B5011iS500,510201409-201610

85212ABLADE, FR WIPER, RH

main85222-B2080iS500,510201409-201610

85213COVER, WIPER ARM PIECE, NO.2

main85228-B5010iS500,510201409-201610

85214ARUBBER, WIPER, RH

main85214-B2020iS500,510201409-201610

85214BRUBBER, WIPER, LH

main85214-B2020iS500,510201409-201610

85221BARM, FRONT WIPER, LH

main85221-B5030iS500,510201409-201610

85222ABLADE, FR WIPER, LH

main85222-B2080iS500,510201409-201610

85291ABLADE, FRONT WIPER, WINTER, RH

85291BBLADE, FRONT WIPER, WINTER, LH

85292BCAP, FRONT WIPER ARM HEAD

main85292-12020iS500,510201409-201610

85129B2010COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2010

85129B2020COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2020

19 parts on this diagram · 1 diagram in section
