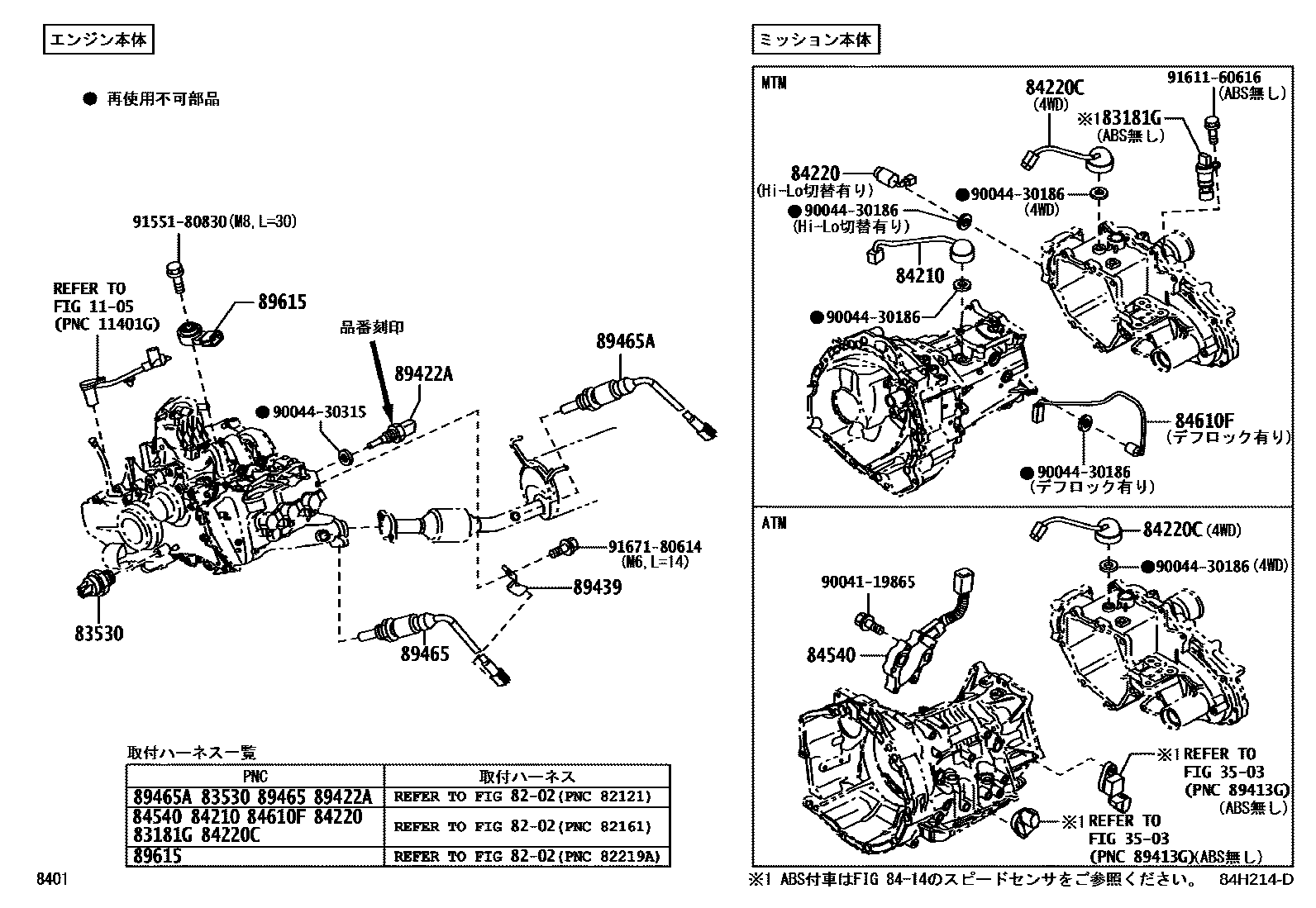

SWITCH & RELAY & COMPUTER

0001 1�����&��������� 0002 1�������� 0003 1�������� 0004 1������������ NO.1 0005 1������������ NO.2 0006 1������������ NO.3 0007 1������� 0008 1���&���

1105

3503

8202

83181GSENSOR, SPEEDOMETER

main83181-B5010iS500..5MT201409-201711

main83181-B5010iS500..5MT201409-201610

main83181-B5010iS500..5MT201610-201711

main83181-B5020iS510..5MT201409-201711

main83181-B5020iS510..5MT201610-201711

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main89630-B5010iS500,510201409-201610

84210SWITCH ASSY, BACK-UP LAMP

main84210-B4010iS500,510..5MT201409-201610

84220SWITCH ASSY, TRANSFER LEVER SELECT

main84220-B5020iS510..EXT..5MT201409-201610

84220CSWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-B5010iS510201409-201610

84540SWITCH ASSY, NEUTRAL START

main84540-B0010iS500,510..4AT201409-201610

84610FSWITCH ASSY, TRANSMISSION SHIFT

main84610-B5010iS510..EXT..5MT201409-201610

main84610-B5010iS510..EXT..5MT201409-201610

main84610-B5010iS510..EXT..5MT201610

89422ASENSOR, WATER TEMPERATURE

main89422-16010iS500,510201409-201503

main89422-33030iS500,510201503-201610

89439BRACKET, SENSOR

main89439-B5030iS500,510201409-202112

89465SENSOR, OXYGEN

main89465-B2101iS500,510201409-202009

main89465-B5070iS500,510202009

89465ASENSOR, OXYGEN NO.2

main89465-B5012iS500,510201409-201610

89615SENSOR, KNOCK CONTROL

main89615-20090iS500,510201409-201610

9004119865

main90041-19865

9004430186

main90044-30186

9004430315

main90044-30315

9155180830

main91551-80830

9161160616

main91611-60616

9167180614

main91671-80614

21 parts on this diagram · 8 diagrams in section
