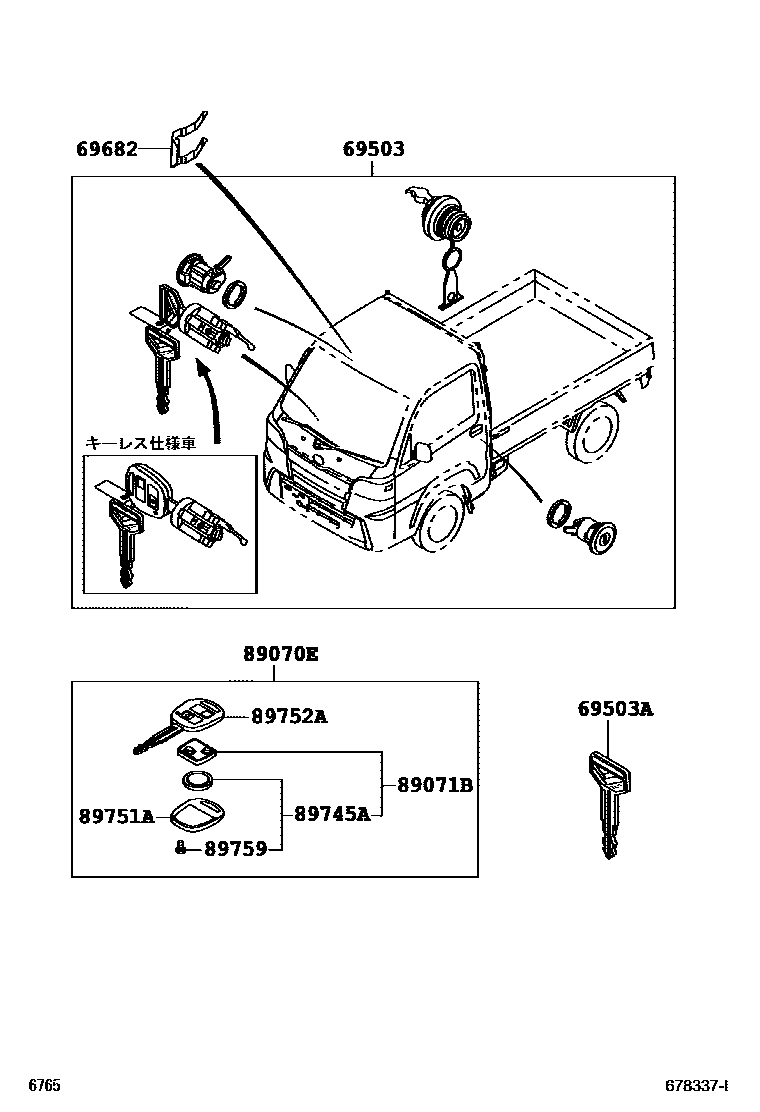

LOCK CYLINDER SET

0001 1 0002 1

69503CYLINDER SET, LOCK

main69005-B5310iS500,510..EXT201409-201511

main69005-B5320iS500,510..SPL201409-201511

main69005-B5420iS500,510..EXT201511-201610

main69005-B5430iS500,510..SPL201511-201610

69503AKEY, BLANK

main90999-00153iS500,510201409-201610

69682RETAINER, LOCK CYLINDER

main69682-97202iS500,510201409-201610

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-B1022iS500,510..EXT201409-201610

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-B1021iS500,510..EXT201409-201610

89745ABATTERY, TRANSMITTER

main89745-B2010iS500,510..EXT201409-201610

main89745-B2010iS500,510..EXT201409-201610

89751ACOVER, TRANSMITTER HOUSING

main89751-B4020iS500,510..EXT201409-201610

89752ACASE, TRANSMITTER HOUSING

main89752-B1010iS500,510..EXT201409-201610

89759SCREW, DOOR CONTROL TRANSMITTER

main89759-B2010iS500,510..EXT201409-201610

9 parts on this diagram · 2 diagrams in section
