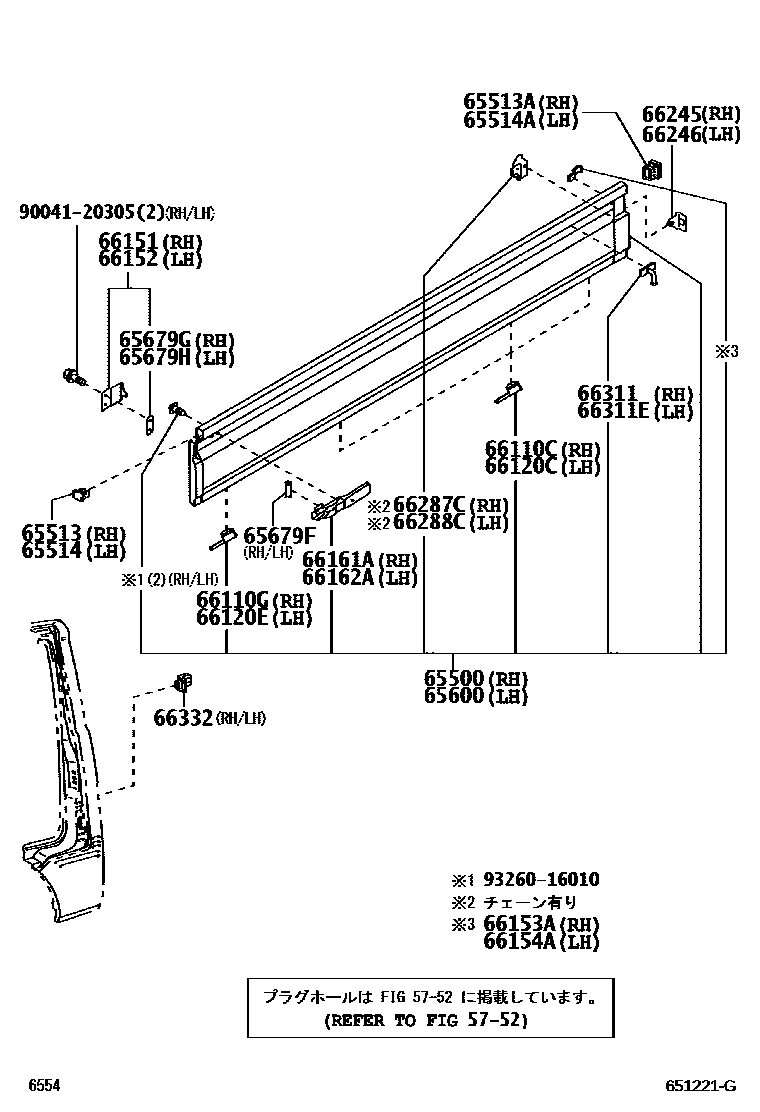

REAR BODY SIDE PANEL
5752
65500PANEL ASSY, REAR BODY SIDE, RH
65513LID, TOP RAIL, FRONT RH
65513ALID, TOP RAIL, REAR RH
65514LID, TOP RAIL, FRONT LH
65514ALID, TOP RAIL, REAR LH
65600PANEL ASSY, REAR BODY SIDE, LH
65679FPROTECTOR, SIDE GATE
65679GSEAL, SIDE GATE
65679HSEAL, SIDE GATE
66110CHINGE ASSY, SIDE GATE, NO.1 RH
66110GHINGE ASSY, SIDE GATE, NO.2 RH
66120CHINGE ASSY, SIDE GATE, NO.1 LH
66120EHINGE ASSY, SIDE GATE, NO.2 LH
66151LATCH, SIDE GATE FEMALE, RH
66152LATCH, SIDE GATE FEMALE, LH
66153ALATCH, TAIL GATE FEMALE, RH
66154ALATCH, TAIL GATE FEMALE, LH
66161AHANDLE, SIDE GATE LATCH, RH
66162AHANDLE, SIDE GATE LATCH, LH
66245PROTECTOR, REAR BODY, NO.3 RH
sub66183-B5011
66246PROTECTOR, REAR BODY, NO.3 LH
sub66183-B5011
66287CBRACKET, TAIL GATE CHAIN, RH
66288CBRACKET, TAIL GATE CHAIN, LH
66311HOOK, ROPE
66311EHOOK, ROPE
9004120305
main90041-20305
9326016010
main93260-16010
29 parts on this diagram · 1 diagram in section
