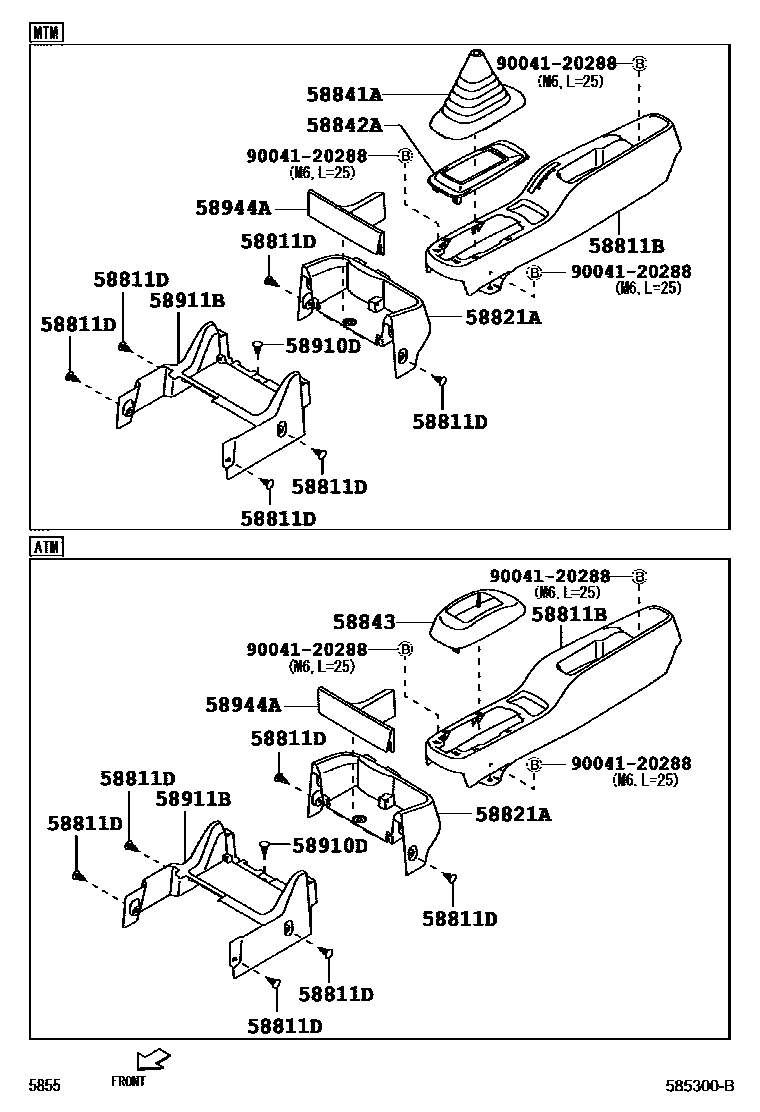

CONSOLE BOX & BRACKET

58811BBOX, CONSOLE

main58811-B5040-B0iS500;S510..4AT;S510..SPL..5MT201409-201610

DK.GRAY,TRIM1#

main58811-B5040-C0iS500;S510..4AT;S510..SPL..5MT201711

BLACK,TRIM2#

main58811-B5050-B0iS510..EXT..5MT201409-201610

DK.GRAY,TRIM1#

main58811-B5050-C0iS510..EXT..5MT201711

58811DCLIP(FOR CONSOLE BOX)

main90467-05063-B5×6iS500,510201409-201610

DK.GRAY,TRIM1#

main90467-05063-C4×6iS500,510201701-201806

BLACK,TRIM1#,2#

58821APANEL, CONSOLE

main58821-B5010-B0iS500,510201409-201610

DK.GRAY,TRIM1#

main58821-B5010-C0iS500,510201711

BLACK,TRIM2#

58841ACOVER, SHIFTING HOLE

main58841-87504-B1iS500,510..5MT201409-201610

DK.GRAY,TRIM1#

main58841-87504-C0iS500,510..5MT201711

BLACK,TRIM2#

58842AFRAME, SHIFTING HOLE

main58842-87503iS500,510..5MT201409-201610

58843BEZEL, SHIFTING HOLE

main58843-87501-B1iS500,510..4AT201409-201610

DK.GRAY,TRIM1#

main58843-87501-C0iS500,510..4AT201711

BLACK,TRIM2#

58910DCLIP(FOR CONSOLE BOX)

main90044-67417-B2iS500,510201409-201610

DK.GRAY,TRIM1#

main90044-67417-C3iS500,510201705-201806

BLACK,TRIM1#,2#

58911BPANEL, BOX, NO.1

main55314-B5010-B0iS500,510201409-201610

DK.GRAY,TRIM1#

main55314-B5010-C0iS500,510201711

BLACK,TRIM2#

58944ACOVER, CONSOLE, REAR

main58944-B5010-B0iS500,510201409-201610

DK.GRAY,TRIM1#

main58944-B5010-C0iS500,510201711

BLACK,TRIM2#

9004120288

main90041-20288

10 parts on this diagram · 1 diagram in section
