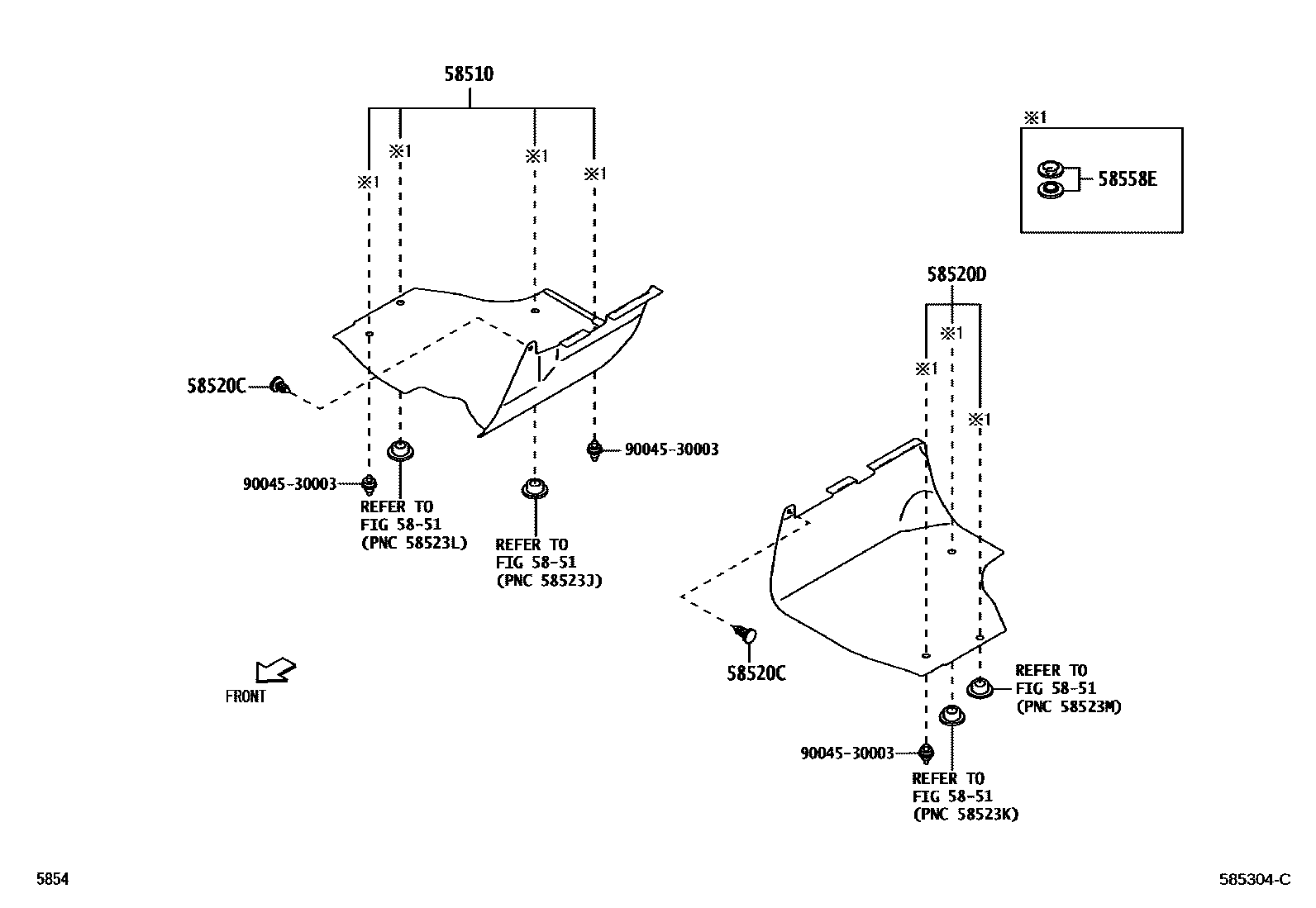

FLOOR MAT & SILENCER PAD

0001 1 0002 1

5851

58510MAT ASSY, FRONT FLOOR, FRONT NO.1

main58510-B5190-B0iS500,510..4AT201409-201610

-,TRIM1#

main58510-B5190-B1iS500,510..4AT201711

BLACK,TRIM2#

main58510-B5200-B0iS500,510..5MT201610-201711

-,TRIM1#

main58510-B5200-B1iS500,510..5MT201711

BLACK,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90044-68046-B2×2iS500,510201409-201610

DK.GRAY,TRIM1#

main90044-68046-C2×2iS500,510201611-201806

BLACK,TRIM1#,2#

58520DMAT ASSY, FRONT FLOOR, FRONT NO.2

main58520-B5040-B0iS500,510201409-201610

-,TRIM1#

main58520-B5040-B1iS500,510201711

BLACK,TRIM2#

58558EFASTENER, PILE

main58558-87501-B2×7iS500,510201409-201610

DK.GRAY,TRIM1#

main58558-87501-C0×7iS500,510201711

BLACK,TRIM2#

9004530003

main90045-30003

6 parts on this diagram · 2 diagrams in section
