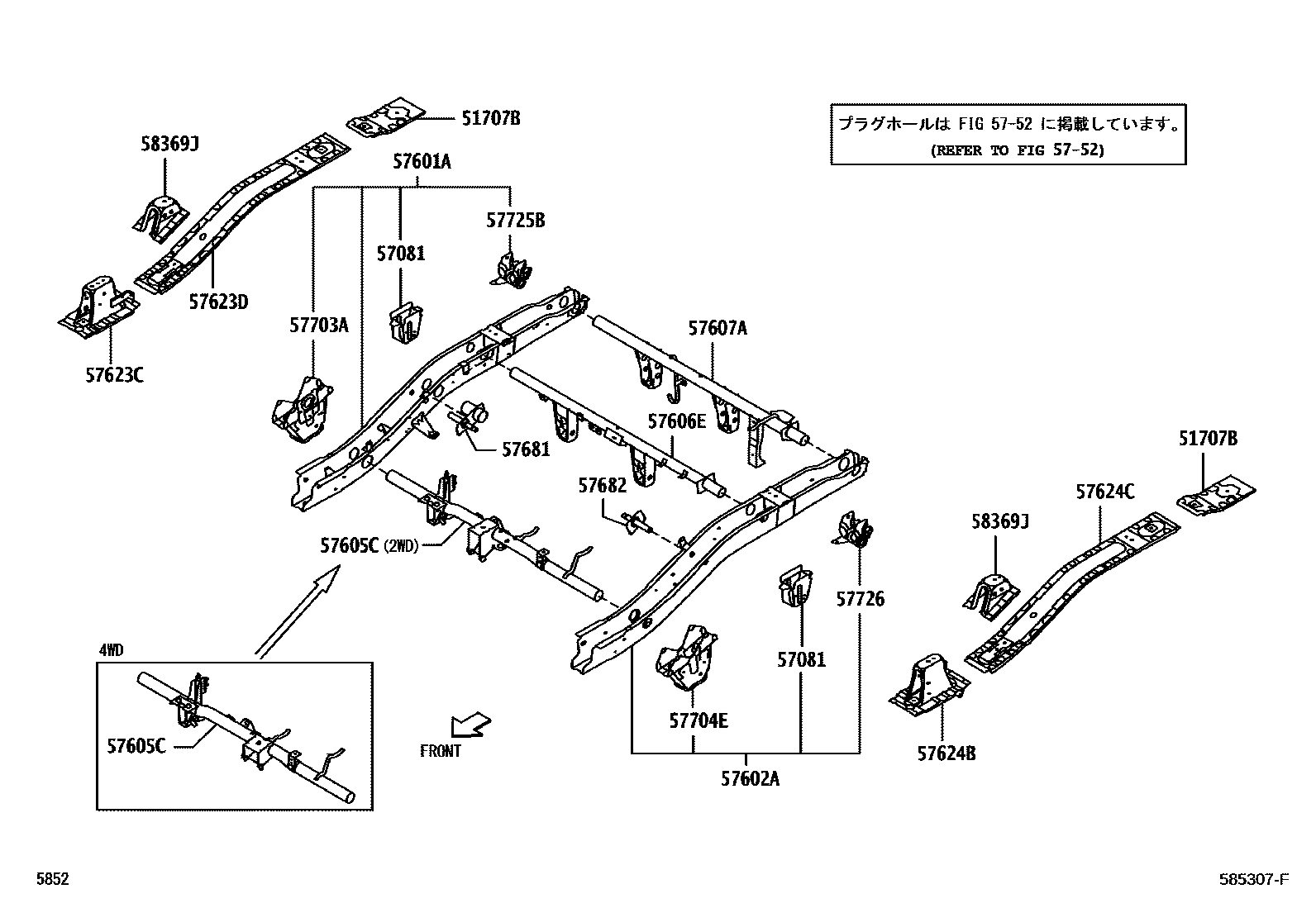

REAR FLOOR PANEL & REAR FLOOR MEMBER

51707BBRACKET SUB-ASSY, CAB MOUNTING, NO.4

main51757-B5010iS500,510201409-201610

57081BRACKET SUB-ASSY, REAR BUMPER MOUNTING

main57702-B5020iS500,510201409-201610

5752

57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-B5090iS500,510201409-201511

sub57601-B5130

sub90048-74013

main57601-B5130iS500,510201511-201606

sub57601-B5131

main57601-B5131iS500,510201607-201802

sub57601-B5150

main57601-B5150iS500,510201802

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-B5090iS500,510201409-201610

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-B5060iS500201409-201610

main57605-B5070iS510201409-201610

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-B5080iS500;S510..4AT;S510..SPL..5MT201409-201610

main57606-B5090iS510..SPL..5MT201610

main57606-B5090iS510..SPL..5MT201409-201610

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-B5060iS500,510201711

57623CRAIL SUB-ASSY, FLOOR SIDE, REAR RH

main57047-B5030iS500,510201409-202111

57623DPLATE, REAR FLOOR SIDE MEMBER, RR RH

main57045-B5040iS500,510201409-201610

57624BRAIL SUB-ASSY, FLOOR SIDE, REAR LH

main57048-B5030iS500,510201409-201610

57624CPLATE, REAR FLOOR SIDE MEMBER, RR LH

main57046-B5120iS500,510201409-201610

57681BRACKET, REAR SHOCK ABSORBER, RH

main48505-B5040iS500,510201409-201610

57682BRACKET, REAR SHOCK ABSORBER, LH

main48506-B5030iS500,510201409-201610

57703ABRACKET SUB-ASSY, REAR SUSPENSION ARM, FRONT RH

main57707-B5030iS500,510201409-201610

57704EBRACKET SUB-ASSY, REAR SUSPENSION ARM, FRONT LH

main57708-B5030iS500,510201409-201610

57725BSUPPORT, REAR SUSPENSION MEMBER MOUNTING, NO.2 RH

main57703-B5030iS500,510201409-201610

57726SUPPORT, REAR SUSPENSION MEMBER MOUNTING, NO.2 LH

main57703-B5030iS500,510201409-201610

58369JBRACKET, REAR FLOOR BRACE

main51755-B5020iS500,510201409-201610

19 parts on this diagram · 1 diagram in section
