897120
›

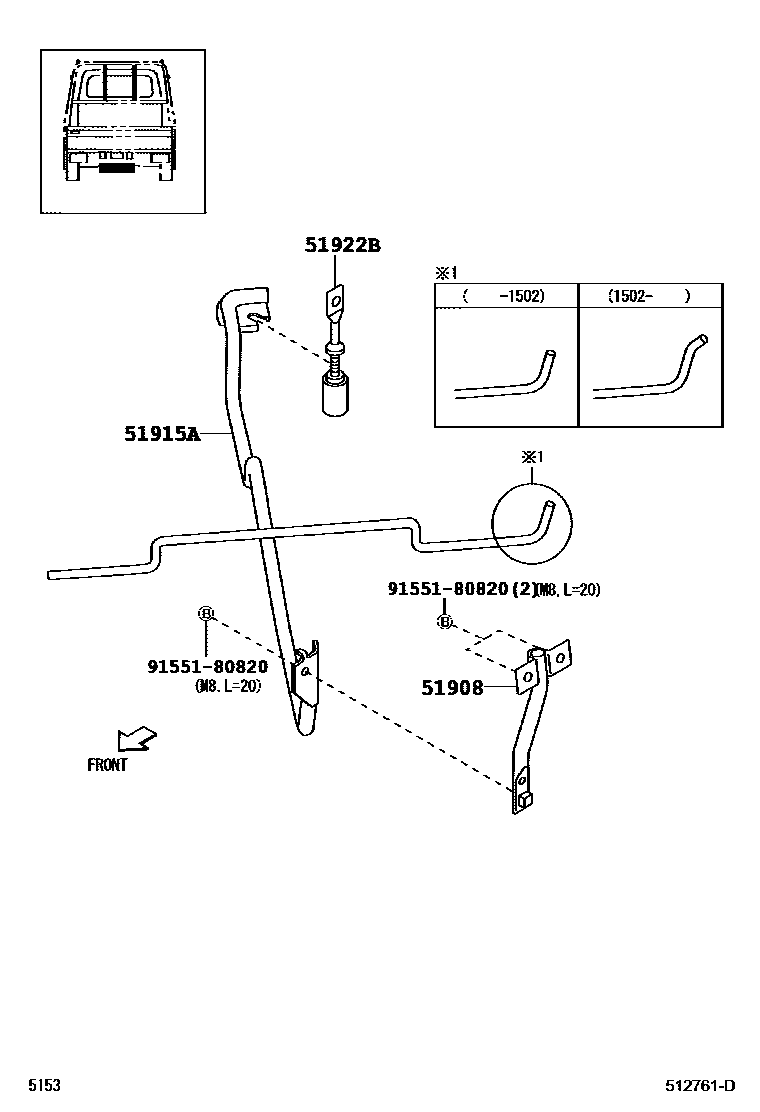

SPARE WHEEL CARRIER
SPARE WHEEL CARRIER
51908
BRACKET SUB-ASSY, SPARE WHEEL CARRIER
main
51908-B5010
i
S500,510
201409-201610
51915A
BASE, SPARE WHEEL CARRIER
main
51905-B5010
i
S500,510
201409-201502
sub
51905-B5011
main
51905-B5011
i
S500,510
201502-201606
sub
51905-B5012
main
51905-B5012
i
S500,510
201607-201908
sub
51905-B5013
main
51905-B5013
i
S500,510
201909
51922B
HANGER, SPARE WHEEL CARRIER
main
51902-B5010
i
S500,510
201409-201610
9155180820
main
91551-80820
4 parts on this diagram · 1 diagram in section
