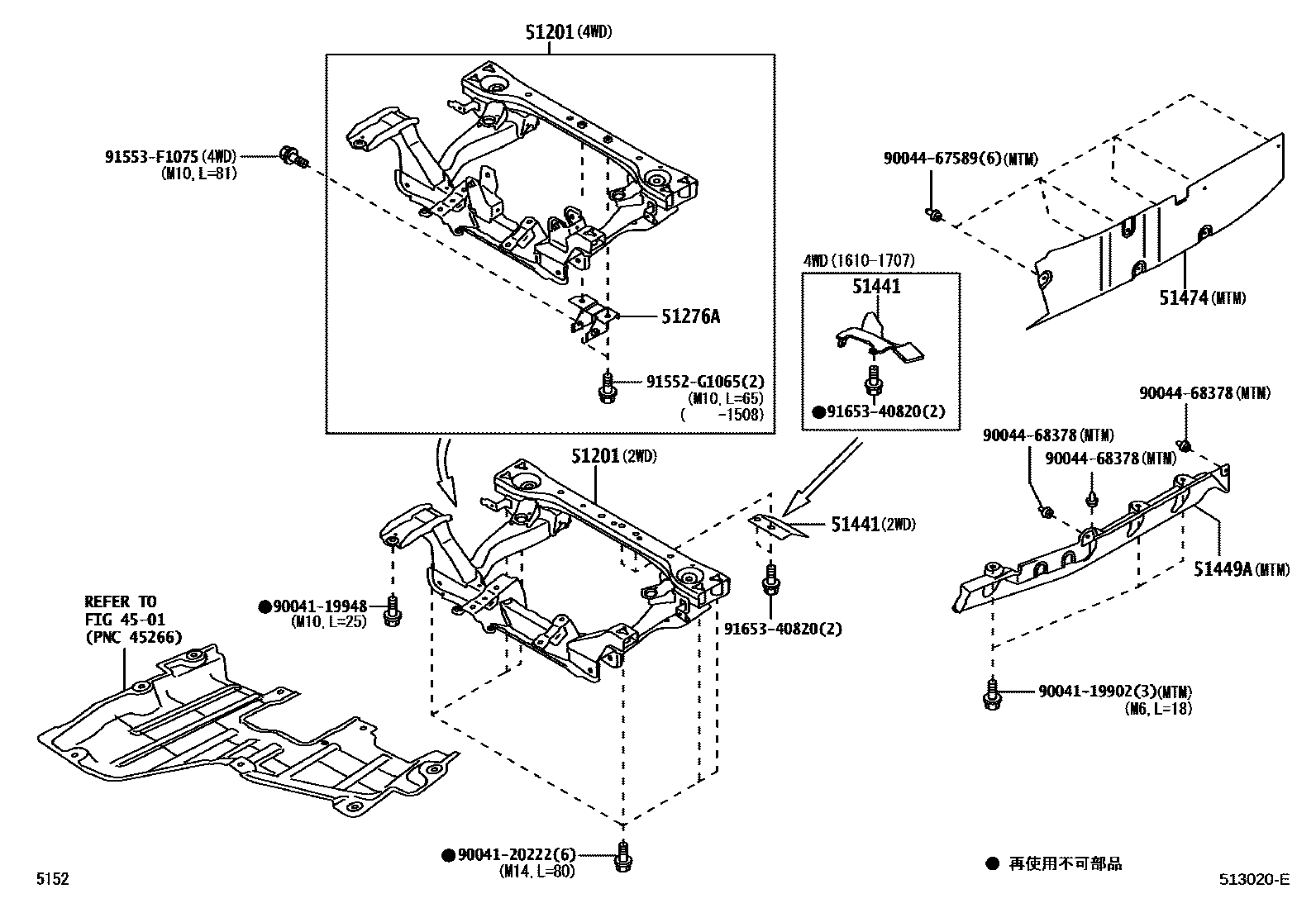

SUSPENSION CROSSMEMBER & UNDER COVER

4501

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-B5090iS500201409-201507

sub51201-B5091

main51201-B5091iS500201508-201610

main51201-B5101iS510201509-201608

sub51201-B5102

main51201-B5102iS510201609-201610

main51210-B5030iS510201409-201508

sub51201-B5101

51276ABRACKET, DIFFERENTIAL SUPPORT

main51626-B5020iS510201409-201508

51441COVER, ENGINE UNDER, NO.1

main51441-B5040iS500201409-201610

main51441-B5050iS510201610-201706

51449ACOVER, ENGINE SIDE UNDER, LH

main51449-B5030iS500,510..5MT201409-201610

51474COVER SUB-ASSY, ENGINE SIDE, LH

main53796-B5011iS500,510..5MT201409-201610

9004119902

main90041-19902

9004119948

main90041-19948

9004120222

main90041-20222

9004467589

main90044-67589

9004468378

main90044-68378

91552G1065

main91552-G1065

91553F1075

main91553-F1075

9165340820

main91653-40820

14 parts on this diagram · 1 diagram in section
