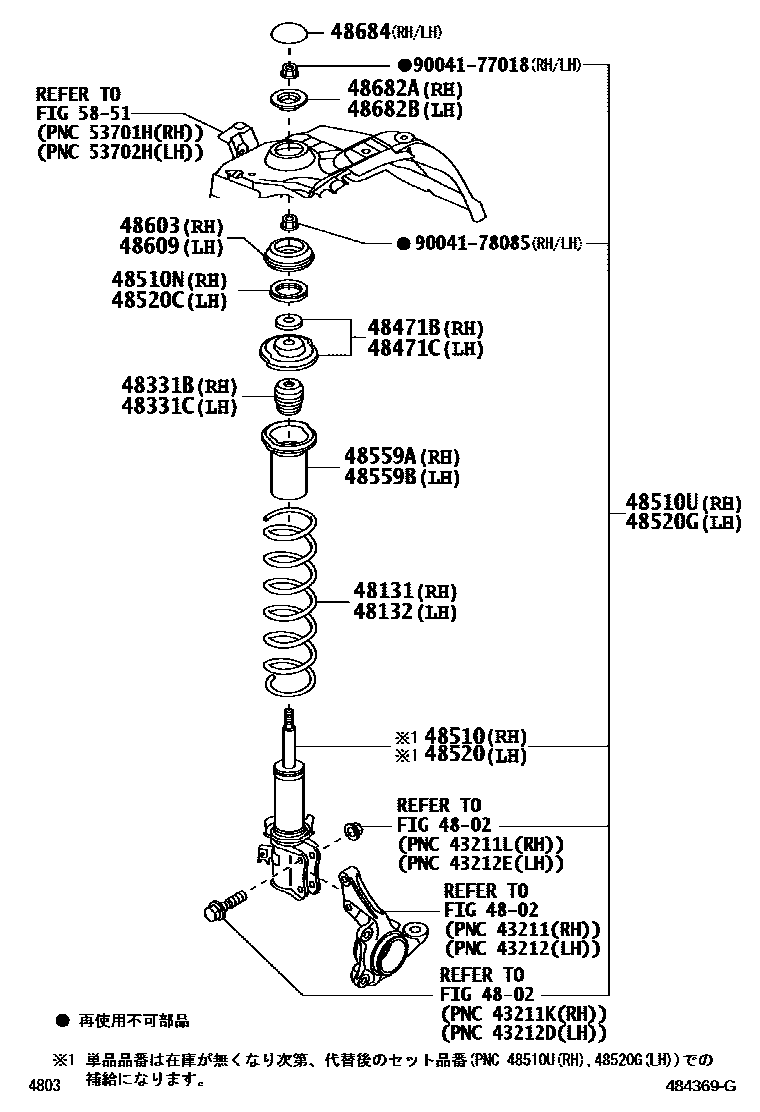

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-B5080iS500201409-201610

main48131-B5130iS510201610-202112

main48131-B5180iS510..SPL..5MT201409-201610

48132SPRING, FRONT COIL, LH

main48131-B5080iS500201409-201610

main48131-B5130iS510201409-201610

main48131-B5180iS510..SPL..5MT201610-201711

48331BBUMPER, FRONT SPRING, RH

main48331-B5010iS500,510201610

48331CBUMPER, FRONT SPRING, LH

main48331-B5010iS500,510201409-201610

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48470-97503iS500,510201409-201610

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48470-97503iS500,510201610

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-B5150supersedes 48510-B5140iS500,510201711

main48510-B5160iS510..5MT201610-201711

main48510-B5170iS510..SPL..5MT201409-201610

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main48143-87501iS500,510201409-201610

48510UABSORBER SET, SHOCK, FRONT RH

main48510-B9260supersedes 48510-B9255iS500,510201711

sub48510-B9261

main48510-B9265iS510..5MT201409-201610

main48510-B9270iS510..SPL..5MT201610-201711

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-B5150supersedes 48520-B5140iS500,510201711

main48520-B5160iS510..5MT201610-201711

main48520-B5170iS510..SPL..5MT201610-201711

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main48143-87501iS500,510201610

48520GABSORBER SET, SHOCK, FRONT LH

main48520-B9260supersedes 48520-B9255iS500,510201711

sub48520-B9261

main48520-B9265iS510..5MT201409-201610

main48520-B9270iS510..SPL..5MT201610-201711

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-87504iS500,510201409-201610

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-87504iS500,510201409-201610

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-B5030iS500,510201409-201610

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-B5030iS500,510201409-201610

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-B5010iS500,510201409-201610

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-B5010iS500,510201409-201610

48684COVER, BEARING DUST

main48684-52020×2iS500,510201409-201610

5851

9004177018

main90041-77018

9004178085

main90041-78085

23 parts on this diagram · 1 diagram in section
