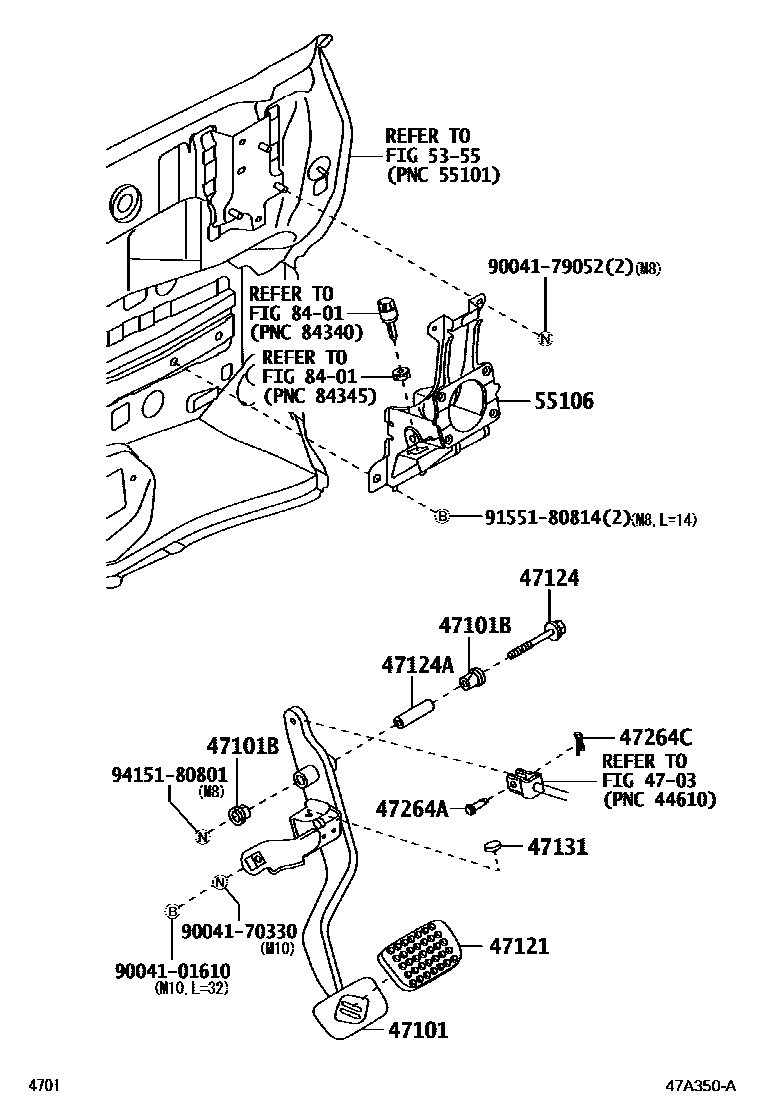

BRAKE PEDAL & BRACKET

4703

47101PEDAL SUB-ASSY, BRAKE

main47101-B5060iS500,510..5MT201409-202112

main47101-B5070iS500,510..4AT201409-202112

47101BBUSH(FOR BRAKE PEDAL)

main90043-86121iS500,510201409-201610

47121PAD, BRAKE PEDAL

main31321-87503iS500,510..5MT201409-201610

main47121-87202iS500,510..4AT201409-201610

47124SHAFT, BRAKE PEDAL

main91551-80865iS500,510201409-201610

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90045-60615iS500,510201409-201610

47131CUSHION(FOR STOP LAMP SWITCH)

main90045-40226iS500,510201409-201610

47264APIN(FOR PUSH ROD)

main90042-40151iS500,510201409-201610

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iS500,510201409-201610

5355

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-B5020iS500,510..5MT201409-201610

main55106-B5050iS500,510..4AT201409-201610

8401

9004101610

main90041-01610

9004170330

main90041-70330

9004179052

main90041-79052

9155180814

main91551-80814

9415180801

main94151-80801

17 parts on this diagram · 1 diagram in section
