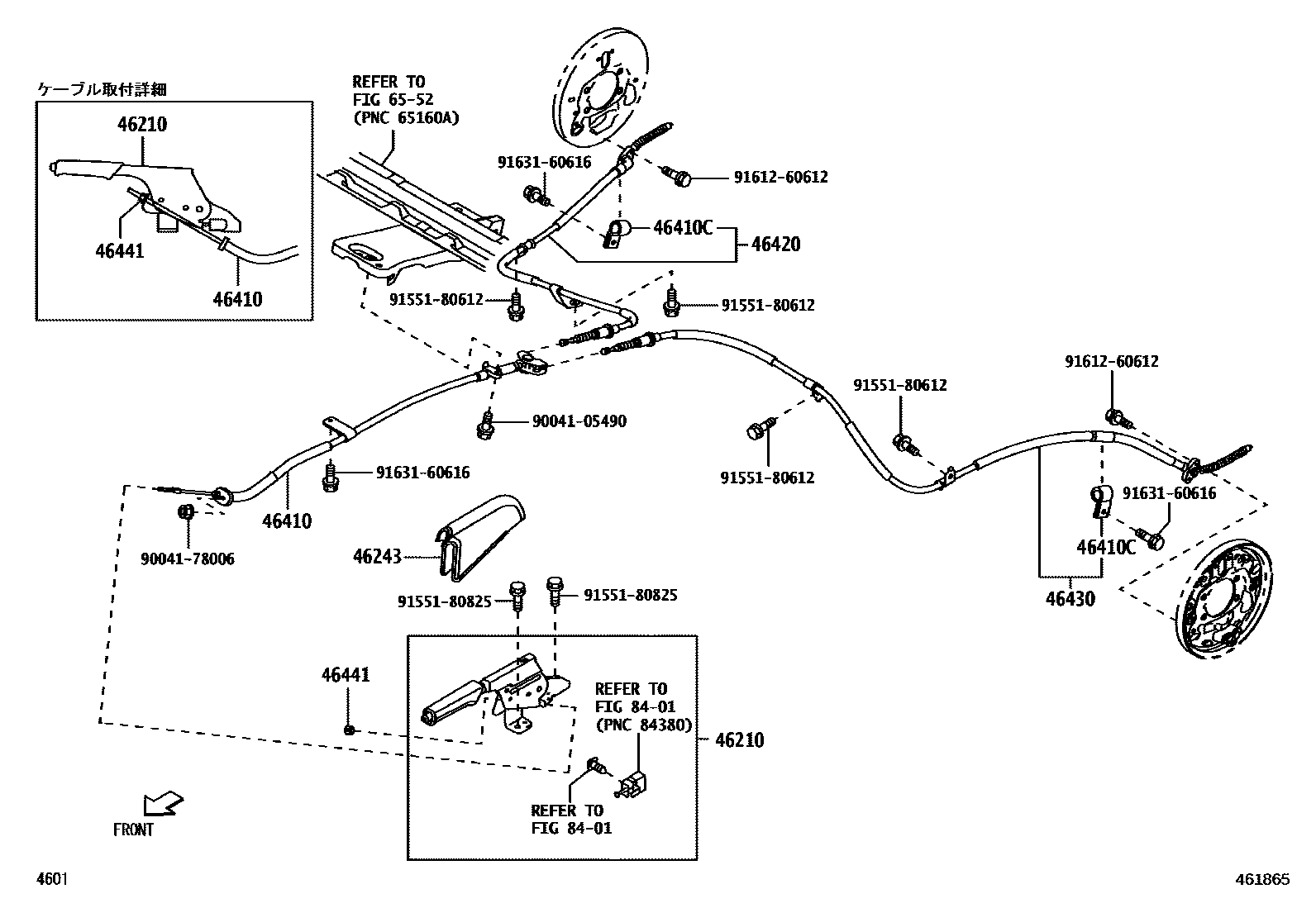

PARKING BRAKE & CABLE

46210LEVER ASSY, PARKING BRAKE

main46210-B5041-B1iS500,510201409-201711

DK.GRAY,TRIM1#

sub46210-B5100¥4,590

main46210-B5041-C0iS500,510201711-201911

BLACK,TRIM2#

sub46210-B5100¥4,590

main46210-B5100-C0iS500,510201911

BLACK,TRIM2#

46243COVER, PARKING BRAKE LEVER

main46243-97501-B1iS500,510201409-201711

DK.GRAY,TRIM1#

sub46243-B5010¥980

main46243-97501-C0iS500,510201711

BLACK,TRIM2#

sub46243-B5010¥980

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-B5050iS500,510¥3,510201409-201610

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-B5010iS500,510¥210201409-202112

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-B5090iS500,510¥5,300201409-201511

main46420-B5100iS500,510¥3,400201511-201610

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-B5060iS500,510¥5,300201409-201511

main46430-B5080iS500,510¥3,400201511-201610

46441NUT, WIRE ADJUSTING, NO.1

main94185-60600iS500,510¥70201409-201610

6552

8401

9004105490

main90041-05490¥140

9004178006

main90041-78006¥70

9155180612

main91551-80612¥60

9155180825

main91551-80825¥80

9161260612

main91612-60612¥200

9163160616

main91631-60616¥120

15 parts on this diagram · 1 diagram in section
