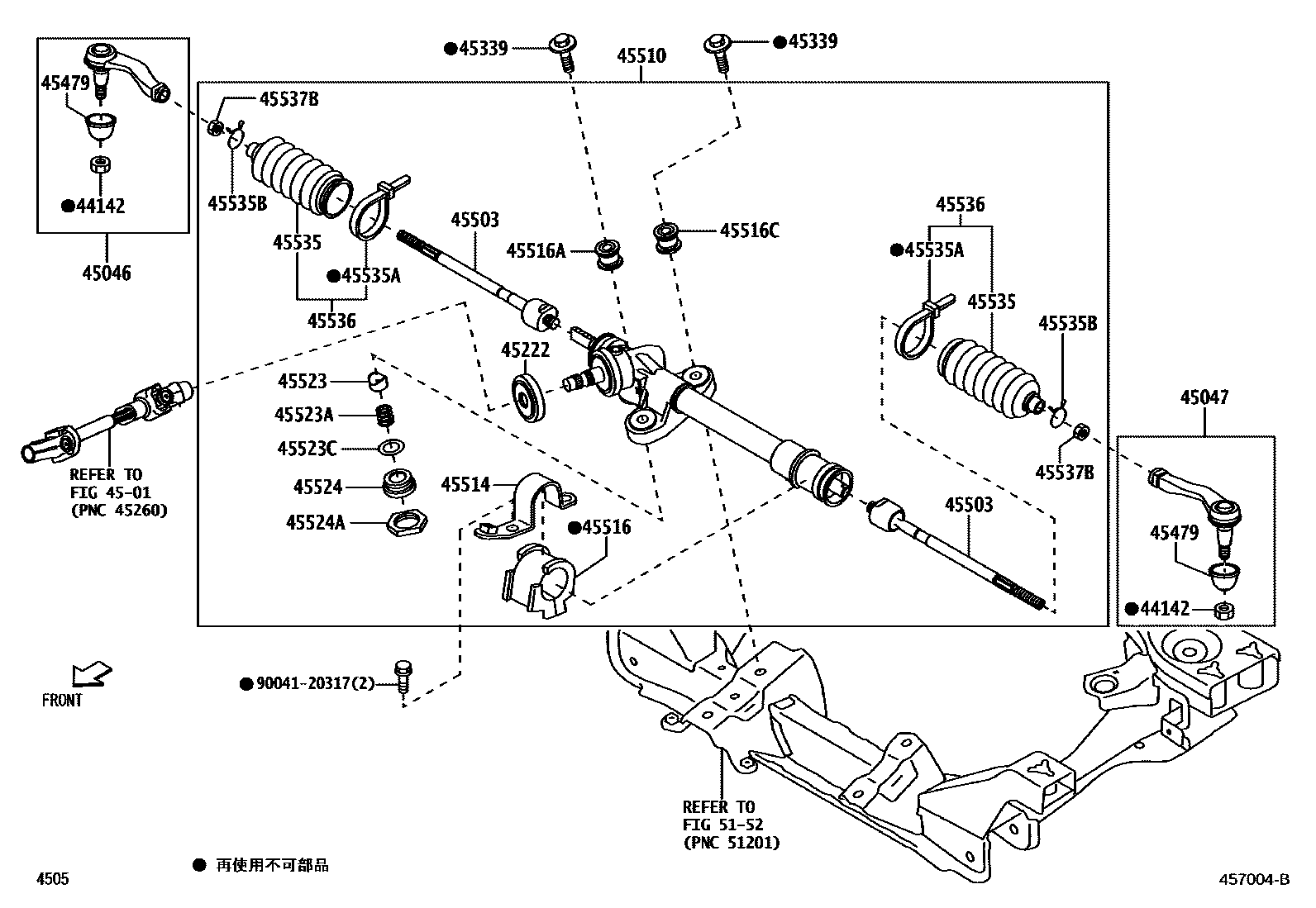

FRONT STEERING GEAR & LINK

44142NUT, LOCK

main90041-78058iS500,510201409-201610

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

45046END SUB-ASSY, TIE ROD, RH

main45047-B9090iS500,510201409-201610

45047END SUB-ASSY, TIE ROD, LH

main45046-B9110iS500,510201409-201610

45222COVER, STEERING GEAR DUST

main45222-B5020iS500,510201409-201610

45339BOLT, STEERING GEAR HOUSING

main90041-20183iS500,510201409-201610

45479SEAL, STEERING LINK JOINT DUST

main45479-87508iS500,510201409-201610

45503END SUB-ASSY, STEERING RACK

main45503-B5030iS500,510201409-201610

45510GEAR ASSY, STEERING

main45502-B5010iS500,510201409-201610

45514BRACKET, STEERING RACK HOUSING, NO.1

main45515-B5020iS500,510201409-201610

45516GROMMET, STEERING RACK HOUSING, NO.1

main45517-B5010iS500,510201409-201610

45516ABUSH, STEERING RACK HOUSING, NO.1

main45516-B5020iS500,510201409-201610

45516CBUSH, STEERING RACK HOUSING, NO.2

main45516-B5030iS500,510201409-201610

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-B1040iS500,510201409-201610

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90045-01455iS500,510201409-201610

45523CSPACER(FOR RACK GUIDE)

main90042-08038iS500,510201409-201610

45524CAP, STEERING RACK GUIDE SPRING

main45524-B1010iS500,510201409-201610

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90041-70378iS500,510201409-201610

45535BOOT, STEERING RACK, NO.1

main45535-B5010iS500,510201409-201610

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-B2020iS500,510201409-201610

45535BCLIP(FOR STEERING RACK BOOT)

main45537-97201iS500,510201409-201610

45536BOOT, STEERING RACK, NO.2

main45535-B9020iS500,510201409-201610

45537BNUT, RACK END LOCK

main90041-70402iS500,510202004

main94130-61200iS500,510201409-202003

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

9004120317

main90041-20317

25 parts on this diagram · 1 diagram in section
