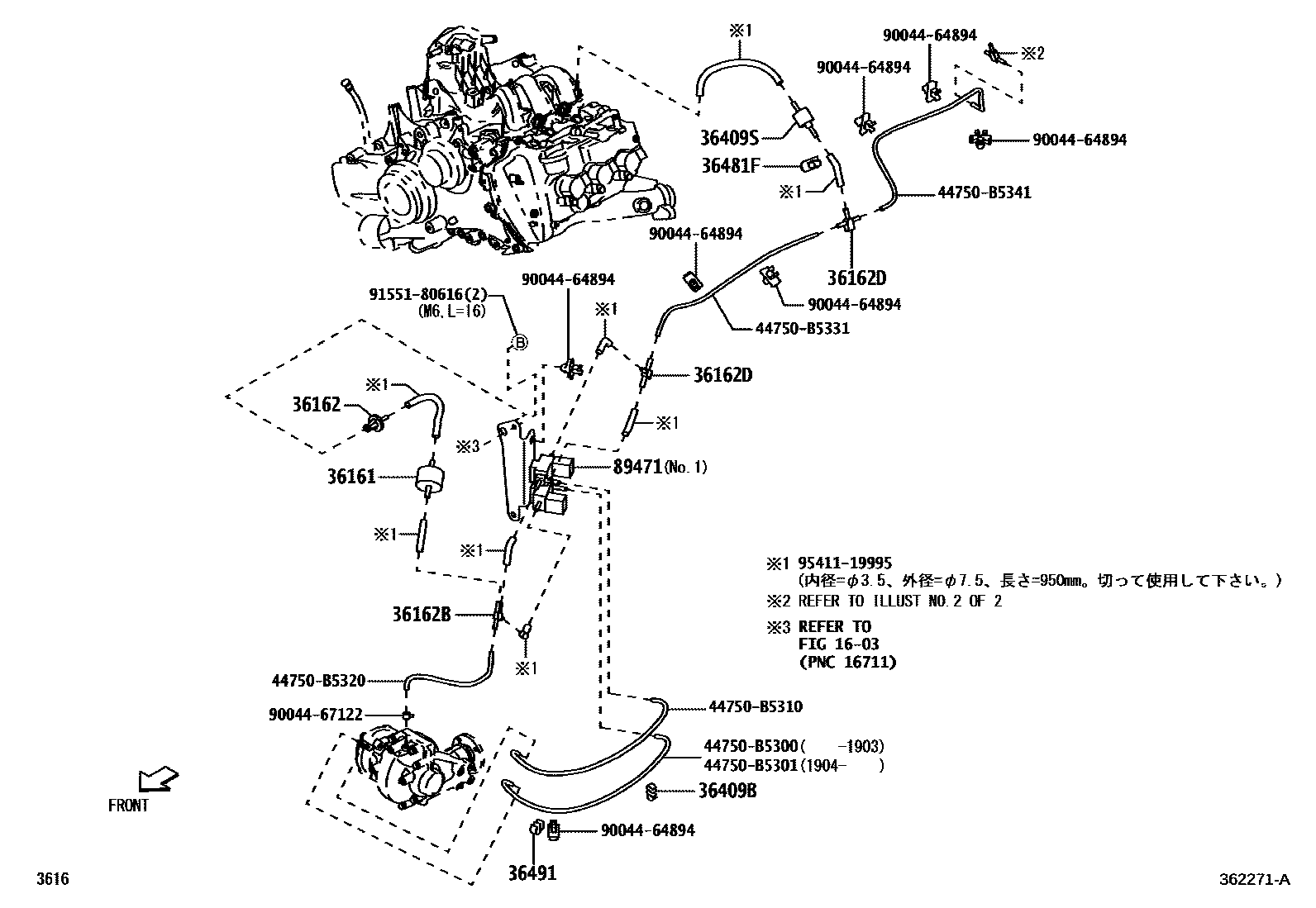

TRANSFER VACUUM PIPING

0001 1 0002 1������ �� 0004 1������ �� 0005 1

1603

36161FILTER ASSY, AIR(FOR FRONT)

main90048-24010×2iS510201409-201610

36162WAY, 2(FOR FRONT CHECK VALVE)

main90044-12061iS510201610

36162BWAY, 4(FOR TRANSFER VACUUM)

main90044-14015×2iS510..EXT..5MT201610

36162DWAY, 3(FOR REAR CHECK VALVE)

main90044-13053×3iS510..EXT..5MT201610

36409BCLAMP, VACUUM TUBE

main90044-64110iS510201409-201610

36409SVALVE, CHECK (FOR FRONT DRIVE SHIFT)

main90048-20008iS510201409-201610

36481FCLAMP, NO.3(FOR TRANSFER VACUUM)

main90044-64761iS510201409-201610

36491CLAMP, TRANSFER VACUUM TUBE, N0.1

main90044-64108iS510..EXT..5MT201409-201610

89471VALVE ASSY, VACUUM SWITCHING

main89470-B5080iS510201610

sub89470-B5180

main89470-B5090iS510201409-201610

sub89470-B5190

44750B5300HOSE ASSY, VACUUM

main44750-B5300

44750B5301HOSE ASSY, VACUUM

main44750-B5301

44750B5310HOSE ASSY, VACUUM

main44750-B5310

44750B5320HOSE ASSY, VACUUM

main44750-B5320

44750B5331HOSE ASSY, VACUUM

main44750-B5331

44750B5341HOSE ASSY, VACUUM

main44750-B5341

9004464894

main90044-64894

9004467122

main90044-67122

9155180616

main91551-80616

9541119995

main95411-19995

20 parts on this diagram · 4 diagrams in section
