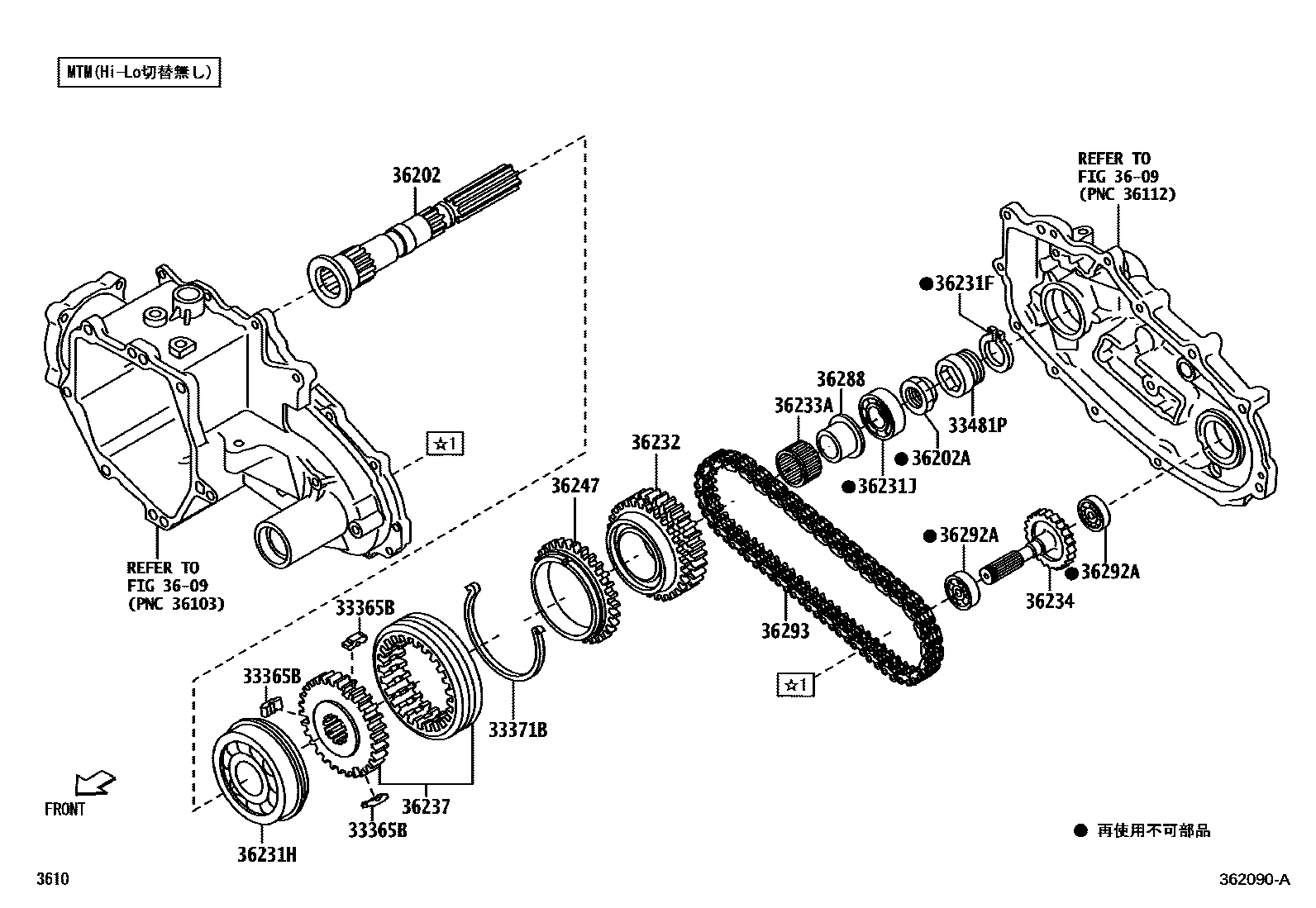

TRANSFER GEAR
33365BKEY, SYNCHROMESH SHIFTING, NO.1
33371BSPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER)
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
3609
36202SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR
36202ANUT(FOR TRANSFER OUTPUT REAR SHAFT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
36231HBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36232GEAR, TRANSFER FRONT DRIVE
36233ABEARING, NEEDLE ROLLER (FOR TRANSFER DRIVE GEAR)
36234SHAFT, TRANSFER OUTPUT, FRONT
36237HUB, TRANSFER CLUTCH
36247RING, TRANSFER SYNCHRONIZER
36288RACE, TRANSFER THRUST BEARING, NO.1
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
36293CHAIN, TRANSFER FRONT DRIVE
17 parts on this diagram · 3 diagrams in section
