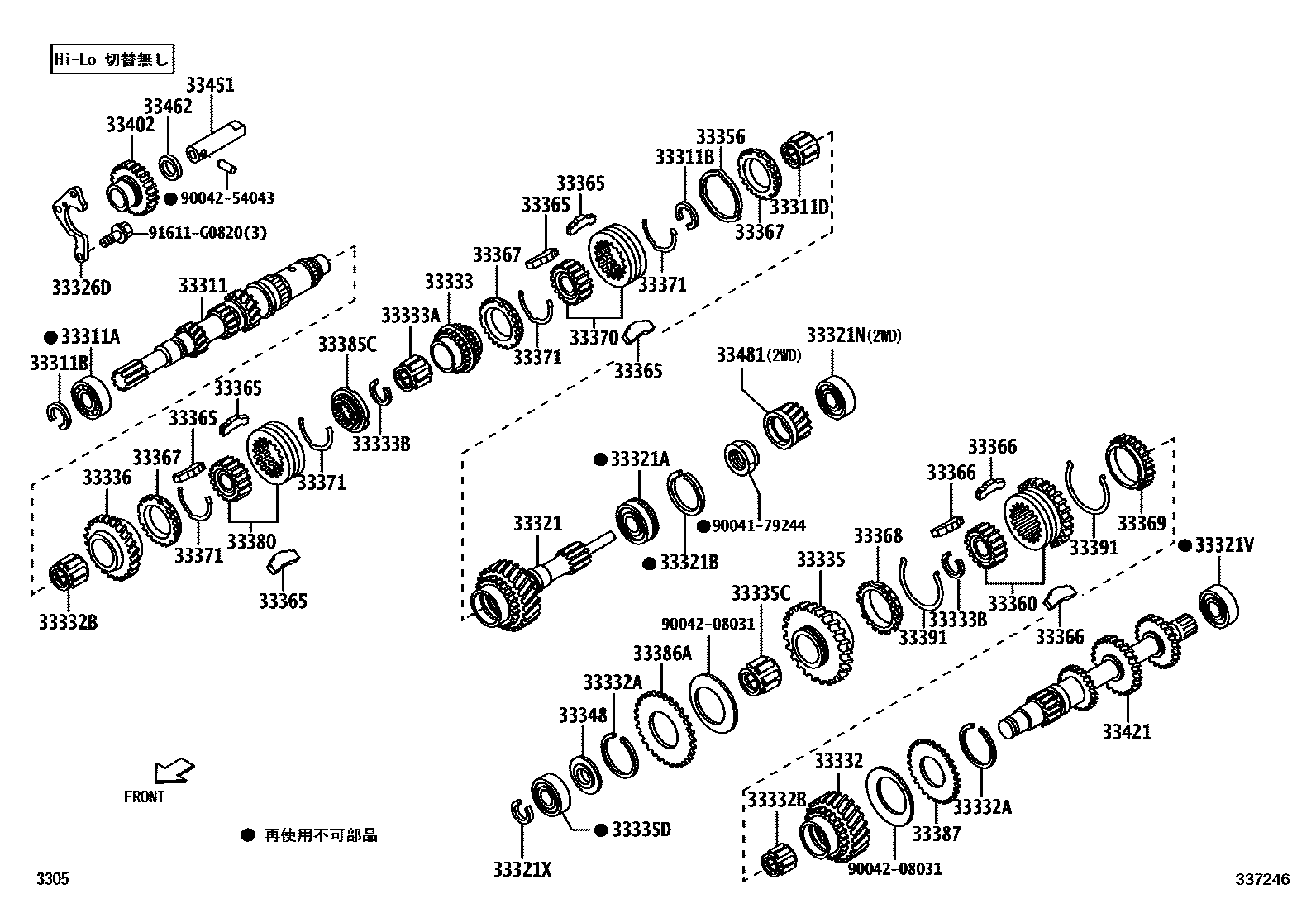

TRANSMISSION GEAR (MTM)

0001 1HI-LO ������ 0002 1HI-LO ������

33311SHAFT, INPUT

main33311-B5030iS500,510..5MT201610

33311ABEARING (FOR INPUT SHAFT FRONT)

main90043-63227iS500,510..5MT201409-201610

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90045-20271×2iS500,510..5MT201610

main90045-20272×2iS500,510..5MT201610

main90045-20273×2iS500,510..5MT201610

main90045-20274×2iS500,510..5MT201409-201610

main90045-20275×2iS500,510..5MT201610

main90045-20276×2iS500,510..5MT201610

main90045-20277×2iS500,510..5MT201409-201610

main90045-20278×2iS500,510..5MT201409-201610

33311DBEARING, INPUT SHAFT

main90043-64134iS500,510..5MT201409-201610

33321SHAFT, OUTPUT

main33321-87527iS500..5MT201409-201610

main33321-87528supersedes 33321-B5010iS510..SPL..5MT201409-201610

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90043-63234iS500,510..5MT201409-201610

33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90045-21157iS500,510..5MT201610

33321NBEARING (FOR OUTPUT SHAFT FRONT)

main90043-63226iS500..5MT201409-201610

33321VBEARING (FOR OUTPUT SHAFT CENTER)

main90043-63283iS500,510..5MT201409-201610

33321XRING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)

main90045-20279iS500,510..5MT201610

main90045-20280iS500,510..5MT201610

main90045-20281iS500,510..5MT201409-201610

main90045-20282iS500,510..5MT201610

main90045-20283iS500,510..5MT201409-201610

main90045-20284iS500,510..5MT201409-201610

main90045-20285iS500,510..5MT201610

main90045-20286iS500,510..5MT201409-201610

33326DPLATE, INPUT SHAFT BEARING LOCK

main33326-87501iS500,510..5MT201610

33332GEAR, 2ND

main33332-B5020iS500,510..5MT201610

33332ARING, SHAFT SNAP (FOR 2ND GEAR)

main90045-20107×2iS500,510..5MT201409-201610

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90043-64119×2iS500,510..5MT201409-201610

main90043-64130×2iS500,510..5MT201409-201610

33333GEAR, 3RD

main33333-87517iS500,510..5MT201409-201610

main33333-87518iS500..SPL..5MT201610-202009

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90043-64136iS500,510..5MT201409-201610

33333BRING, SHAFT SNAP (FOR 3RD REAR)

main90045-20263×2iS500,510..5MT201610

main90045-20264×2iS500,510..5MT201610

main90045-20265×2iS500,510..5MT201610

main90045-20266×2iS500,510..5MT201409-201610

main90045-20267×2iS500,510..5MT201409-201610

main90045-20268×2iS500,510..5MT201409-201610

main90045-20269×2iS500,510..5MT201610

main90045-20270×2iS500,510..5MT201610

33335GEAR, 1ST

main33335-87518iS500,510..5MT201409-201610

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90043-64034iS500,510..5MT201409-201610

33335DBEARING(FOR 1ST GEAR)

main90043-63391iS500,510..5MT201409-201610

main90043-63408iS500..EXT..5MT;S510..SPL..5MT201610-201711

33336GEAR, 5TH

main33336-B5020iS500,510..5MT201409-201610

main33336-B5010iS500..5MT;S510..SPL..5MT201412-201610

33348WASHER, 1ST GEAR THRUST

main33348-87508iS500,510..5MT201610

33356SPRING, WAVE

main33356-87501iS500,510..5MT201409-201610

33360HUB ASSY, SYNCHRONIZER, NO.1

main33360-87512iS500,510..5MT201409-201610

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-87702×6iS500,510..5MT201409-201610

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-87505×3iS500,510..5MT201409-201610

33367RING, SYNCHRONIZER, NO.1

main33367-87507×3iS500,510..5MT201409-201610

33368RING, SYNCHRONIZER, NO.2

main33368-87509iS500,510..5MT201409-201610

33369RING, SYNCHRONIZER, NO.3

main33369-87703iS500,510..5MT201409-201610

33370HUB ASSY, SYNCHRONIZER, NO.2

main33370-B5010iS500,510..5MT201409-201610

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-87505×4iS500,510..5MT201409-201610

33380HUB ASSY, SYNCHRONIZER, NO.3

main33380-B5010iS500,510..5MT201610

33385CSTOPPER, HUB SLEEVE

main33385-87504iS500,510..5MT201409-201610

33386ASUB-GEAR, 1ST

main33386-87502iS500,510..5MT201409-201610

33387SUB-GEAR, NO.2

main33387-87502iS500,510..5MT201409-201610

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33391-87701×2iS500,510..5MT201610

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-B0020iS500,510..5MT201409-201610

33421GEAR, COUNTER

main33421-B5020iS500,510..5MT201610

main33421-87537iS500..EXT..5MT;S510..SPL..5MT201610-201711

33451SHAFT, REVERSE IDLER GEAR

main33451-87504iS500,510..5MT201610

33462WASHER, REVERSE IDLER THRUST

main33462-87501iS500,510..5MT201409-201610

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-B5020supersedes 33481-87528iS500..5MT201412-201610

main33481-B5021iS500..SPL..5MT201711-202009

9004179244

main90041-79244

9004208031

main90042-08031

9004254043

main90042-54043

91611G0820

main91611-G0820

45 parts on this diagram · 2 diagrams in section
