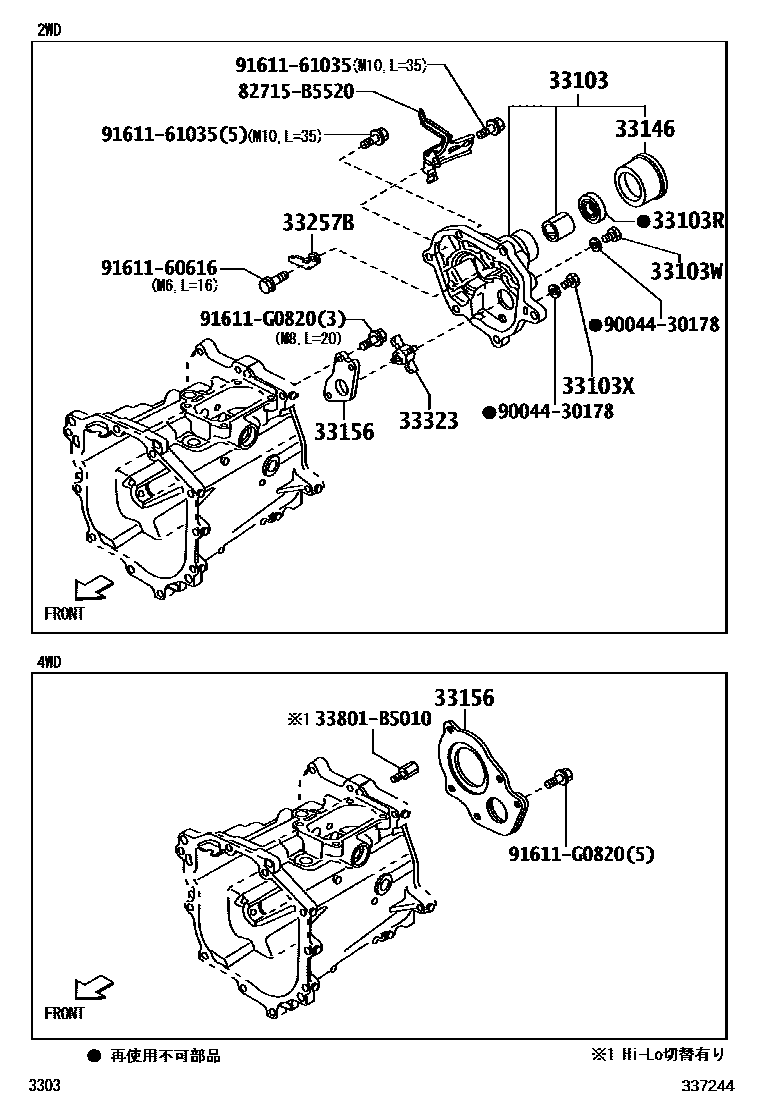

EXTENSION HOUSING (MTM)

0001 1 0002 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-97502iS500..5MT201409-201502

sub33103-B5030

main33103-B5031iS500..5MT201711

main33103-B5010supersedes 33103-B5030iS500..5MT201412-201610

main33103-B5011iS500..SPL..5MT201711-202009

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90043-11309iS500..5MT201409-201610

33103WPLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-16012iS500..5MT201409-201610

33103XPLUG(FOR MANUAL TRANSMISSION DRAIN)

main90341-16012iS500..5MT201409-201610

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-87504iS500..5MT201409-201502

main33146-B5010iS500..5MT201503-201610

33156RETAINER, OUTPUT SHAFT REAR BEARING

main33151-97501iS500..5MT201610

main33151-97502supersedes 33151-97501iS510..5MT201610

33257BPLATE, GEAR OIL

main35257-87501iS500..5MT201409-201610

33323SLINGER, OUTPUT SHAFT OIL

main33467-87501iS500..5MT201409-201610

33801B5010

main33801-B5010

82715B5520BRACKET,WIRING HARNESS CLAMP

main82715-B5520

9004430178

main90044-30178

9161160616

main91611-60616

9161161035

main91611-61035

91611G0820

main91611-G0820

14 parts on this diagram · 2 diagrams in section
