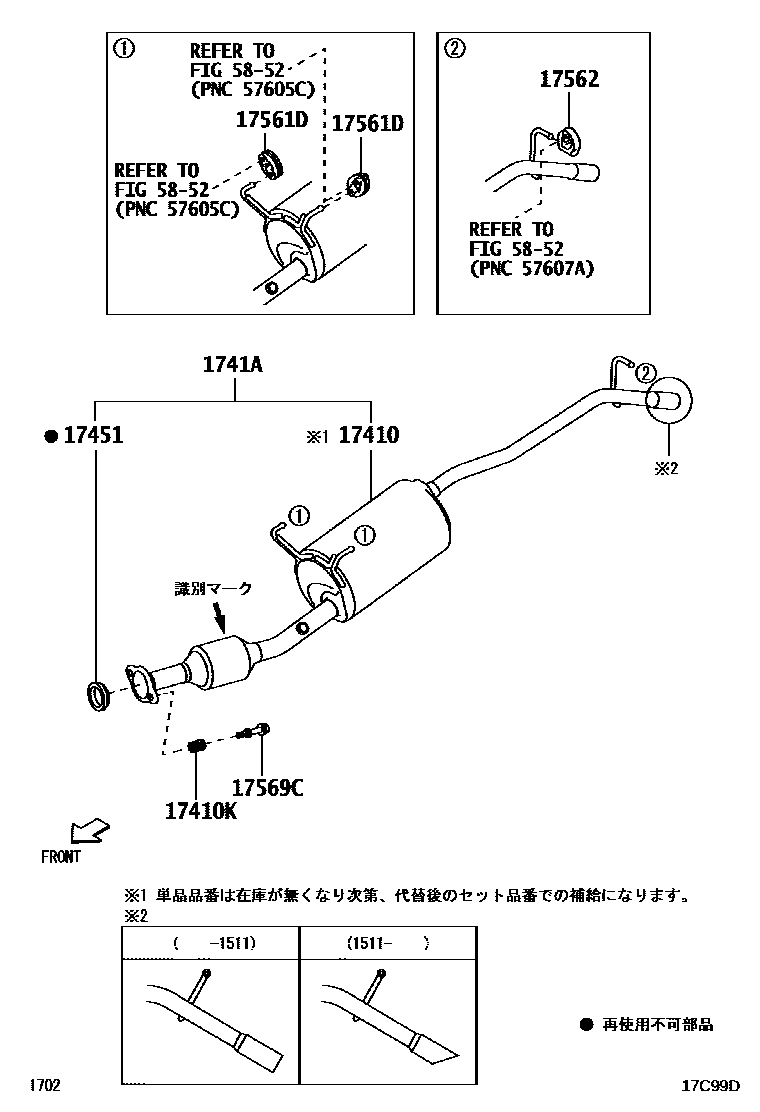

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17400-B5130iKFVE..S500,510201511-202008

main17400-B5230iKFVE..S500,510201409-201511

sub17400-B9350

17410KSPRING, EXHAUST PIPE

main17152-97503iKFVE..S500,510201409-201610

1741APIPE SET, EXHAUST

main17400-B9340iKFVE..S500,510201511-202009

main17400-B9350iKFVE..S500,510201409-201511

main17400-B9400iKFVE..S500,510202009

17451GASKET, EXHAUST PIPE

main17451-B5020iKFVE..S500,510201409-201610

17561DSUPPORT, EXHAUST PIPE, NO.1

main17567-B2010iKFVE..S500,510201409-201610

17562SUPPORT, EXHAUST PIPE, NO.2

main17567-87208iKFVE..S500,510201409-201610

17569CBOLT, EXHAUST PIPE SUPPORT

main17569-97501iKFVE..S500,510201409-201610

5852

8 parts on this diagram · 1 diagram in section
