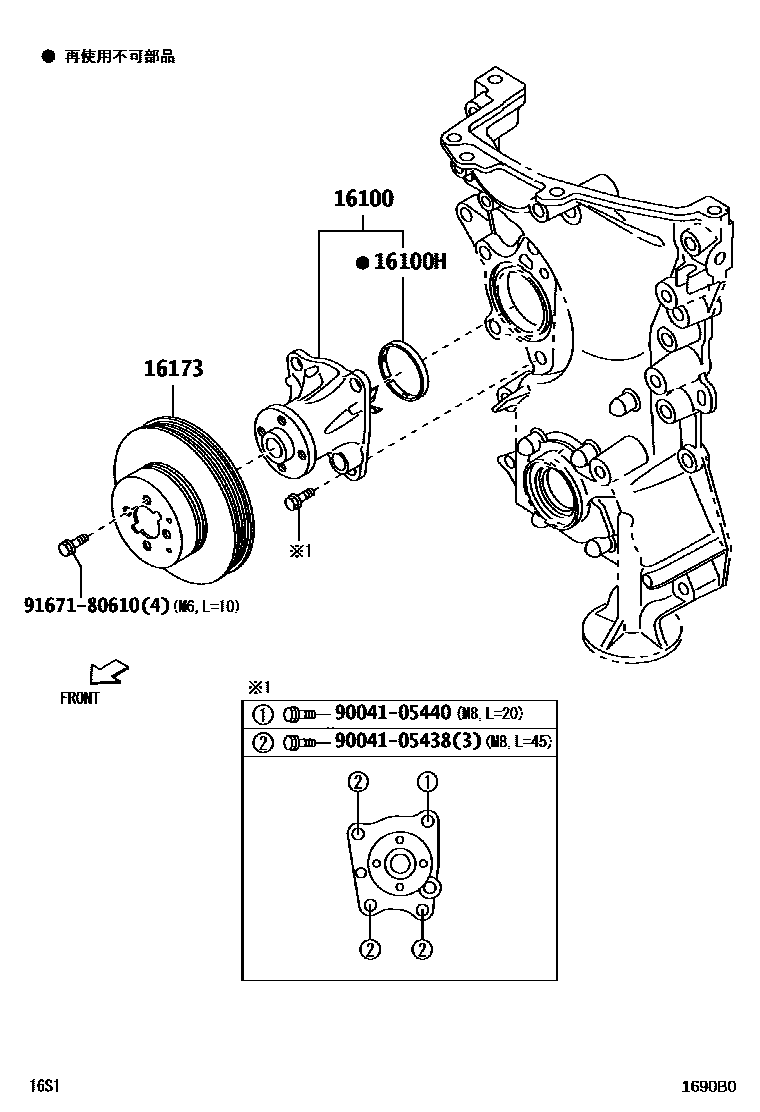

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-B9455iKFVE..S500,510201409-201510

sub16100-B9457

main16100-B9457iKFVE..S500,510201510-201511

sub16100-B9458

main16100-B9458iKFVE..S500,510201512-201601

sub16100-B9459

sub16100-B9500

main16100-B9500iKFVE..S500,510201602-201610

16100HRING, O(FOR WATER PUMP)

main90043-01323iKFVE..S500,510201409-201610

16173PULLEY, WATER PUMP

main16173-B2034iKFVE..S500,510201409-201610

9004105438

main90041-05438

9004105440

main90041-05440

9167180610

main91671-80610

6 parts on this diagram · 1 diagram in section
