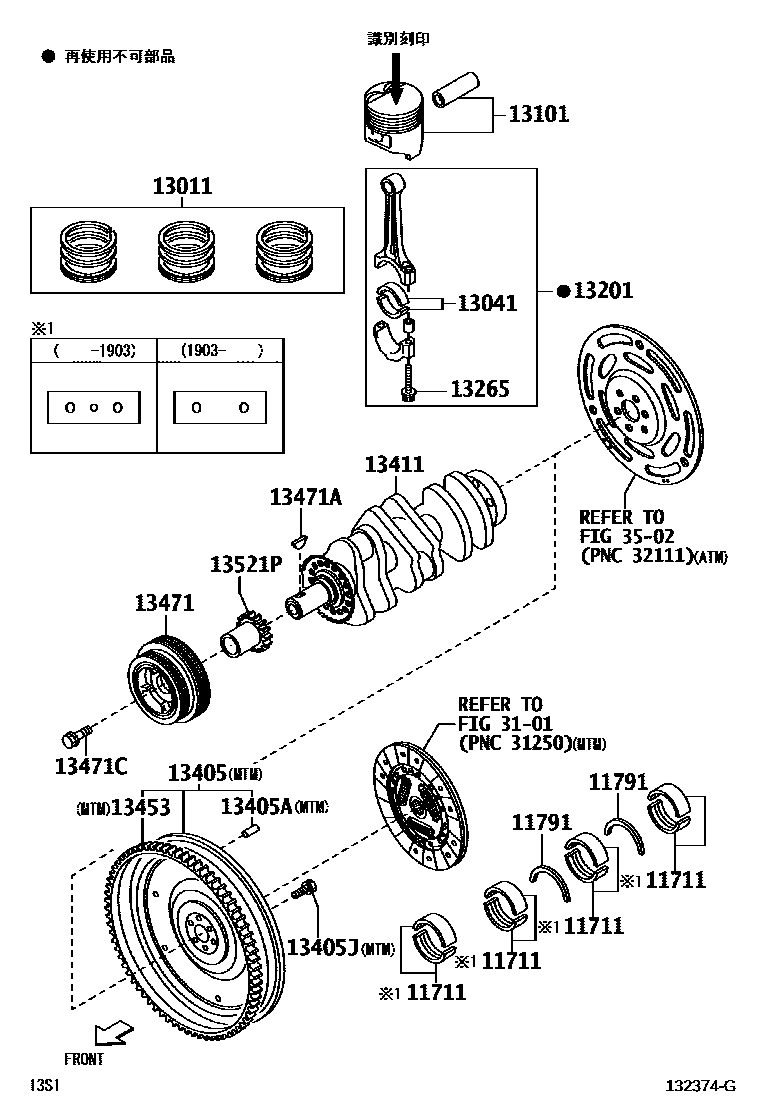

CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-B2011-02×4iKFVE..S500,510201610-201903

main11701-B2011-03×4iKFVE..S500,510201610-201903

main11701-B2011-04×4iKFVE..S500,510201610-201903

main11701-B2011-05×4iKFVE..S500,510201409-201610

main11701-B2040-02×4iKFVE..S500,510201903-202112

main11701-B2040-03×4iKFVE..S500,510201903-202112

main11701-B2040-04×4iKFVE..S500,510201903-202112

main11701-B2040-05×4iKFVE..S500,510201903-202112

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-B2010×2iKFVE..S500,510201610

13011RING SET, PISTON

main13011-B2043iKFVE..S500,510201610-202108

sub13011-B2170

main13011-B2150iKFVE..S500,510202108

13041BEARING, CONNECTING ROD

main13041-B2010-01×3iKFVE..S500,510201610-202112

main13041-B2010-02×3iKFVE..S500,510201610-202112

main13041-B2010-03×3iKFVE..S500,510201610-202112

13101PISTON SUB-ASSY, W/PIN

main13101-B2180×3iKFVE..S500,510201409-201509

main13101-B2181×3iKFVE..S500,510201510-201610

main13101-B2232×3iKFVE..S500,510201707

13201ROD SUB-ASSY, CONNECTING

main13201-B9060×3iKFVE..S500,510201409-201610

13265BOLT, CONNECTING ROD

main13265-B9020×6iKFVE..S500,510201409-201610

13405FLYWHEEL SUB-ASSY

main13405-B2040iKFVE..S500,510..5MT201409-201610

main13405-B5010iKFVE..S500,510..5MT201707

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90042-50152×3iKFVE..S500,510..5MT201409-201610

13405JBOLT(FOR FLYWHEEL)

main90048-01037×6iKFVE..S500,510..5MT201409-201610

13411CRANKSHAFT

main13401-B2010iKFVE..S500,510201409-201610

main13401-B2050iKFVE..S500,510201903

13453GEAR, FLYWHEEL RING

main13453-B2050iKFVE..S500,510..5MT201409-201610

main13453-B5010iKFVE..S500,510..5MT201707

13471PULLEY, CRANKSHAFT

main13470-B2020iKFVE..S500,510201409-201610

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90042-80034iKFVE..S500,510201409-201610

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90041-05369iKFVE..S500,510201409-201610

main90041-05587iKFVE..S500,510201901

13521PPULLEY, CRANKSHAFT TIMING

main13521-B2020iKFVE..S500,510201409-201610

3101

3502

18 parts on this diagram · 1 diagram in section
