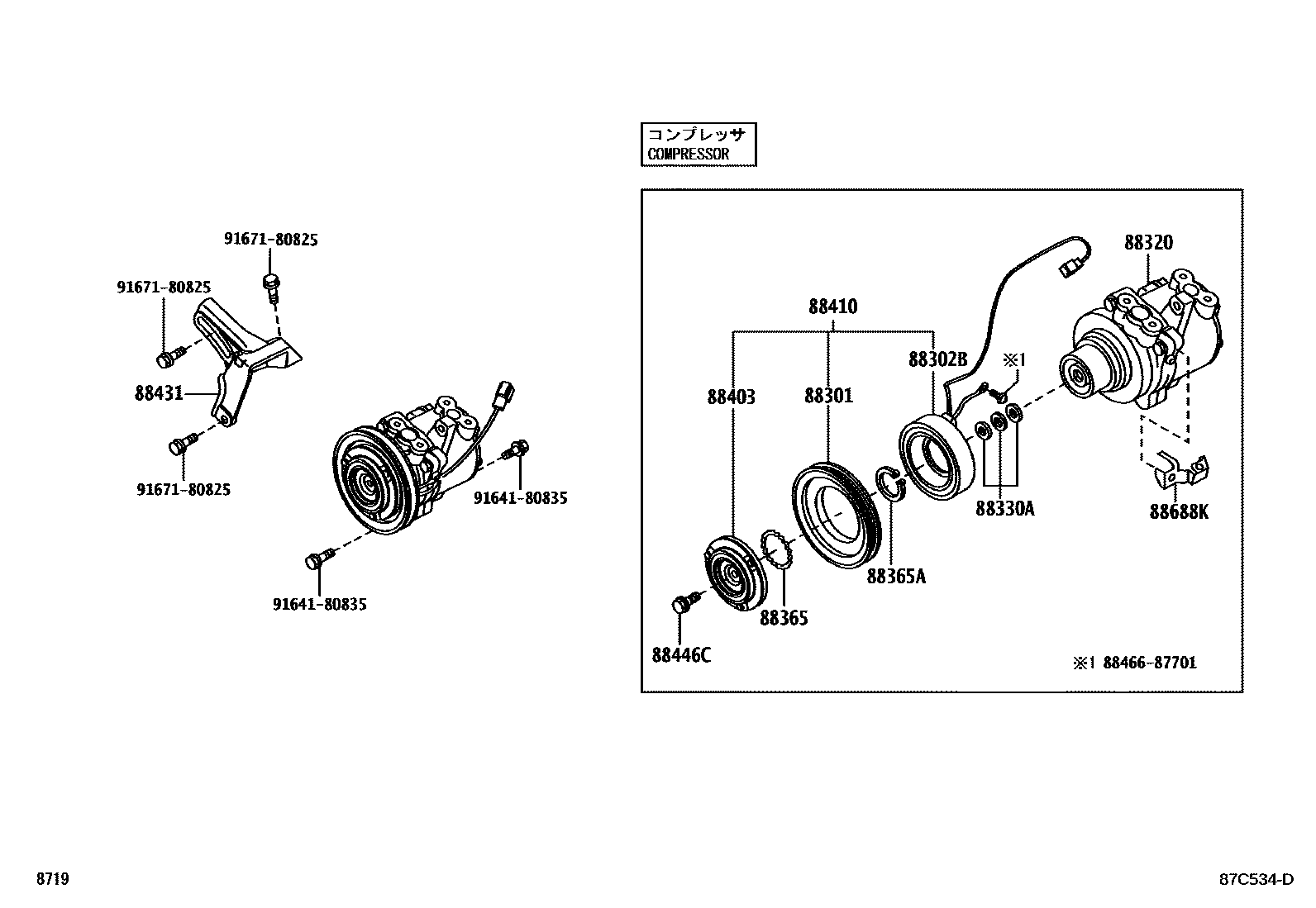

HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-B5020iS201,211..EXT201112-201409

88302BSTATOR, MAGNET CLUTCH

main88411-87264iS201,211..EXT201112-201409

88320COMPRESSOR ASSY, COOLER

main88320-B5020iS201,211..EXT201112-201409

88330AWASHER (FOR MAGNET CLUTCH)

main88318-87704iS201,211..EXT¥0201112-201409

main88318-87704iS201,211..EXT¥0201112-201409

main88318-87705iS201,211..EXT¥0201112-201409

main88318-87705iS201,211..EXT¥0201112-201409

main88318-87706iS201,211..EXT¥0201112-201409

main88318-87706iS201,211..EXT¥0201112-201409

88365RING, SNAP

main90099-07125iS201,211..EXT¥250201112-201409

88365ARING, SNAP (FOR COMPRESSOR)

main88365-87201iS201,211..EXT201112-201409

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-97201iS201,211..EXT201112-201409

88410CLUTCH ASSY, MAGNET

main88410-B5020iS201,211..EXT¥24,600201112-201409

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-B5030iS201,211..EXT201112-201409

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iS201,211..EXT201112-201409

88688KBRACKET, COOLER COMPRESSOR

main88688-B5010iS201,211..EXT201112-201409

8846687701

main88466-87701

9164180835

main91641-80835¥140

9167180825

main91671-80825¥80

14 parts on this diagram · 1 diagram in section
