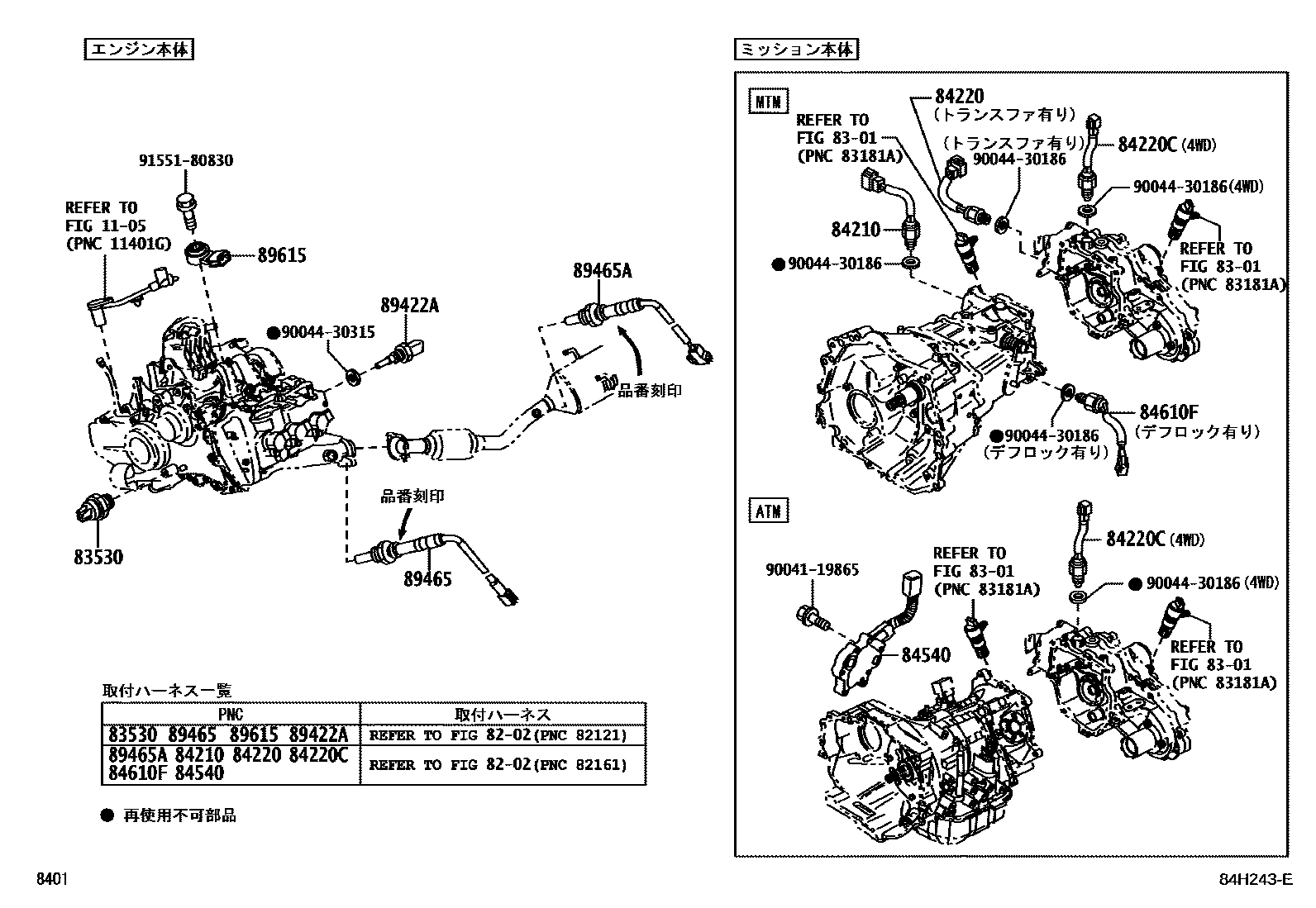

SWITCH & RELAY & COMPUTER

0001 1����� 0002 1�������� 0003 1������������ 0004 1������������ 0005 1������� 0006 1�����

1105

8202

8301

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-B2010iS201,211201112-201407

84210SWITCH ASSY, BACK-UP LAMP

main84210-B4010iS201,211..MTM201112

84220SWITCH ASSY, TRANSFER LEVER SELECT

main84220-B5020iS211..MTM..EXT201112

84220CSWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-B5010iS211201112

84540SWITCH ASSY, NEUTRAL START

main84540-B5020iS201,211..ATM201112

84610FSWITCH ASSY, TRANSMISSION SHIFT

main84610-B5010iS211..MTM..EXT201112

main84610-B5010iS211..MTM..EXT201112

89422ASENSOR, WATER TEMPERATURE

main89422-16010iS201,211201112-201407

89465SENSOR, OXYGEN

main89465-B2100iS201,211201112-201208

sub89465-B2101

main89465-B2101iS201,211201208-201407

89465ASENSOR, OXYGEN NO.2

main89465-B5041iS201,211201112-201211

sub89465-B5042

main89465-B5042iS201,211201212-201407

89615SENSOR, KNOCK CONTROL

main89615-20090iS201,211201112-201407

9004119865

main90041-19865

9004430186

main90044-30186

9004430315

main90044-30315

9155180830

main91551-80830

17 parts on this diagram · 6 diagrams in section
