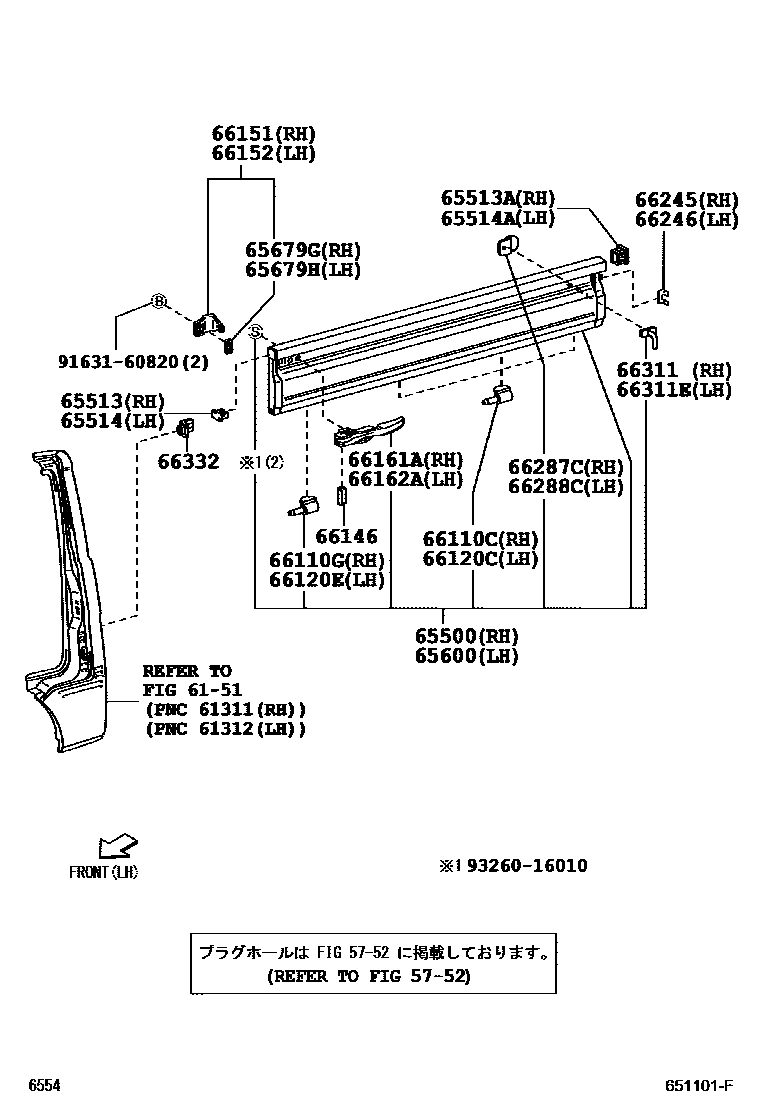

REAR BODY SIDE PANEL
5752
6151
65500PANEL ASSY, REAR BODY SIDE, RH
sub65001-B5011
sub65001-B5012
sub65001-B5021
sub65001-B5021
sub65001-B5022
sub65001-B5032
sub65001-B5032
65513LID, TOP RAIL, FRONT RH
65513ALID, TOP RAIL, REAR RH
65514LID, TOP RAIL, FRONT LH
65514ALID, TOP RAIL, REAR LH
65600PANEL ASSY, REAR BODY SIDE, LH
sub65002-B5011
sub65002-B5012
sub65002-B5021
sub65002-B5021
sub65002-B5022
sub65002-B5032
sub65002-B5032
65679GSEAL, SIDE GATE
65679HSEAL, SIDE GATE
66110CHINGE ASSY, SIDE GATE, NO.1 RH
66110GHINGE ASSY, SIDE GATE, NO.2 RH
66120CHINGE ASSY, SIDE GATE, NO.1 LH
66120EHINGE ASSY, SIDE GATE, NO.2 LH
66151LATCH, SIDE GATE FEMALE, RH
66152LATCH, SIDE GATE FEMALE, LH
66161AHANDLE, SIDE GATE LATCH, RH
66162AHANDLE, SIDE GATE LATCH, LH
66245PROTECTOR, REAR BODY, NO.3 RH
66246PROTECTOR, REAR BODY, NO.3 LH
66287CBRACKET, TAIL GATE CHAIN, RH
66288CBRACKET, TAIL GATE CHAIN, LH
66311HOOK, ROPE
66311EHOOK, ROPE
9163160820
main91631-60820
9326016010
main93260-16010
28 parts on this diagram · 1 diagram in section
