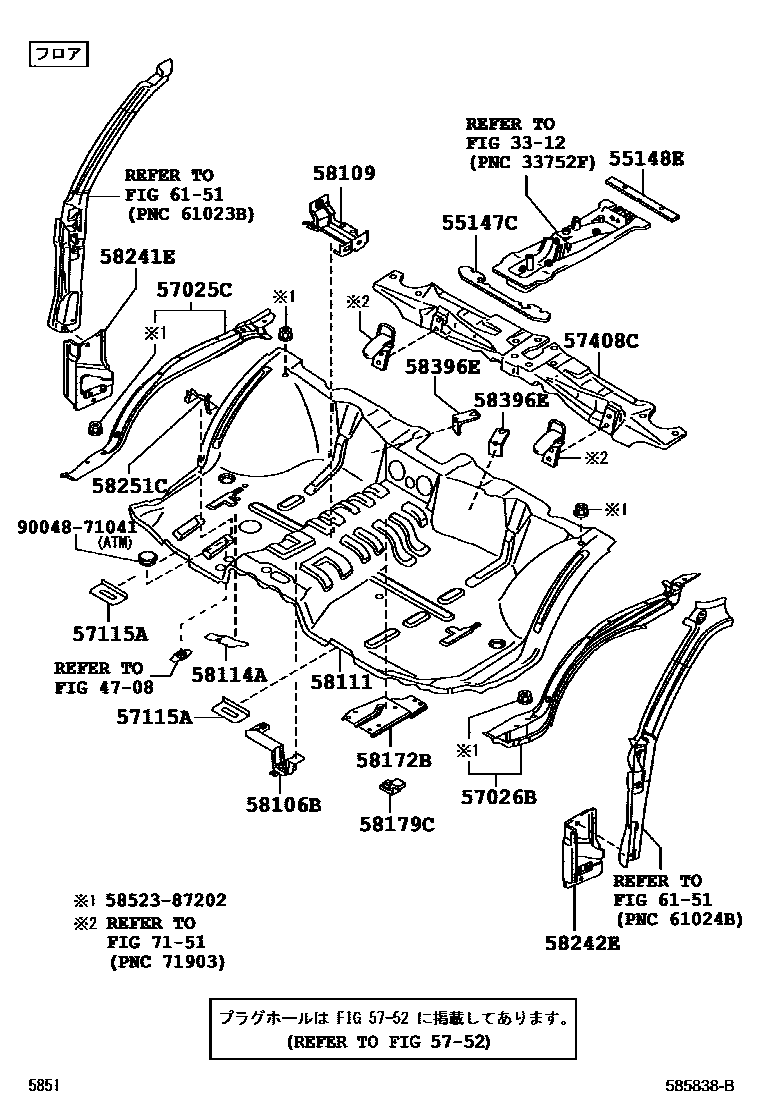

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1��� 0002 1����

3312

4708

55147CCUSHION, ENGINE SERVICE HOLE COVER NO.1

main55147-97501iS201,211201112

55148ECUSHION, ENGINE SERVICE HOLE COVER, NO.2

main55148-97501iS201,211201112

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-97503iS201,211201112-201204

main57025-B5010iS201,211201204

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-97503iS201,211201112-201204

main57026-B5010iS201,211201204

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-97502iS201,211201112

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main58136-97502iS201,211201112-201407

5752

58106BBRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2

main58456-B5010iS201,211201112-201208

sub58456-B5011

main58456-B5011iS201,211201209

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58193-B5010iS201,211201112

58111PAN, FRONT FLOOR

main58111-B5071iS201,211201112-201407

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-97501iS201,211201112

58172BBRACKET, COMPUTER MOUNTING, NO.3

main55387-97501iS201,211201112-201208

sub55387-B5020

main55387-B5020iS201,211201209-201407

58179CBRACKET, CLAMP FLOOR

main47381-87501iS201,211201112-201208

sub47381-B5020

main47381-B5020iS201,211201209

58241EPANEL, FLOOR SIDE, FRONT RH

main58241-87507iS201,211201112

58242EPANEL, FLOOR SIDE, FRONT LH

main58242-87510iS201,211201112

58251CBRACE, FLOOR PANEL, FRONT RH

main51606-97501iS201,211201112

58396EBRACKET, WIRE HARNESS CLAMP

main58396-87503iS201,211201112-201208

sub58396-B5010

main58396-B5010iS201,211201209

6151

7151

5852387202COVER, FRONT SEAT BRACKET

main58523-87202

9004871041

main90048-71041

23 parts on this diagram · 2 diagrams in section
