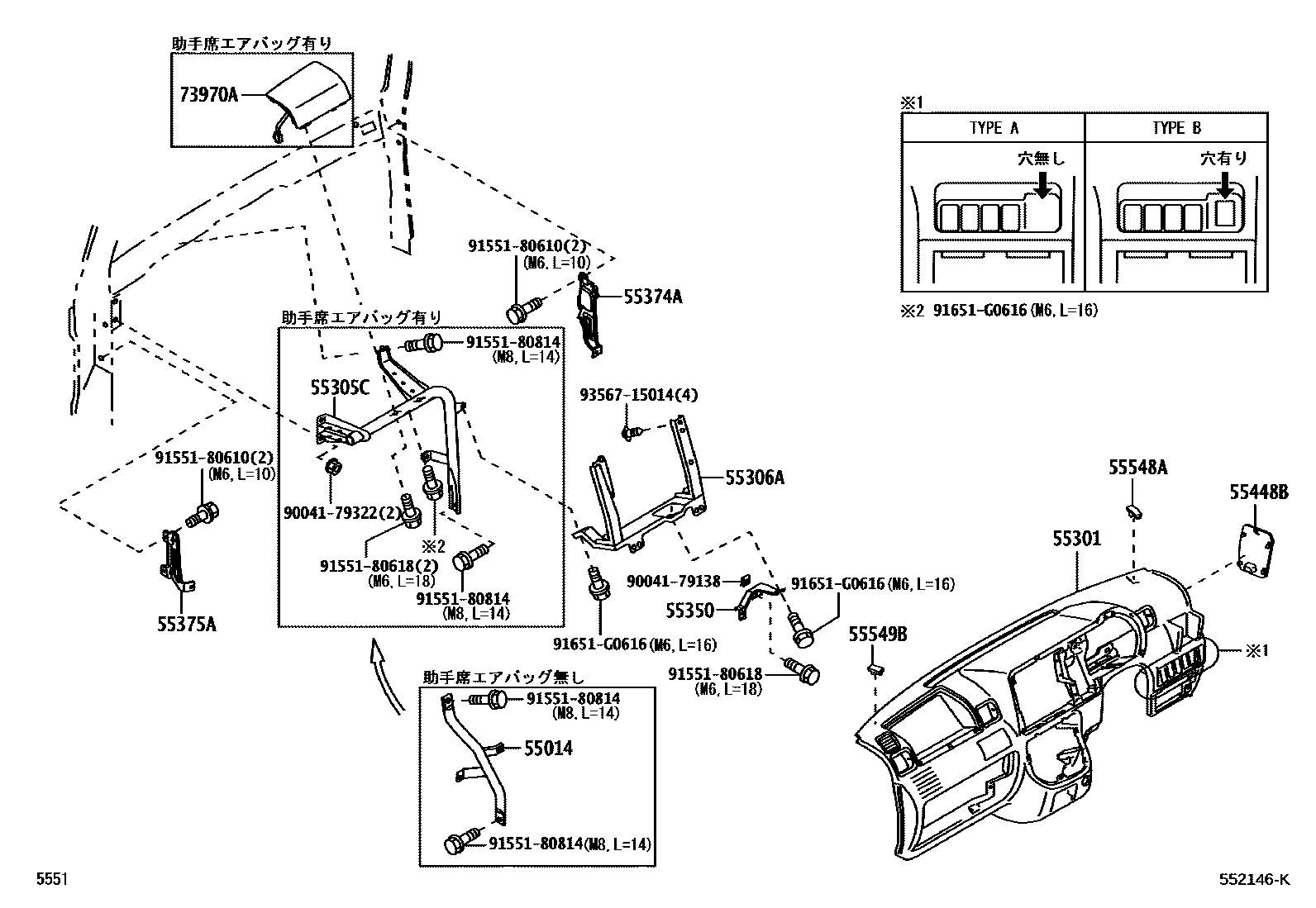

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1������������,��������� 0002 1�������� 0003 1�������� 0004 1�������� 0005 1��������

55014STAY SUB-ASSY, COWL, LH

main55014-B5010iS201,211201112

mainGAITONASHIiS201,211..SPL201112-201407

mainGAITONASHIiS201,211..SPL201112-201407

55301PANEL SUB-ASSY, INSTRUMENT

main55311-B5030-B0iS201,211201112-201407

main55311-B5040-B0iS201,211201112-201407

55305CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL

main55305-B5020iS201,211201112

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-B5010iS201,211201112

55350BRACE ASSY, INSTRUMENT PANEL

main55351-B5040iS201,211201112

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55374-B5010iS201,211201112

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55375-B5010iS201,211201112

55448BCOVER, OIL RESERVOIR TANK, RH

main58106-B5020-B0iS201,211201112

GRAY,TRIM1#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-B5010-B0iS201,211201112

GRAY,TRIM1#

55549BCOVER, INSTRUMENT PANEL HOLE, NO.2

main55549-B5010-B0iS201,211201112

GRAY,TRIM1#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-B5020-B0iS201,211201112

9004179138

main90041-79138

9004179322

main90041-79322

9155180610

main91551-80610

9155180618

main91551-80618

9155180814

main91551-80814

91651G0616

main91651-G0616

9356715014

main93567-15014

18 parts on this diagram · 5 diagrams in section
