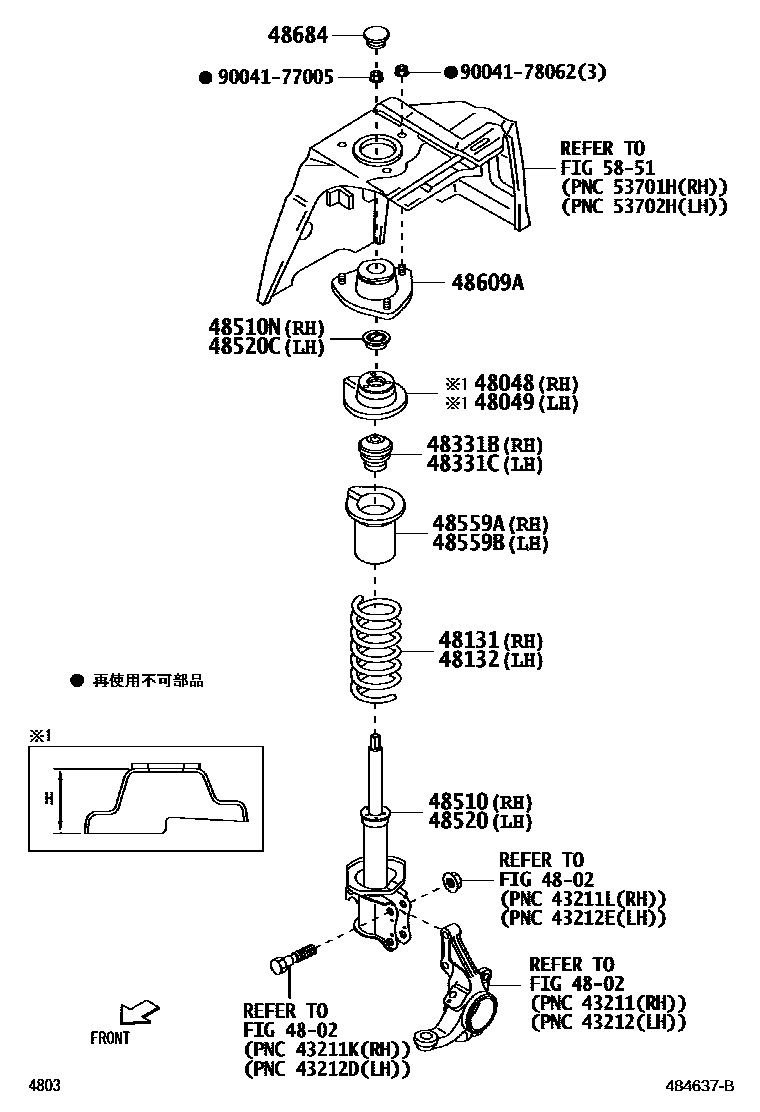

FRONT SPRING & SHOCK ABSORBER

4802

48048SEAT SUB-ASSY, SPRING, RH

main48470-97502iS201,211201112-201407

48049SEAT SUB-ASSY, SPRING, LH

main48470-97503iS201,211201112-201407

48131SPRING, FRONT COIL, RH

main48131-B5090iS201201112

main48131-B5100iS211201112

48132SPRING, FRONT COIL, LH

main48131-B5090iS201201112

main48131-B5100iS211201112

48331BBUMPER, FRONT SPRING, RH

main48331-B5010iS201,211201112

48331CBUMPER, FRONT SPRING, LH

main48331-B5010iS201,211201112

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-97506iS201,211201112-201307

sub48510-B5120

main48510-B5110iS201,211201308-201407

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main48143-87501iS201,211201112-201407

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-97506iS201,211201112-201307

sub48520-B5120

main48520-B5110iS201,211201308-201407

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main48143-87501iS201,211201112-201407

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-87504iS201,211201112

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-87504iS201,211201112

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-87507iS201,211201112

48684COVER, BEARING DUST

main48684-87202iS201,211201112-201309

main48684-B2010iS201,211201310

5851

9004177005

main90041-77005

9004178062

main90041-78062

18 parts on this diagram · 1 diagram in section
