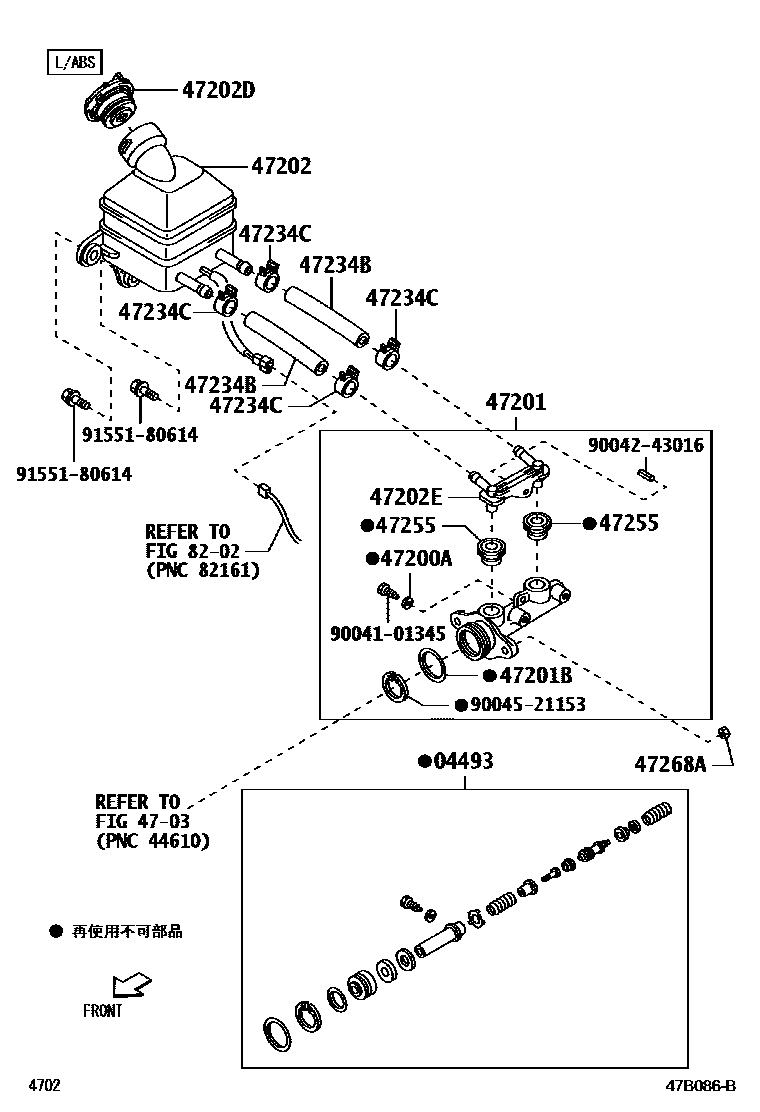

BRAKE MASTER CYLINDER

0001 1L/ABS 0002 1L/ABS 0003 1W/ABS

04493CYLINDER KIT, BRAKE MASTER

main04493-B5010iS201,211201112-201212

4703

47200AGASKET, MASTER CYLINDER

main90044-30234iS201,211201112-201212

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-B5030iS201,211201112-201212

main47201-B5070iS201,211201212-201407

sub47201-B5071

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90043-01352iS201,211201212

main96751-24037iS201,211201112-201212

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-87524iS201,211201112

47202DCAP, RESERVOIR(FOR MASTER CYLINDER RESERVOIR SET)

main47230-87504iS201,211201112

47202EUNION(FOR MASTER CYLINDER RESERVOIR SET)

main90044-05242iS201,211201112-201212

47234RETAINER, RESERVOIR GASKET

main47234-B5020

main47234-B5040

main90044-67246

main47217-97502

47234BTUBE, RESERVOIR, NO.1

main47234-B5020iS201,211201112-201211

main47234-B5040iS201,211201212

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90044-67246iS201,211201112

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-87502iS201,211201112-201212

main47255-B2050iS201,211201212

47268ANUT, BRAKE MASTER CYLINDER

main90041-79124iS201,211201112-201407

8202

9004101345

main90041-01345

9004243016

main90042-43016

9004521153

main90045-21153

9155180614

main91551-80614

18 parts on this diagram · 3 diagrams in section
