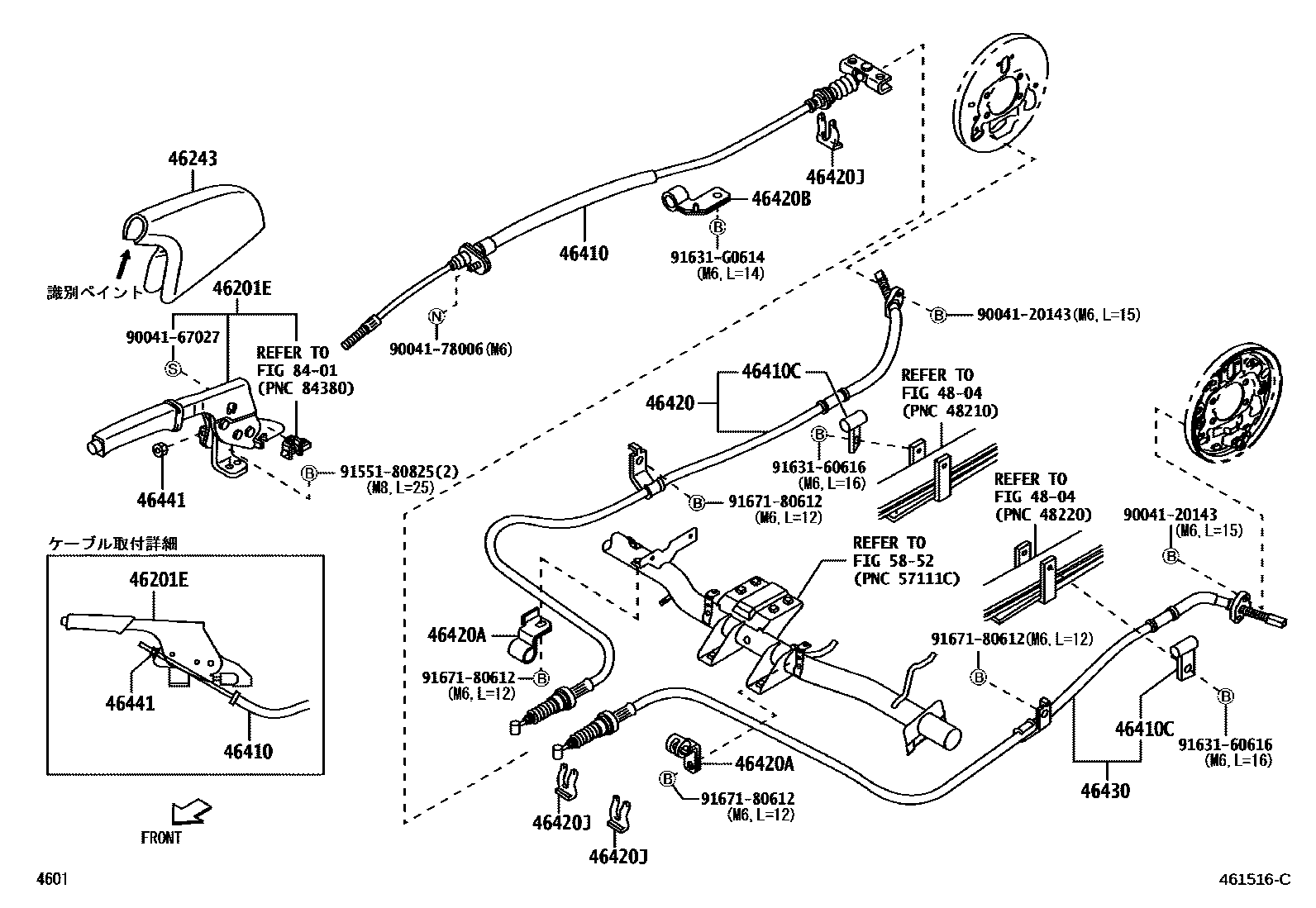

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46210-97502-B0iS201,211201112-201204

GRAY,TRIM1#

sub46210-B5040

main46210-B5040-B0iS201,211201205-201401

GRAY,TRIM1#

sub46210-B5041

main46210-B5041-B0iS201,211201402-201407

GRAY,TRIM1#

sub46210-B5100

46243COVER, PARKING BRAKE LEVER

main46243-97501-B0iS201,211201112-201407

sub46243-B5010

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-B5010iS201,211201112

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-B5010iS201,211201112-201407

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-B5010iS201,211201112

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90044-61755iS201,211201112-201407

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90044-61843iS201,211201112-201407

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90044-65038iS201,211201112

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-B5010iS201,211201112

46441NUT, WIRE ADJUSTING, NO.1

main94185-60600iS201,211201112-201407

4804

5852

8401

9004120143

main90041-20143

9004167027

main90041-67027

9004178006

main90041-78006

9155180825

main91551-80825

9163160616

main91631-60616

91631G0614

main91631-G0614

9167180612

main91671-80612

20 parts on this diagram · 1 diagram in section
