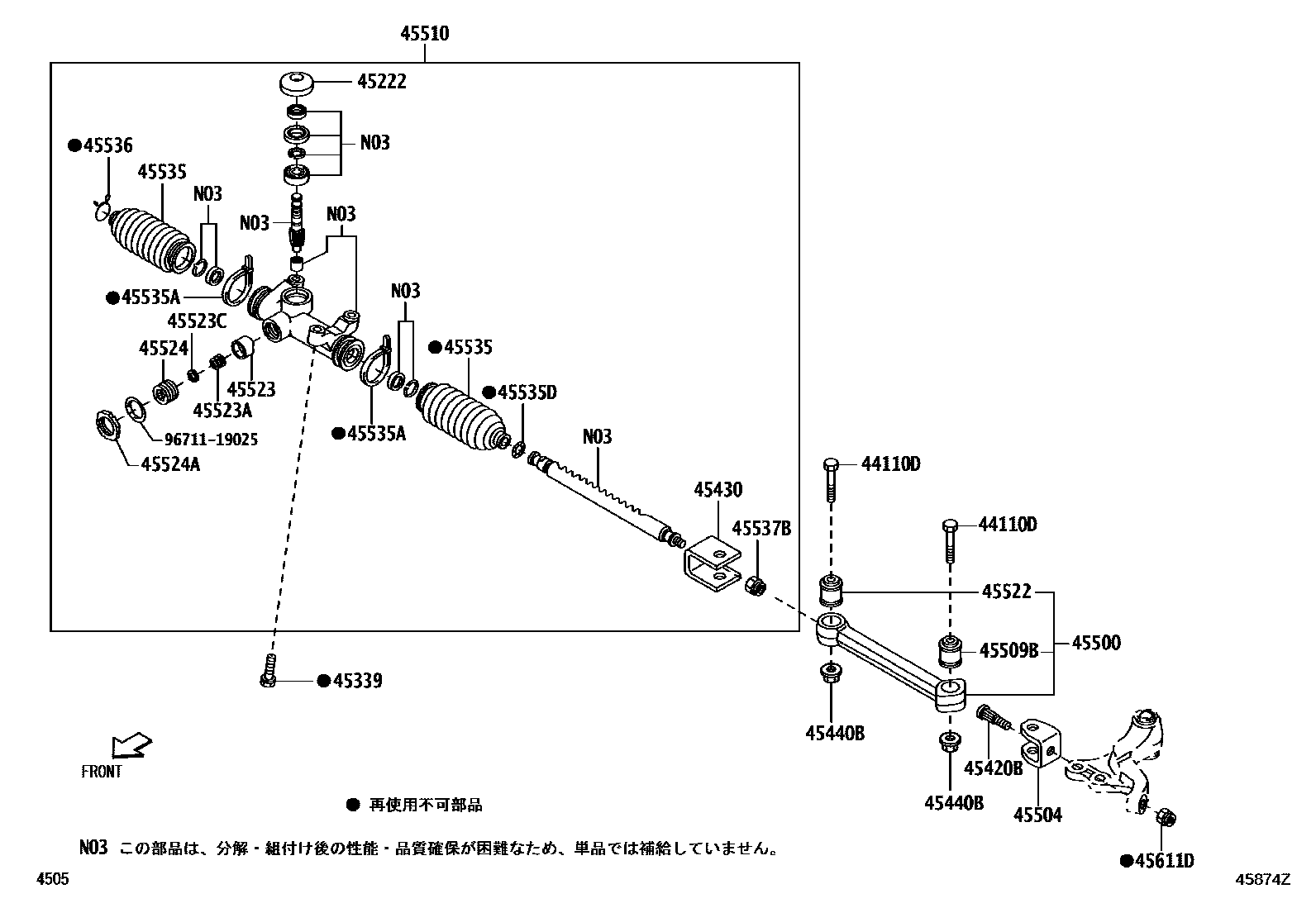

FRONT STEERING GEAR & LINK

0001 1 0002 1

44110DBOLT(FOR POWER STEERING GEAR)

main90041-01649iS201,211201112-201407

45222COVER, STEERING GEAR DUST

main45222-97504iS201,211201112

45339BOLT, STEERING GEAR HOUSING

main90041-05165iS201,211201112-201407

45420ARM ASSY, STEERING CENTER

main45402-B5010iS201,211201112

45420BBOLT(FOR STEERING CENTER ARM)

main45445-97501iS201,211201112

45430END ASSY, STEERING DRAG LINK(FOR PITMAN ARM)

main45442-87503iS201,211201112

45440BNUT, CASTLE(FOR STEERING DRAG LINK)

main90041-70349iS201,211201112-201407

45500LINK ASSY, STEERING

main45054-97502iS201,211201112

45504END SUB-ASSY, STEERING RACK, NO.2

main45443-97501iS201,211201112

45509BBUSH(FOR STEERING PINION)

main45454-87501iS201,211201112

45510GEAR ASSY, STEERING

main45510-B5010iS201,211201112

45522BUSH, STEERING RACK

main90043-85163iS201,211201112

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-B1030iS201,211201112

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90045-01256iS201,211201112

45523CSPACER(FOR RACK GUIDE)

main90042-08036iS201,211201112-201407

45524CAP, STEERING RACK GUIDE SPRING

main45524-87503iS201,211201112

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90041-70277iS201,211201112-201407

45535BOOT, STEERING RACK, NO.1

main45535-87509iS201,211201112

45535ACLAMP(FOR STEERING RACK BOOT)

main45536-87205iS201,211201112-201211

main45538-B2020iS201,211201212

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45536-87503iS201,211201112

45536BOOT, STEERING RACK, NO.2

main45537-97501iS201,211201112

45537BNUT, RACK END LOCK

main90041-77019iS201,211201112-201407

45611DNUT(FOR STEERING KNUCKLE ARM)

main90041-78007iS201,211201112-201407

9671119025

main96711-19025

24 parts on this diagram · 2 diagrams in section
