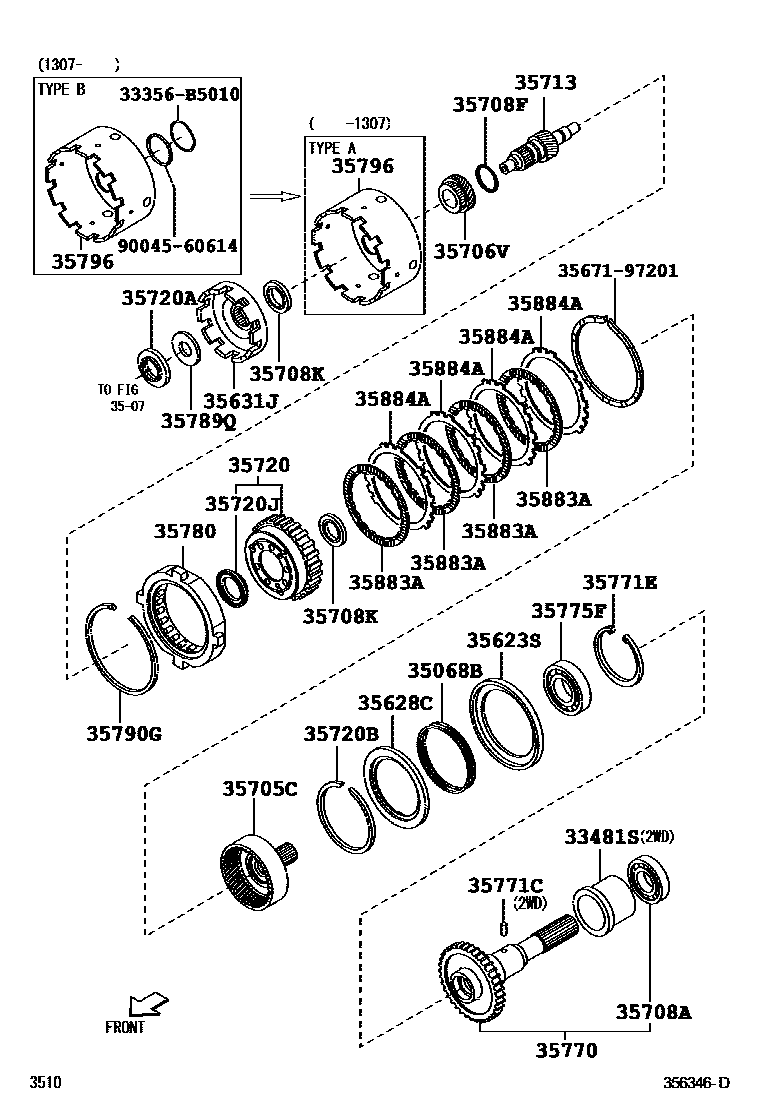

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

33481SGEAR, SPEEDOMETER DRIVE (ATM)

main33481-87534iS201..ATM¥1,230201112

35068BSPRING, 1ST & REVERSE BRAKE RITURN

main35068-97201iS201,211..ATM¥900201112

35623SPISTON,1ST & REVERSE BRAKE

main35623-97204iS201,211..ATM¥3,250201112

35628CSEAT, 1ST & REVERSE BRAKE PISTON RETURN SPRING

main35628-97201iS201,211..ATM¥560201112

35631JHUB, FORWARD CLUTCH, NO.1

main35631-87202iS201,211..ATM¥7,900201112

35705CSHAFT SUB-ASSY, PLANETARY OUTPUT

main35705-97203iS201,211..ATM¥10,400201112

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-97202iS201,211..ATM¥7,100201112

35708ABEARING, RADIAL BALL (FOR INTERMEDIATE SHAFT FRONT)

main97103-06905iS211..ATM201112

main97133-06905iS201..ATM201112

35708FBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)

main90043-74041iS201,211..ATM¥1,170201112

35708KBEARING, NEEDLE ROLLER(FOR INTERMEDIATE SHAFT)

main90043-74034iS201,211..ATM¥950201112

35713SHAFT, INTERMEDIATE

main35713-97203iS201,211..ATM¥5,700201112

35720GEAR ASSY, FRONT PLANETARY

main35720-B5020iS201,211..ATM¥20,700201112-201307

sub35720-B5060¥27,900

main35720-B5060iS201,211..ATM¥27,900201307

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90043-74014iS201,211..ATM¥950201112

35720BRING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)

main90045-20226iS201,211..ATM¥340201112

35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)

main90043-74014iS201,211..ATM¥950201112

35770SHAFT ASSY, OUTPUT

main35770-B9020iS201..ATM¥23,700201112

main35770-B9030iS211..ATM¥20,700201112

35771CROLLER BEARING, OUTPUT SHAFT

main90043-61037iS201..ATM¥160201112

35771ERING, HOLE SNAP (FOR OUTPUT SHAFT, NO.2)

main90045-21133iS201,211..ATM¥350201112

35775FBEARING, RADIAL BOLL

main97103-06007iS201,211..ATM¥1,120201112

35780CLUTCH ASSY, 1 WAY NO.2

main35780-87202iS201,211..ATM¥11,800201112

35789QRACE, THRUST BEARING (FOR INTERMEDIATE SHAFT)

main35789-87207iS201,211..ATM¥690201112

35790GHOLE SNAP RING (FOR 1WAY CLUTCH)

main90045-21119iS201,211..ATM¥920201112

main90045-21120iS201,211..ATM¥920201112

main90045-21121iS201,211..ATM¥920201112

main90045-21123iS201,211..ATM¥920201112

35796DRUM, SECOUND BRAKE

main35796-97204iS201,211..ATM¥10,000201112-201307

sub35796-B5020¥12,300

sub33356-B5010¥220

sub90045-60614¥140

main35796-B5020iS201,211..ATM¥12,300201307

35883ADISC, BRAKE

main35883-B2030iS201,211..ATM¥1,110201112

35884APLATE,BRAKE

main35884-97203iS201,211..ATM¥2,480201112

33356B5010SPRING, WAVE

main33356-B5010¥220

3567197201PLATE, BRAKE CUSHION

main35671-97201¥1,650

9004560614

main90045-60614¥140

28 parts on this diagram · 1 diagram in section
