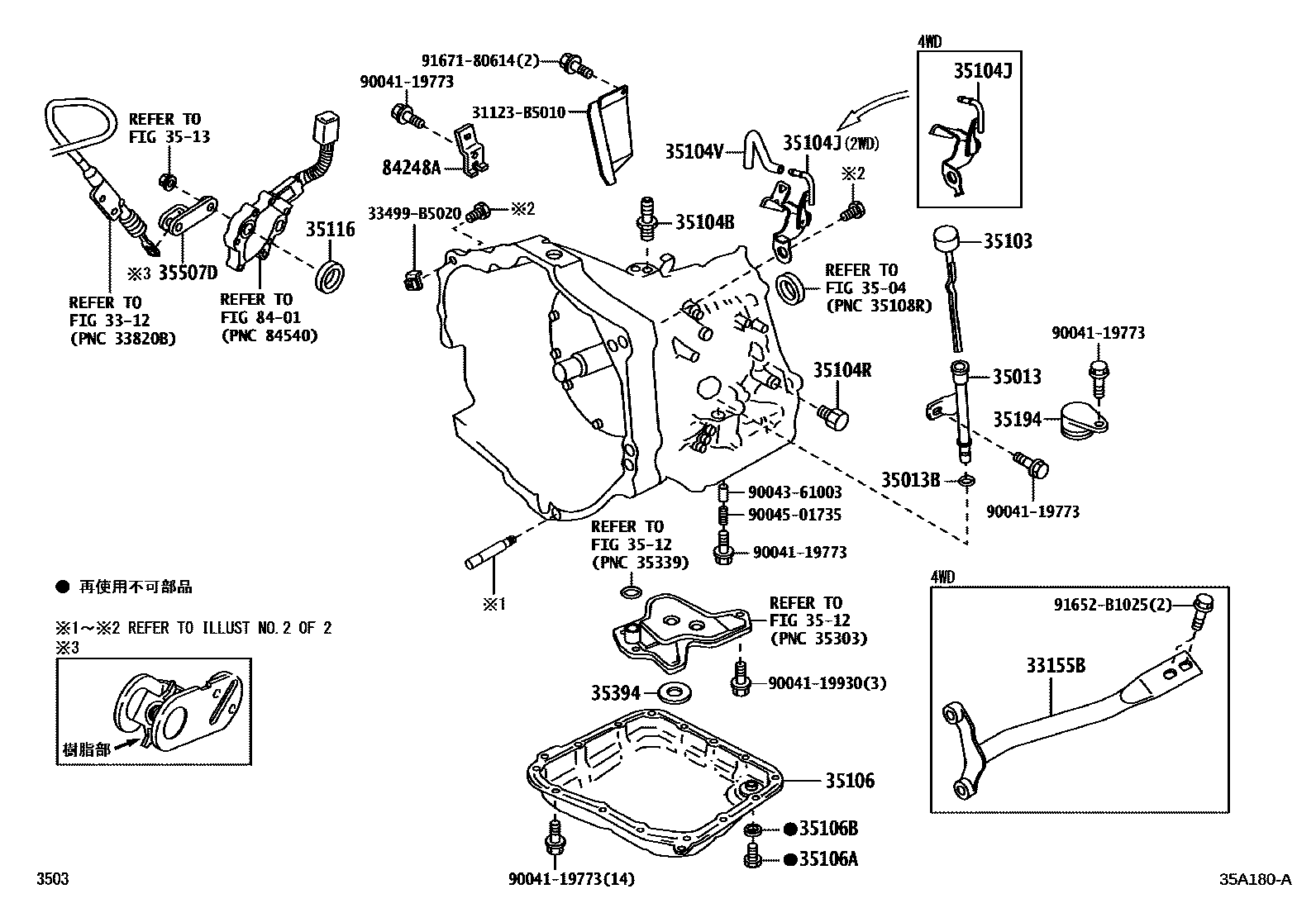

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1

3312

33155BSTIFFENER, POWER TRAIN

main36119-B5020iS211..ATM201112

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-87505iS201,211..ATM201112-201202

sub35013-B5050

main35013-B5050iS201,211..ATM201203

35013BRING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90043-01193iS201,211..ATM201112

3504

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-87507iS201,211..ATM201112

35104BPLUG, BREATHER, NO.1 (ATM)

main90049-15053iS201,211..ATM201112

35104JBRACKET, BREATHER PLUG HOSE

main58107-B5051iS201..ATM201112-201306

sub58107-B5052

main58107-B5052iS201..ATM201307

main58107-B5061iS211..ATM201112-201306

sub58107-B5062

main58107-B5062iS211..ATM201307

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90043-45040iS201,211..ATM201112

35104VHOSE (FOR BREATHER PLUG)

main35121-B5010iS201,211..ATM201112

sub90044-44091

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-97503iS201,211..ATM201112

35106APLUG SUB-ASSY, DRAIN (ATM)

main90043-41041iS201,211..ATM201112

35106BGASKET, DRAIN PLUG (ATM)

main90044-30281iS201,211..ATM201112

35116SEAL, TRANSMISSION CASE DUST

main90043-11256iS201,211..ATM201112

3512

3513

35194COVER, TRANSMISSION CASE DUST

main35194-87501iS201,211..ATM201112

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main33449-B2010iS201,211..ATM201112

35507DLEVER, TRANSMISSION CONTROL SHAFT

main35507-97502iS201,211..ATM201112-201407

8401

84248ACLAMP, SWITCH HARNESS

main84248-87501iS201,211..ATM201112

31123B5010COVER, CLUTCH HOUSING, NO.2

main31123-B5010

33499B5020

main33499-B5020

9004119773

main90041-19773

9004119930

main90041-19930

9004361003

main90043-61003

9004501735

main90045-01735

91652B1025

main91652-B1025

9167180614

main91671-80614

29 parts on this diagram · 2 diagrams in section
