EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17400-B2110iKFVE..S201,211201112-201212

sub17400-B9320

main17400-B5160iKFVE..S201,211201212-201310

sub17400-B5220

main17400-B5220iKFVE..S201,211201310-201407

sub17400-B9330

17410KSPRING, EXHAUST PIPE

main17152-97503iKFVE..S201,211201112-201407

1741APIPE SET, EXHAUST

main17400-B9320iKFVE..S201,211201112-201212

main17400-B9330iKFVE..S201,211201212-201407

17451GASKET, EXHAUST PIPE

main17451-B5020iKFVE..S201,211201112-201407

17561DSUPPORT, EXHAUST PIPE, NO.1

main17567-B2010iKFVE..S201,211201112-201407

17562SUPPORT, EXHAUST PIPE, NO.2

main17567-87208iKFVE..S201,211201112-201407

17569CBOLT, EXHAUST PIPE SUPPORT

main17569-97501iKFVE..S201,211201112-201407

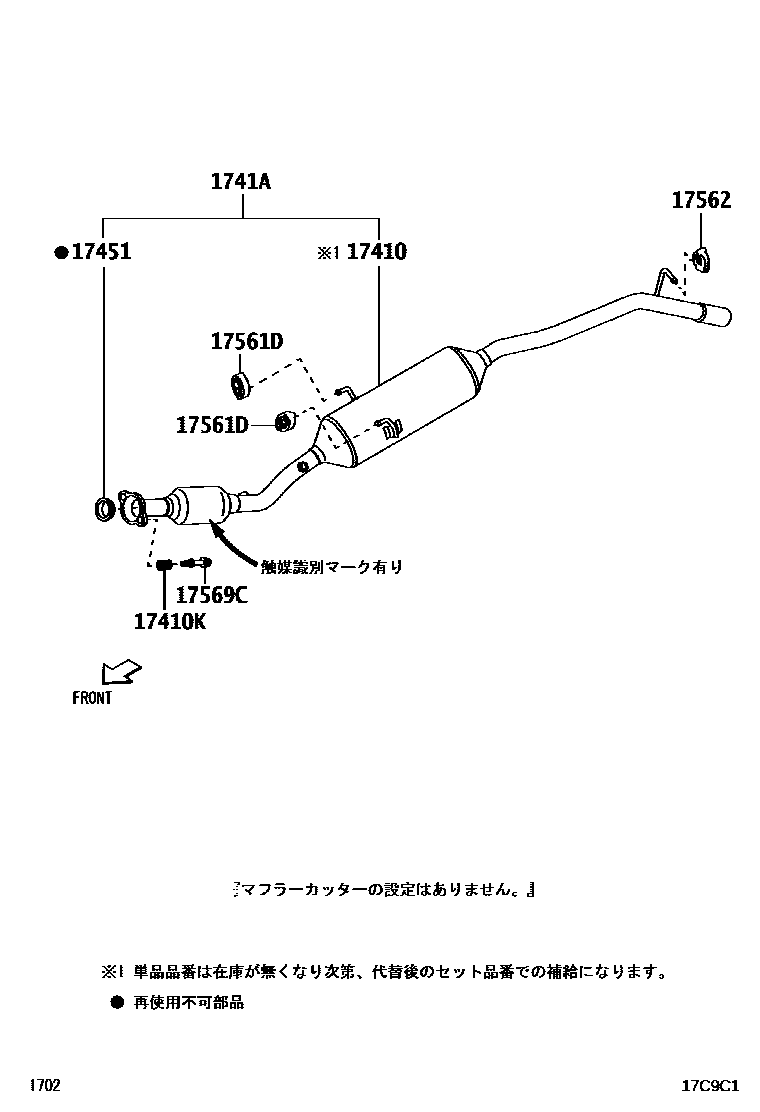

7 parts on this diagram · 1 diagram in section
