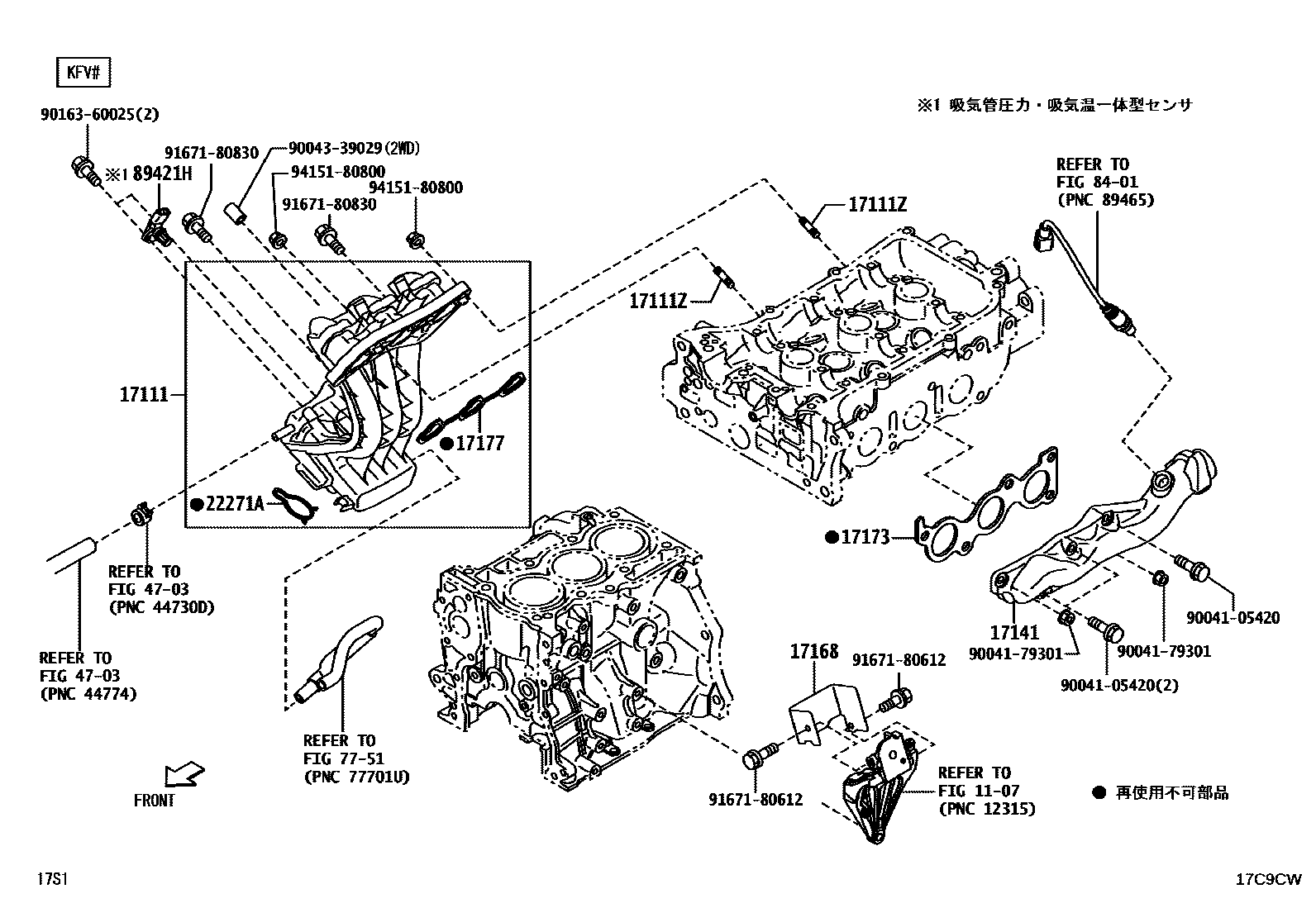

MANIFOLD

1107

17111MANIFOLD, INTAKE

main17120-B2050iKFVE..S201,211201112-201407

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90041-26003iKFVE..S201,211201112-201407

sub90041-26012

17141MANIFOLD, EXHAUST

main17141-B2040iKFVE..S201,211201112

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-B2010iKFVE..S201,211201112

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-B2021iKFVE..S201,211201112

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-B2010iKFVE..S201,211201112

22271AGASKET, THROTTLE BODY

main22271-97501iKFVE..S201,211201112-201407

4703

7751

8401

89421HSENSOR, VACUUM

main89421-B2010iS201,211201112-201306

sub89421-B2040

main89421-B2040iS201,211201307

9004105420

main90041-05420

9004179301

main90041-79301

9004339029

main90043-39029

9016360025

main90163-60025

9167180612

main91671-80612

9167180830

main91671-80830

9415180800

main94151-80800

19 parts on this diagram · 1 diagram in section
