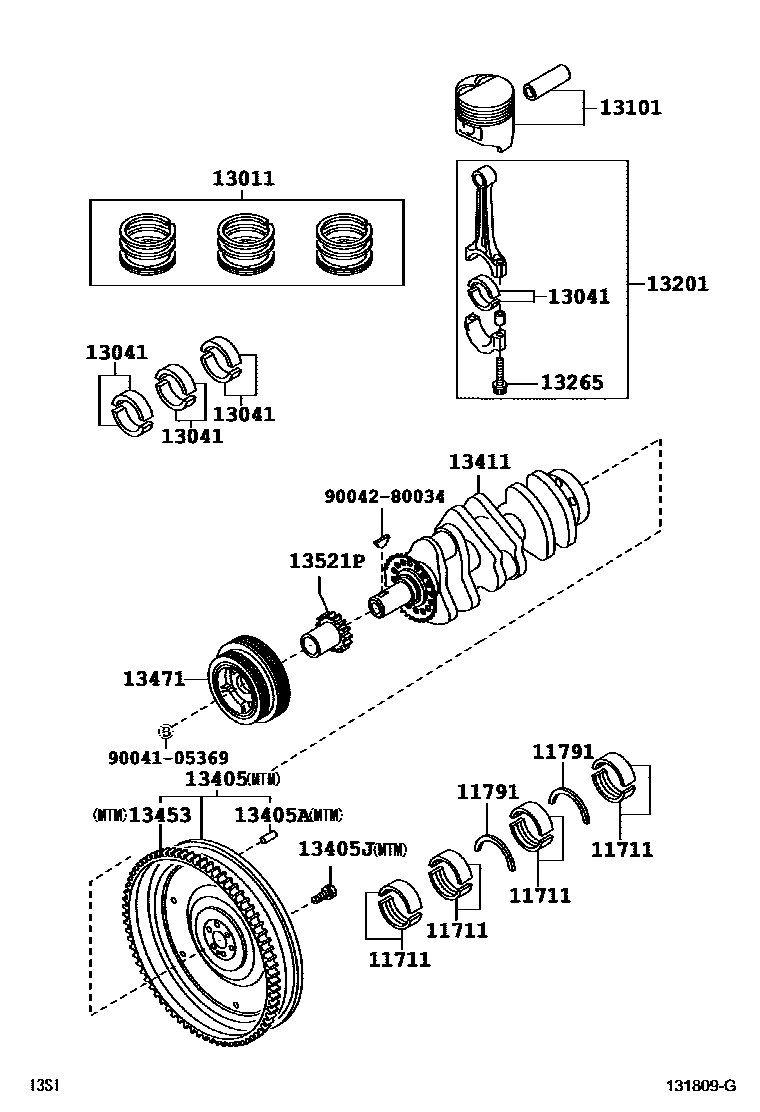

CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-B2011-02iKFVE..S201,211201112-201407

main11701-B2011-03iKFVE..S201,211201112-201407

main11701-B2011-04iKFVE..S201,211201112-201407

main11701-B2011-05iKFVE..S201,211201112-201407

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-B2010iKFVE..S201,211201112-201409

13011RING SET, PISTON

main13011-B2041iKFVE..S201,211201112-201307

sub13011-B2043

main13011-B2043iKFVE..S201,211201307-201409

sub13011-B2170

13041BEARING, CONNECTING ROD

main13041-B2010-01iKFVE..S201,211201112-201407

main13041-B2010-02iKFVE..S201,211201112-201407

main13041-B2010-03iKFVE..S201,211201112-201407

13101PISTON SUB-ASSY, W/PIN

main13101-B2090iKFVE..S201,211201112-201307

sub13101-B2092

main13101-B2091iKFVE..S201,211201307-201409

13201ROD SUB-ASSY, CONNECTING

main13201-B9060iKFVE..S201,211201112-201409

13265BOLT, CONNECTING ROD

main13265-B9020iKFVE..S201,211201112-201407

13405FLYWHEEL SUB-ASSY

main13405-B2040iKFVE..S201,211..MTM201112-201409

sub13405-B5010

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90042-50152iKFVE..S201,211..MTM201112-201409

13405JBOLT(FOR FLYWHEEL)

main90048-01037iKFVE..S201,211..MTM201112-201407

13411CRANKSHAFT

main13401-B2010iKFVE..S201,211201112-201409

sub13401-B2050

13453GEAR, FLYWHEEL RING

main13453-B2050iKFVE..S201,211..MTM201112-201409

sub13453-B5010

13471PULLEY, CRANKSHAFT

main13470-B2020iKFVE..S201,211201112-201409

13521PPULLEY, CRANKSHAFT TIMING

main13521-B2010iKFVE..S201,211201112-201409

9004105369

main90041-05369

9004280034

main90042-80034

16 parts on this diagram · 1 diagram in section
