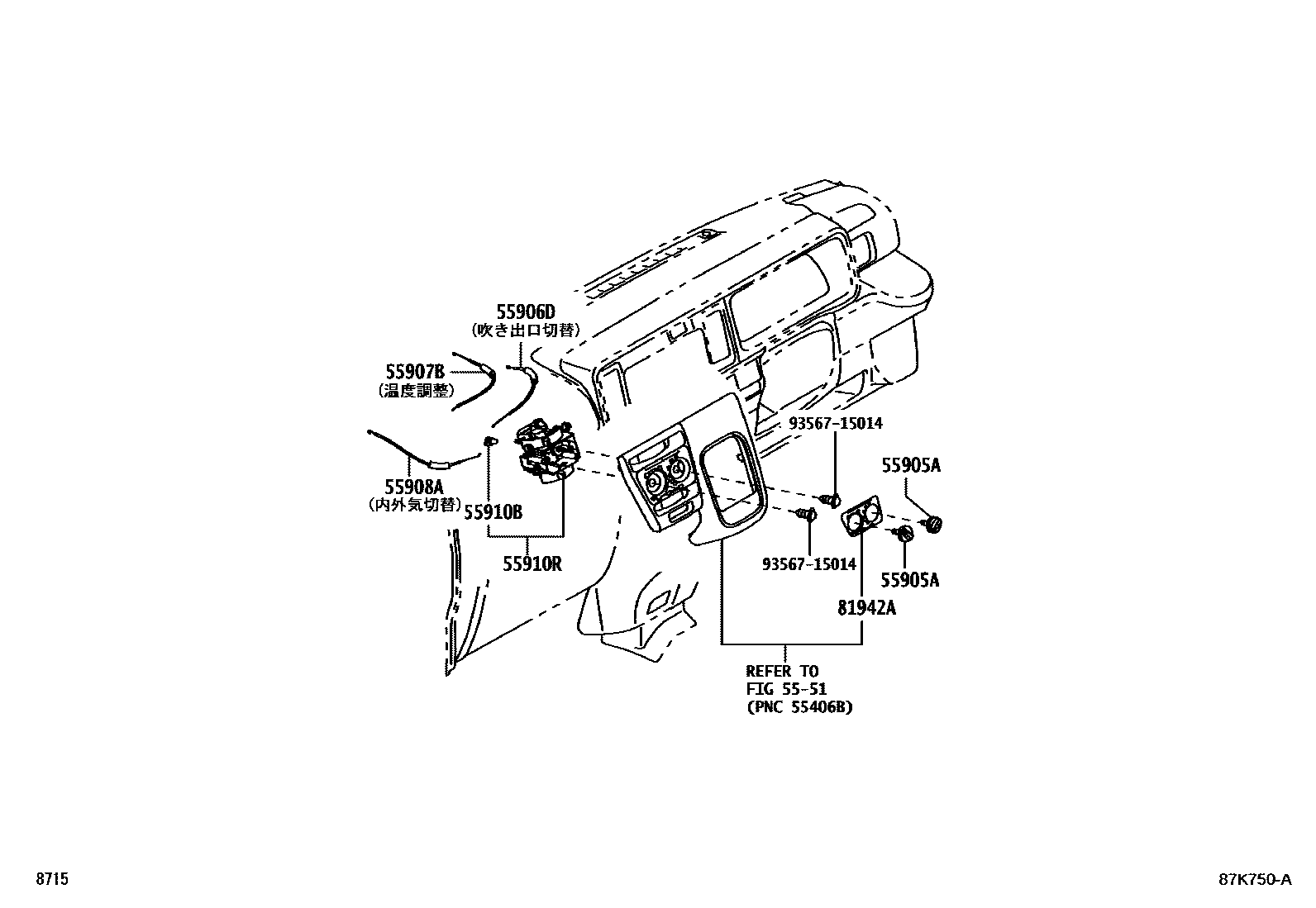

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1���������� 0002 1������ 0003 1���

5551

55905AKNOB, HEATER CONTROL

main55905-B5010×2iS700,710202112

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-B5030iS700,710202112

55907BCABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL

main55907-B5030iS700,710202112

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-B5030iS700,710202112

55910BBULB, HEATER CONTROL

main81936-B2040iS700,710202112

55910RCONTROL ASSY, HEATER

main55910-B5100iS700,710202112

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-B1380iS700,710202112

9356715014

main93567-15014

9 parts on this diagram · 3 diagrams in section
