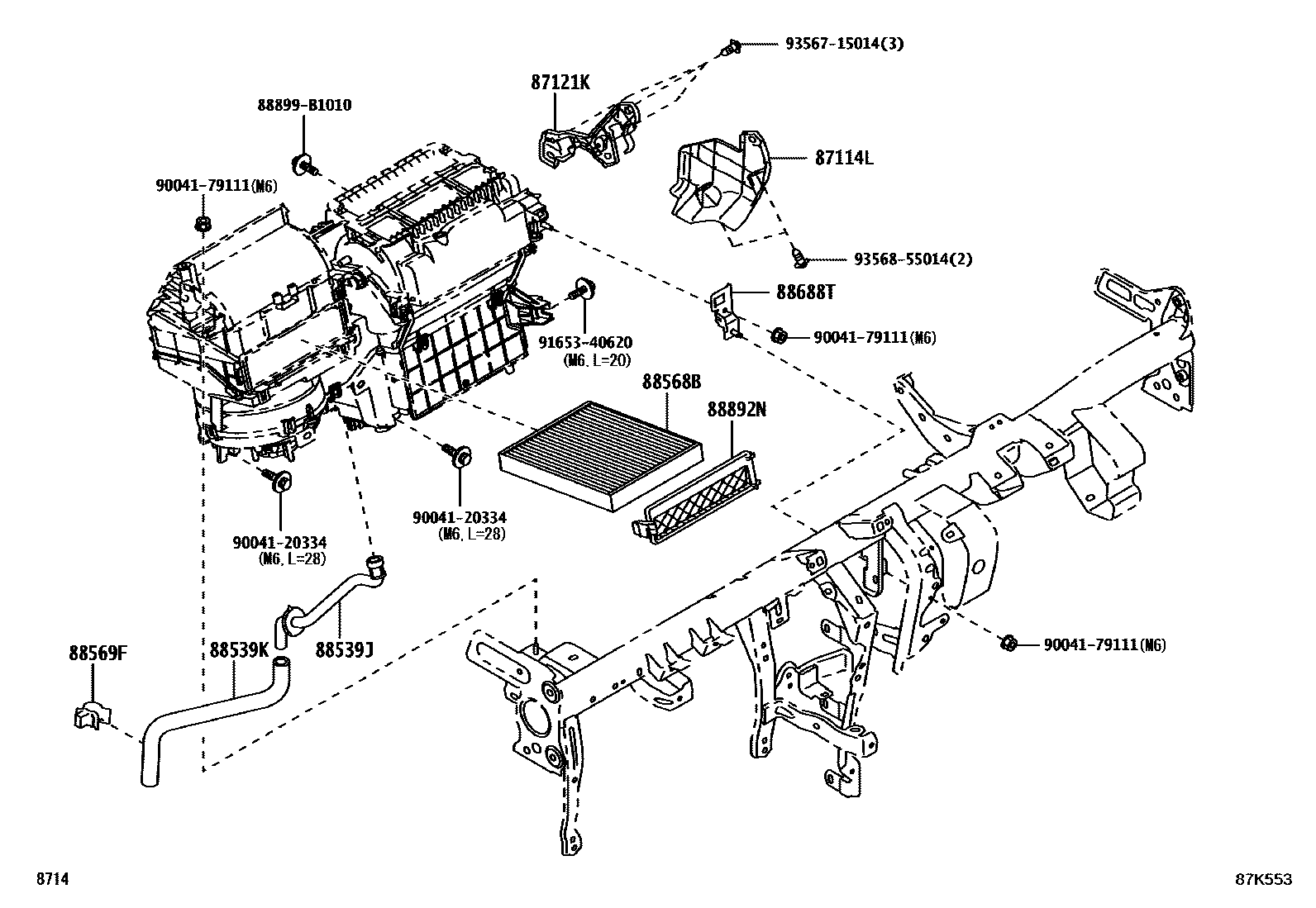

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1����ASSY 0002 1���������

87114LCOVER, HEATER, NO.2

main87114-B5120iS700,710202112

87121KBRACKET, HEATER

main87121-B5010iS700,710202112

88539JHOSE, DRAIN COOLER

main88539-B5050iS700,710202112

88539KHOSE, DRAIN COOLER

main88539-B5060iS700,710202112

88568BFILTER, AIR

main88568-B2030iS700,710..DLX,SPL202112

main88568-B2070iS700,710..CR202112

88569FCLAMP

main90044-64886iS700,710202112

88688TBRACKET (FOR COOL BOX)

main88688-B5050iS700,710202112

88892NCOVER, COOLER, NO.2

main88892-B2080iS700,710202112

88899B1010COVER, EVAPORATOR

main88899-B1010

9004120334

main90041-20334

9004179111

main90041-79111

9165340620

main91653-40620

9356715014

main93567-15014

9356855014

main93568-55014

14 parts on this diagram · 2 diagrams in section
