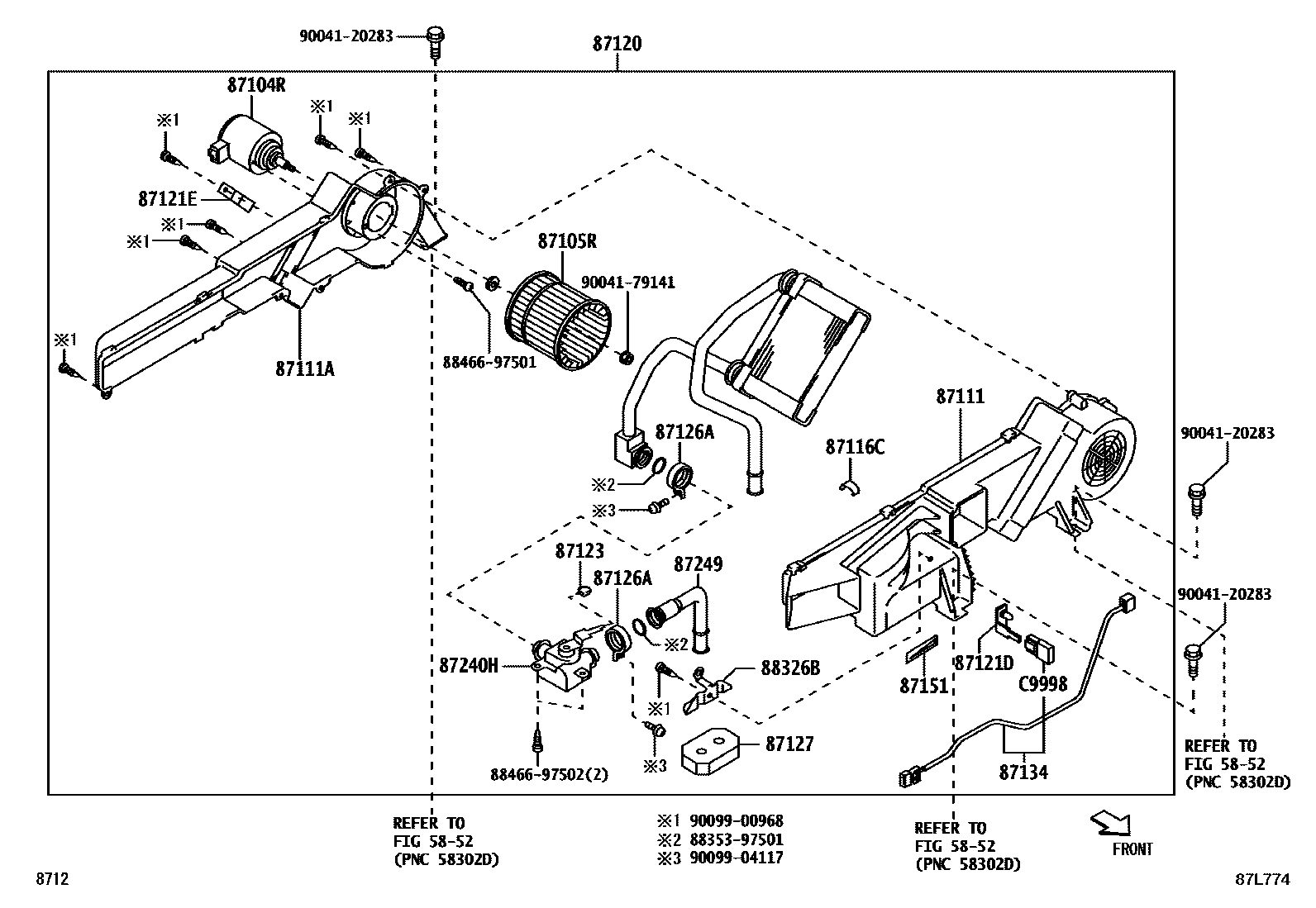

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

5852

87104RMOTOR SUB-ASSY, REAR HEATER BLOWER

main87104-97501iS710202112

87105RFAN SUB-ASSY, REAR HEATER BLOWER

main87105-97501iS710202112

87111CASE, HEATER

main87311-97505iS710202112

87111ACASE, HEATER

main87311-97506iS710202112

87116CSPRING, HOLDING (FOR HEATER BLOWER)

main87116-87501iS710202112

87120HEATER ASSY, REAR

main87110-B5042iS710202112

87121DBRACKET, HEATER

main88688-97516iS710202112

87121EBRACKET, HEATER

main88688-97508iS710202112

87123KNOB, HEATER

main55905-97501iS710202112

87126ACLAMP, HEATER CONTROL

main87124-97501iS710202112

87127PACKING, HEATER AIR DAMPER

main87127-97501iS710202112

87134WIRE, HEATER BLOWER

main88605-B5060iS710202112

87151PLATE, DAMPER

main55519-97503iS710202112

87240HVALVE ASSY, WATER UNIT

main87240-97501iS710202112

87249PIPE, WATER

main87248-97501iS710202112

88326BPLATE, COVER

main87114-97502iS710202112

C9998FUSE

main82606-B0010iS710202112

8835397501SEAL, COMPRESSOR TIP, NO.1

main88353-97501

8846697501

main88466-97501

8846697502

main88466-97502

9004120283

main90041-20283

9004179141

main90041-79141

9009900968

main90099-00968

9009904117

main90099-04117

25 parts on this diagram · 1 diagram in section
